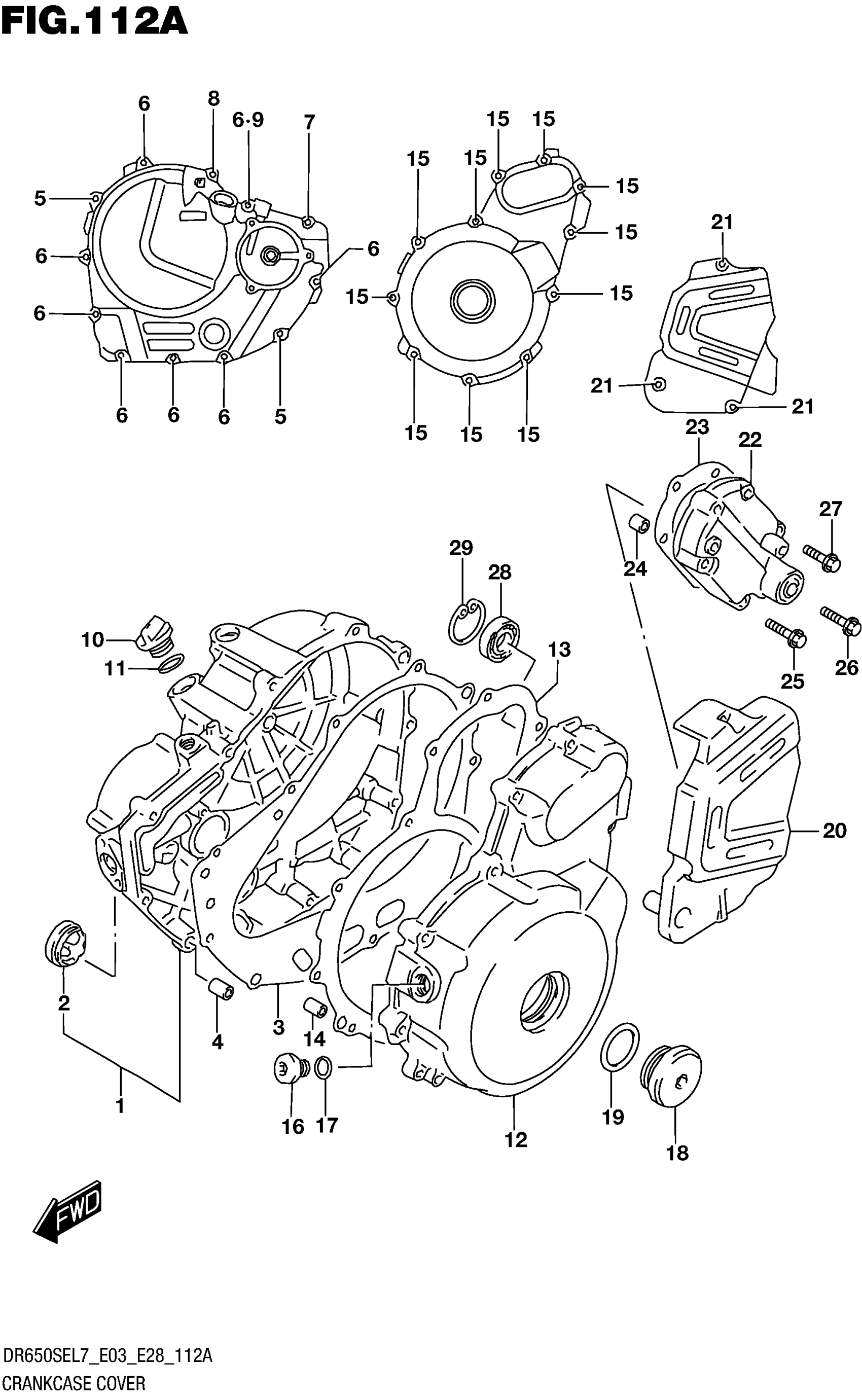

Suzuki DR650SEL7 (2017) CRANKCASE COVER Diagram

#

Description
Price

1

COVER,CLUTCH

11340-32E00

$375.68

2

.LENS, OIL LEVEL

11971-33210

$17.41

3

GASKET, CLUTCH COVER

11482-32E00

$20.17

4

PIN

04211-09149

$1.70

5

BOLT

01547-0645A

$2.53

6

BOLT

01547-0635A

$2.38

7

BOLT

01547-0630A

$2.38

8

BOLT

01547-0625A

$2.09

9

GASKET (5.8X13X1.2)

09168-06023

$2.09

10

PLUG

09259-20019

$10.92

11

O RING (D:3.1,ID:16.8)

09280-17003

$1.70

12

COVER,MAGNETO

11351-32E01

$304.95

13

GASKET

11483-32E00

$17.70

14

PIN

04211-09149

$1.70

15

BOLT

01547-0630A

$2.38

16

PLUG

09248-14011

$2.81

17

GASKET (13.8X18.8X4.8)

09168-14002

$2.83

18

PLUG (SILVER)

09259-36016-20H

$12.83

19

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.31

20

COVER,ENG SPROCKET

11361-32E00

$102.83

21

BOLT

01547-0635A

$2.38

22

COVER,GEAR SHF

11371-12D30

$98.00

23

GASKET

11485-12D01

$5.58

24

PIN

04211-09149

$1.70

25

BOLT

01547-0635A

$2.38

26

BOLT

01547-0630A

$2.38

27

BOLT

01547-0620A

$2.10

28

BEARING (12X28X8)

09262-12001

$17.40

29

CIRCLIP

08331-41289

$2.92
