2016 Suzuki DR650SEL6 Wiring Harness Diagram

← All diagrams

Find the part on the Wiring Harness diagram for your 2016 Suzuki DR650SEL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

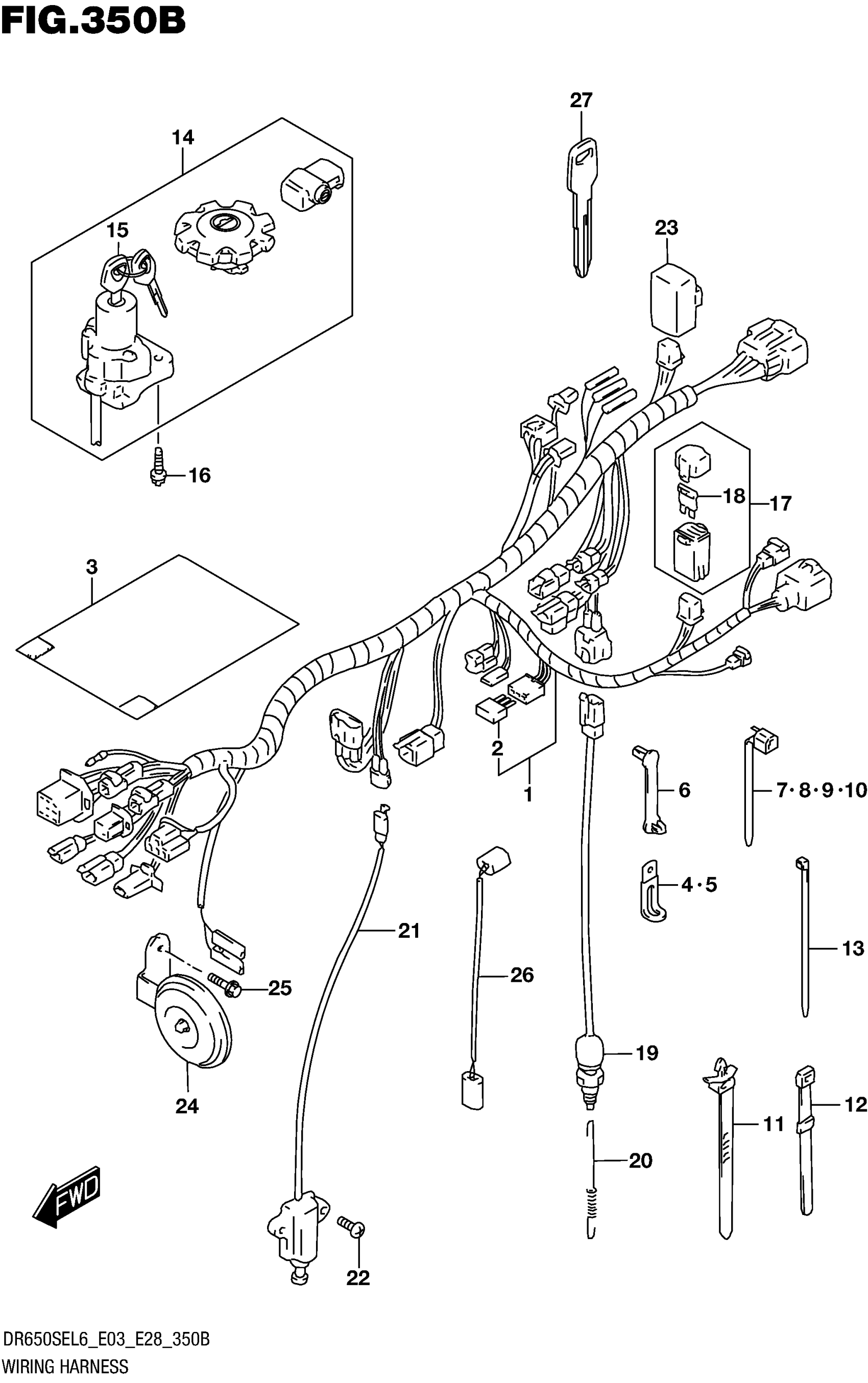

2016 Suzuki DR650SEL6 Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS,WIRING

36610-32E30

1
Out of stock

2

.DIODE

36611-38A10

1
Out of stock

4

CLAMP (L:45)

09404-06429

2
Out of stock

5

1

$2.88

In stock

6

CLAMP (L:33)

09407-03401

5
Out of stock

7

CLAMP (L:95)

09407-11401

3
Out of stock

8

CLAMP (L:125)

09407-14403

4
Out of stock

9

CLAMP (L:165)

09407-18402

5
Out of stock

10

CLAMP (L:235)

09407-25401

1
Out of stock

11

CLAMP (L:90)

09407-11402

1
Out of stock

12

CLAMP (L:120)

09407-12402

2
Out of stock

13

CLAMP (L:100)

09407-10404

1
Out of stock

14

LOCK SET This part replaces 37000-04811.

37000-04814

1
Out of stock

15

.LOCK ASSY,STEERING This part replaces 37100-04F00.

37100-04F01

1
Out of stock

16

BOLT (8X20)

09139-08016

2
Out of stock

17

BOX ASSY,FUSE

36740-32E00

1
Out of stock

18

.FUSE (10A)

09481-10101

2
Out of stock

19

SWITCH ASSY,STOP LAMP

37740-32E00

1
Out of stock

20

SPRING

09443-06016

1
Out of stock

21

SWITCH ASSY,SID This part replaces 37840-44X50.

37840-44X52

1
Out of stock

22

.SCREW

02112-0616B

2
Out of stock

23

RELAY ASSY, SIDE STAND

38740-24X50

1
Out of stock

24

HORN ASSY

38500-32E00

1
Out of stock

25

BOLT

01550-0612B

1
Out of stock

26

WIRE,THROTTLE SENSOR

36851-32E00

1
Out of stock

27

KEY, BLANK | OPT

37146-33E00

1
Out of stock
