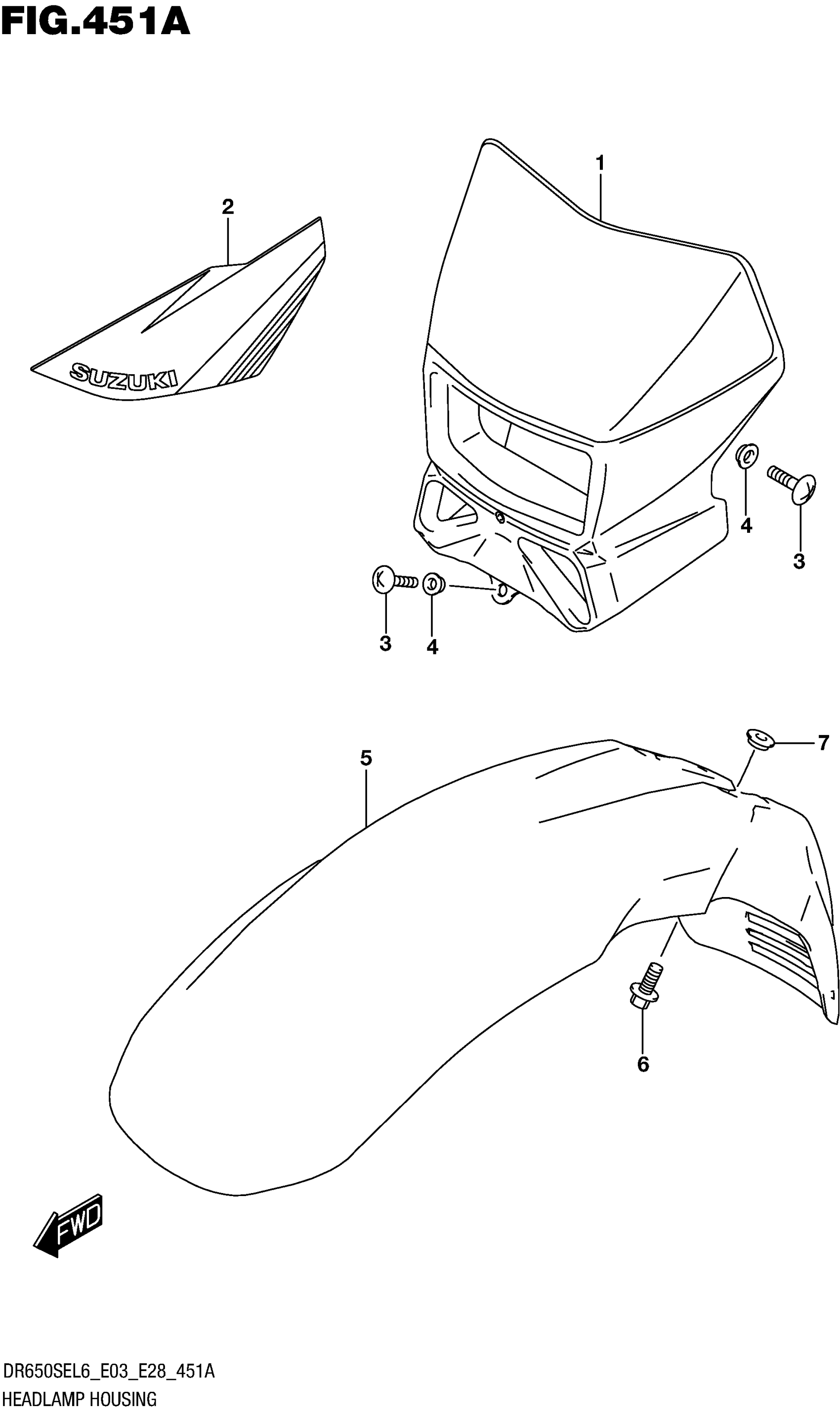

Suzuki DR650SEL6 (2016) HEADLAMP HOUSING Diagram

#

Description

Price

1

COVER, HEAD LAMP (BLACK)

51811-29F50-019

$122.75

2

TAPE,HEADLAMP H This part replaces 68725-29FS0-A84.

68725-29FS1-A84

$32.72

3

SCREW

02142-0612A

$1.41

4

WASHER

09169-06071

$2.57

5

FENDER,FRONT (GRAY)

53111-13E00-YUD

$176.62

6

BOLT (6X16)

09116-06170

$2.57

7

WASHER

09169-06073

$3.18
