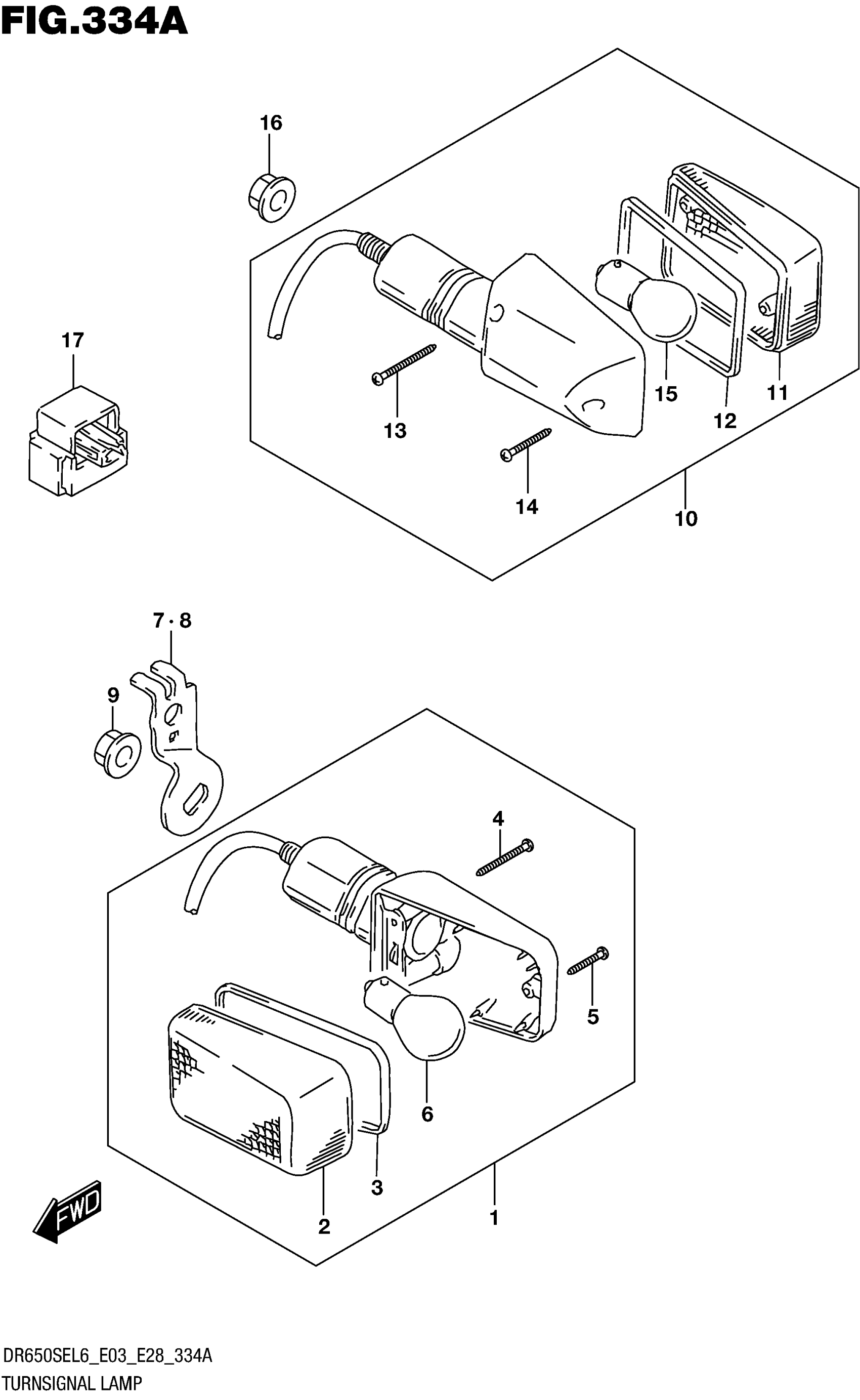

Find the part on the Turnsignal Lamp diagram for your 2016 Suzuki DR650SEL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki DR650SEL6 Turnsignal Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY,FRONT TURNSIGNAL

35601-29E30

2
Out of stock

2

.LENS

35612-17C20

2
Out of stock

3

.GASKET

35613-27A00

2
Out of stock

4

.SCREW, TAPPING (3X30)

35623-27A00

4
Out of stock

5

.SCREW, TAPPING (3X20)

35725-40511

2
Out of stock

6

.BULB (12V,21W)

09471-12045

2
Out of stock

7

BRACKET,FRONT RH

35671-32E00

1
Out of stock

8

BRACKET,FRONT LH

35681-32E00

1
Out of stock

9

NUT

08316-1010A

2
Out of stock

10

LAMP ASSY,REAR TURNSIGNAL

35603-29E90

2
Out of stock

11

.LENS

35652-17C20

2
Out of stock

12

.GASKET

35613-27A00

2
Out of stock

13

.SCREW, TAPPING (3X30)

35623-27A00

4
Out of stock

14

.SCREW, TAPPING (3X20)

35725-40511

2
Out of stock

15

.BULB (12V,21W)

09471-12045

2
Out of stock

16

NUT

08316-1010A

2
Out of stock

17

RELAY ASSY This part replaces 38610-26E00.

38610-26E01

1
Out of stock
