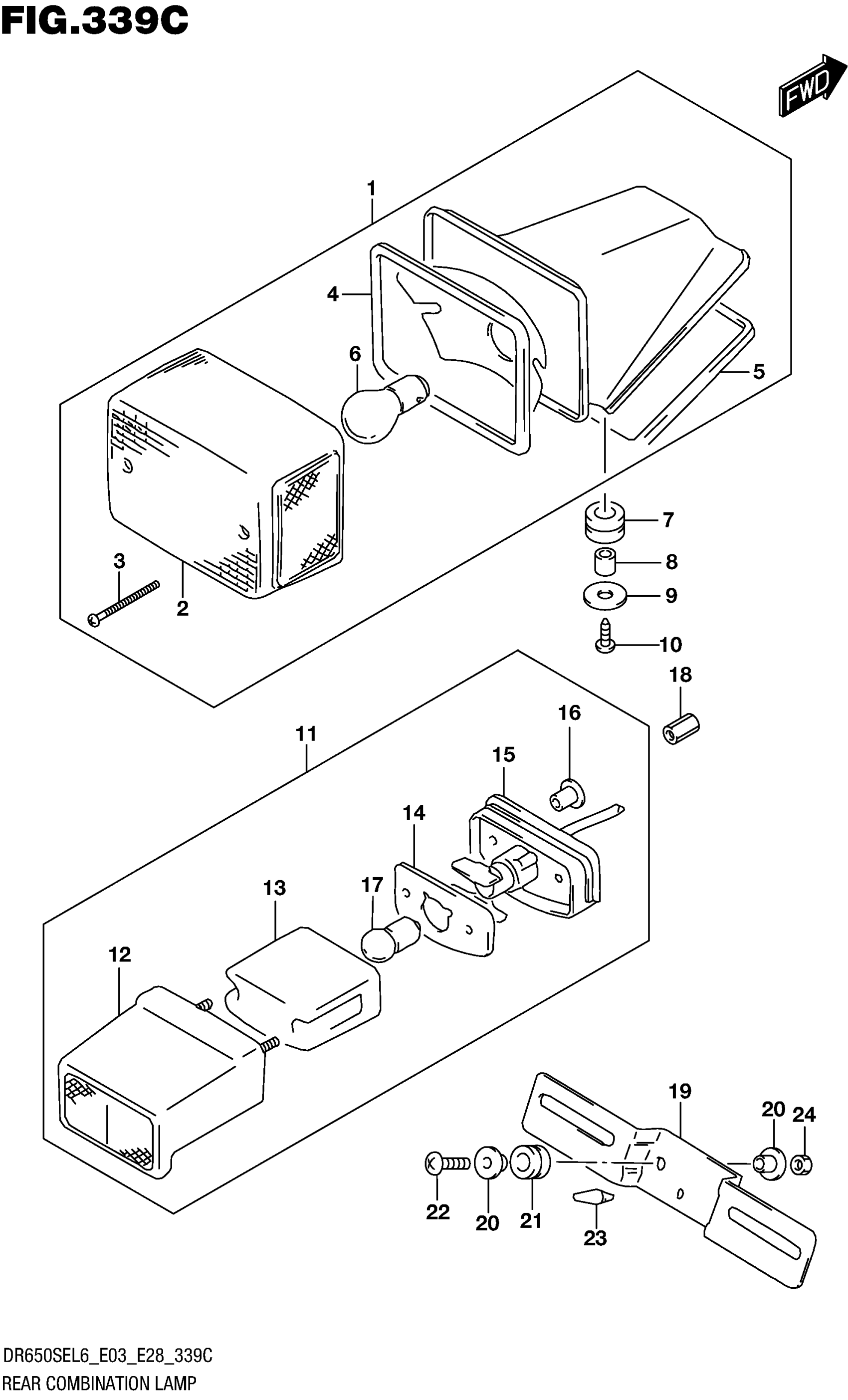

Suzuki DR650SEL6 (2016) REAR COMBINATION LAMP (DR650SEL6 E33) Diagram

#

Description
Price

1

LAMP ASSY,REAR COMB

35710-32E30

$172.32

2

.LENS

35712-14D30

$70.33

3

.SCREW (4X45)

09125-04501

$2.90

4

.GASKET LENS | FOR LENS

35713-14D30

$8.91

5

.GASKET | FOR BASE

35717-32E30

$6.47

6

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.08

7

CUSHION

09320-09016

$1.97

8

SPACER (6.1X8X9.5)

09180-06248

$2.13

9

.WASHER (6.5X20X1.6)

09160-06088

$1.67

10

SCREW

02142-0625B

$2.28

11

LAMP ASSY,LICENSE

35910-32E30

$198.95

12

.COVER, LENS

35917-17C00

$87.47

13

.LENS

35912-38A30

$23.08

14

.GASKET

35913-38A30

$3.80

15

.CUSHION

35761-24B31

Unavailable

16

.SPACER

35766-24B30

$3.80

17

BULB (12V5W) This part replaces 09471-12140.

09471-12058

$2.19

18

NUT

09140-04006

$3.42

19

BRACKET,LICENSE PLATE

35927-26E30

$16.03

20

WASHER

09169-06073

$3.08

21

CUSHION

09320-09016

$1.97

22

SCREW

02142-0620A

$1.38

23

CUSHION

09321-06023

$2.72

24

NUT

08310-0006A

$1.83
