Description

Price

1

PUMP ASSY,ENG OIL

16400-32E00

$191.15

2

GEAR, DRIVEN (NT:15)

16331-32E00

$41.22

3

PIN (4X15.8)

09261-04009

$1.56

4

SHIM (10X20X0.5)

09181-10186

$1.97

5

CIRCLIP

08331-31109

$1.78

6

SCREW

02112-0625A

$1.80

7

GEAR, OIL PUMP DRIVE (NT:30)

16321-32E00

$26.88

8

SHIFT,ENG OIL PUMP DRIVE GEAR

16322-32E01

Unavailable

9

CIRCLIP

08331-3112A

$1.78

10

STRAINER,ENG OIL This part replaces 16520-32E00.

16520-32E01

$13.10

11

CAP,OIL STRAINER

16523-32E00

Unavailable

12

BOLT (6X12)

09103-06285

$1.97

13

FILTER, ENGINE OIL

16510-37450

$6.06

14

O-RING (D:2.4,ID:15.8)

09280-15007

$1.70

15

CAP,OIL FILTER

16512-14D00

$36.17

16

.O RING (D:2.4,ID:73)

09280-72001

$4.94

17

SPRING

09440-21006

$2.03

18

BOLT

01547-06167

$1.65

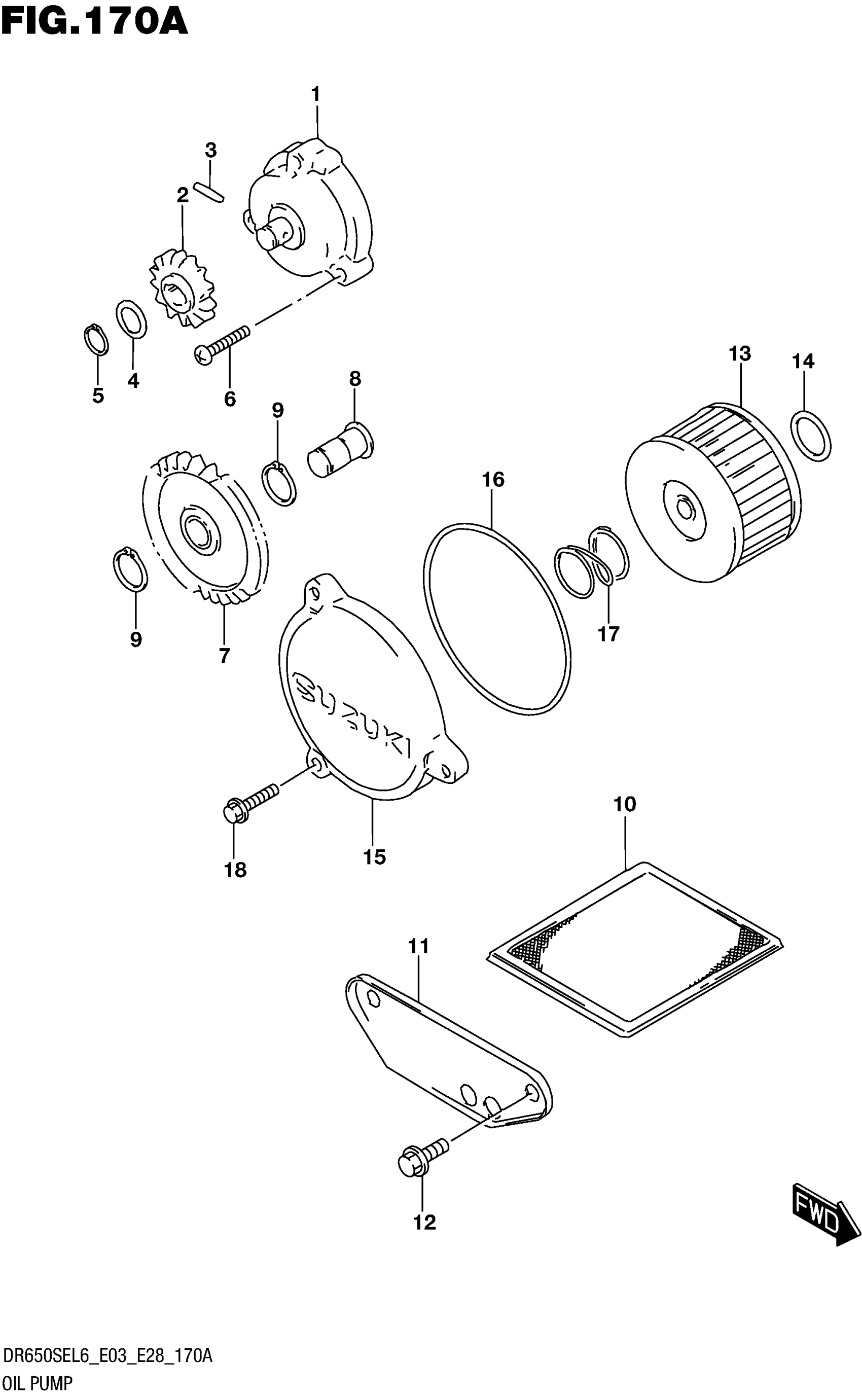

Suzuki DR650SEL6 (2016) OIL PUMP Diagram

PUMP ASSY,ENG OIL

GEAR, DRIVEN (NT:15)

PIN (4X15.8)

SHIM (10X20X0.5)

CIRCLIP

SCREW

GEAR, OIL PUMP DRIVE (NT:30)

SHIFT,ENG OIL PUMP DRIVE GEAR

CIRCLIP

STRAINER,ENG OIL This part replaces 16520-32E00.

CAP,OIL STRAINER

BOLT (6X12)

FILTER, ENGINE OIL

O-RING (D:2.4,ID:15.8)

CAP,OIL FILTER

.O RING (D:2.4,ID:73)

SPRING

BOLT
