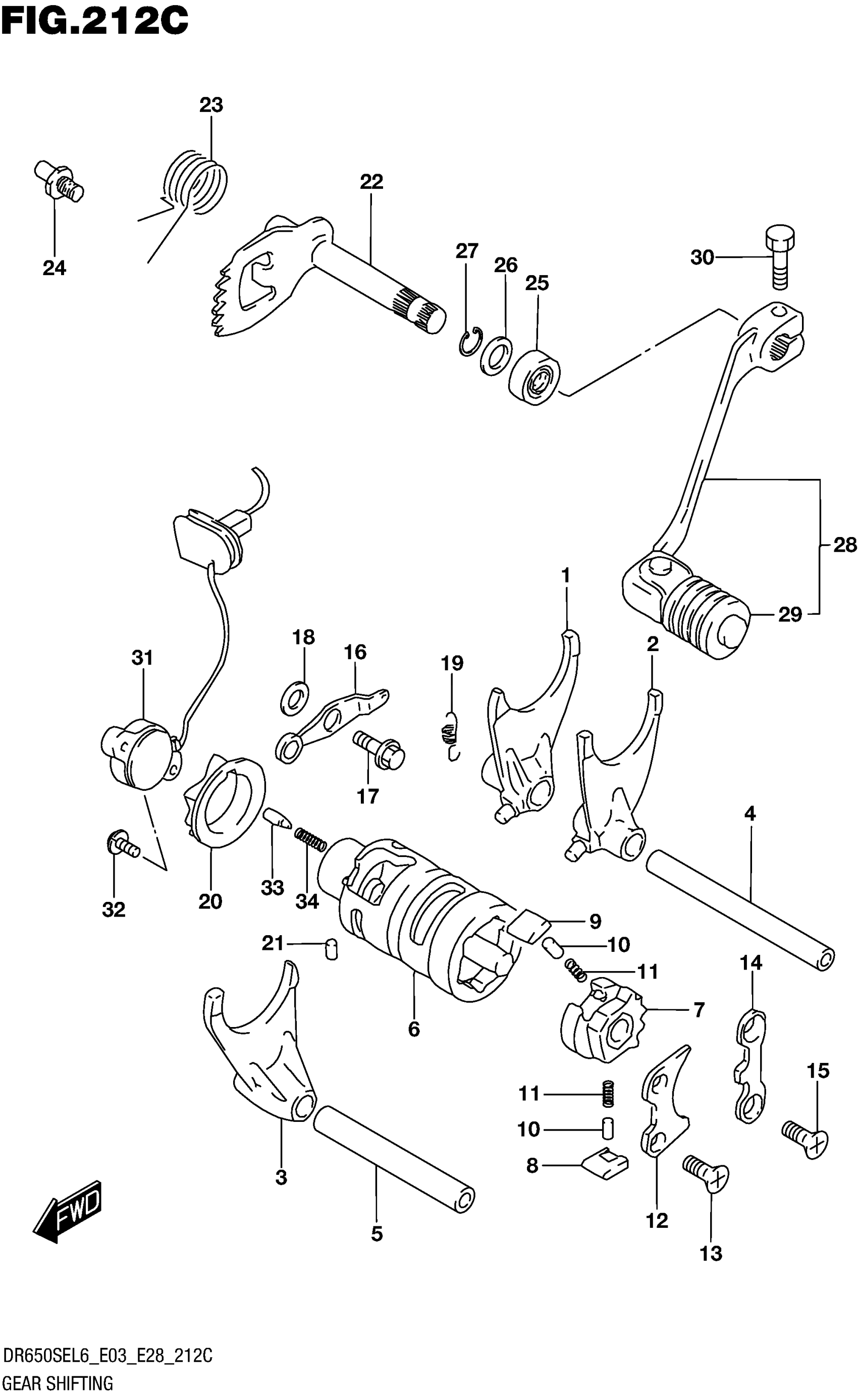

Suzuki DR650SEL6 (2016) GEAR SHIFTING (DR650SEL6 E33) Diagram

#

Description
Price

1

FORK,GEAR SHIFT NO,1

25211-37401

$101.80

2

FORK,GEAR SHIFT,NO,2

25221-37401

$101.80

3

FORK,GEAR SHIFT,NO.3

25231-14A01

$95.37

4

SHAFT, FORK NO.1 (L:95)

25411-20A11

Unavailable

5

SHAFT, FORK NO.2 (L:75)

25421-14A02

$26.03

6

CAM, GEAR SHIFTING

25310-37400

$151.90

7

GEAR, GEAR SHIFT CAM DRIVEN

25322-31310

$30.40

8

PAWL, GEAR SHIFT NO.1

25323-34201

$6.61

9

PAWL, GEAR SHIFT NO.2

25324-34201

$6.80

10

PIN (5X8)

09261-05003

$1.69

11

SPRING

09440-04003

$1.48

12

LIFTER,GEAR SHIFT POLE

25331-14A00

$10.15

13

SCREW (6X12)

09126-06011

$2.01

14

GUIDE, CAM

25341-40001

$13.73

15

SCREW (6X12)

09126-06011

$2.01

16

STOPPER

25350-37400

$17.40

17

BOLT (6X14.6)

09111-06054

$4.02

18

WASHER

08211-06141

$1.61

19

SPRING

09443-08020

$3.17

20

PLATE,GEAR SHIFT CAM STOPPER

25381-37401

$23.45

21

PIN

04221-04069

$2.30

22

SHAFT,GEAR SHIFT

25510-32E00

$111.05

23

SPRING

09444-26023

$5.25

24

STOPPER, ARM

25671-01011

$4.09

25

OIL SEAL (12X22X9)

09285-12006

$5.70

26

WASHER

08212-12201

$1.87

27

CIRCLIP

08331-3112A

$1.77

28

LEVER ASSY,GEAR SHIFT

25600-32E00

$50.07

29

.RUBBER, GEAR SHIFT PEDAL

25652-03D00

$4.63

30

BOLT

01500-0620A

$1.77

31

BASE ASSY,NEUT SW TERMINAL

37720-32E10

$57.63

32

SCREW

07120-0516A

$1.72

33

PIN (5X15.5)

09209-05011

$2.02

34

SPRING

09440-04010

$1.52
