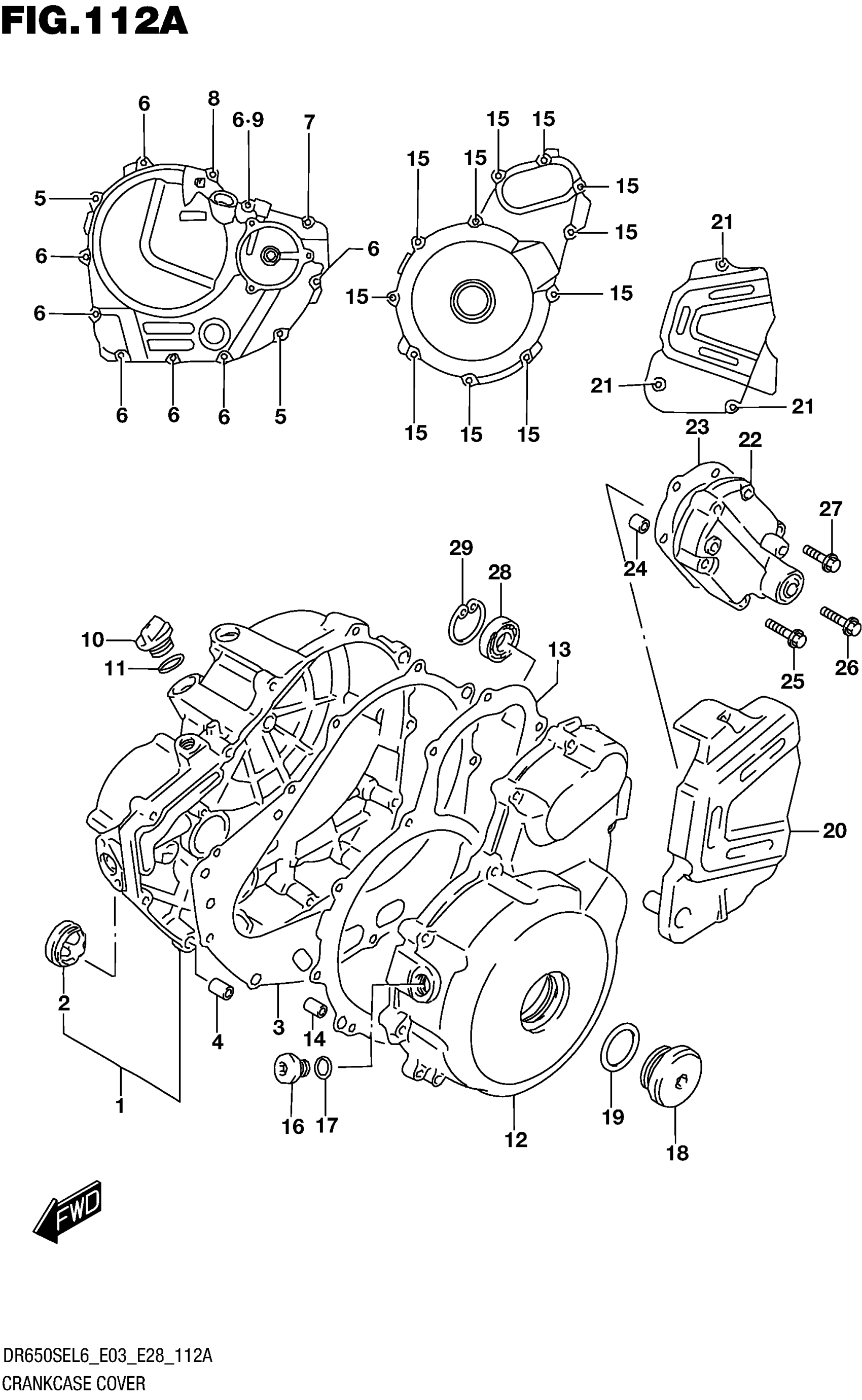

Suzuki DR650SEL6 (2016) CRANKCASE COVER Diagram

#

Description
Price

1

COVER,CLUTCH

11340-32E00

$337.60

2

.LENS, OIL LEVEL

11971-33210

$18.20

3

GASKET, CLUTCH COVER

11482-32E00

$21.09

4

PIN

04211-09149

$1.65

5

BOLT

01547-0645A

$2.42

6

BOLT

01547-0635A

$2.30

7

BOLT

01547-0630A

$2.32

8

BOLT

01547-0625A

$2.01

9

GASKET (5.8X13X1.2)

09168-06023

$2.35

10

PLUG

09259-20019

$11.52

11

O RING (D:3.1,ID:16.8)

09280-17003

$1.65

12

COVER,MAGNETO

11351-32E01

$237.37

13

GASKET

11483-32E00

$18.50

14

PIN

04211-09149

$1.65

15

BOLT

01547-0630A

$2.32

16

PLUG

09248-14011

$2.98

17

GASKET (13.8X18.8X4.8)

09168-14002

$2.26

18

PLUG (SILVER)

09259-36016-20H

$13.80

19

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.23

20

COVER,ENG SPROCKET

11361-32E00

$91.12

21

BOLT

01547-0635A

$2.30

22

COVER,GEAR SHF

11371-12D30

$86.82

23

GASKET

11485-12D01

$5.83

24

PIN

04211-09149

$1.65

25

BOLT

01547-0635A

$2.30

26

BOLT

01547-0630A

$2.32

27

BOLT

01547-0620A

$2.03

28

BEARING (12X28X8)

09262-12001

$18.47

29

CIRCLIP

08331-41289

$2.68
