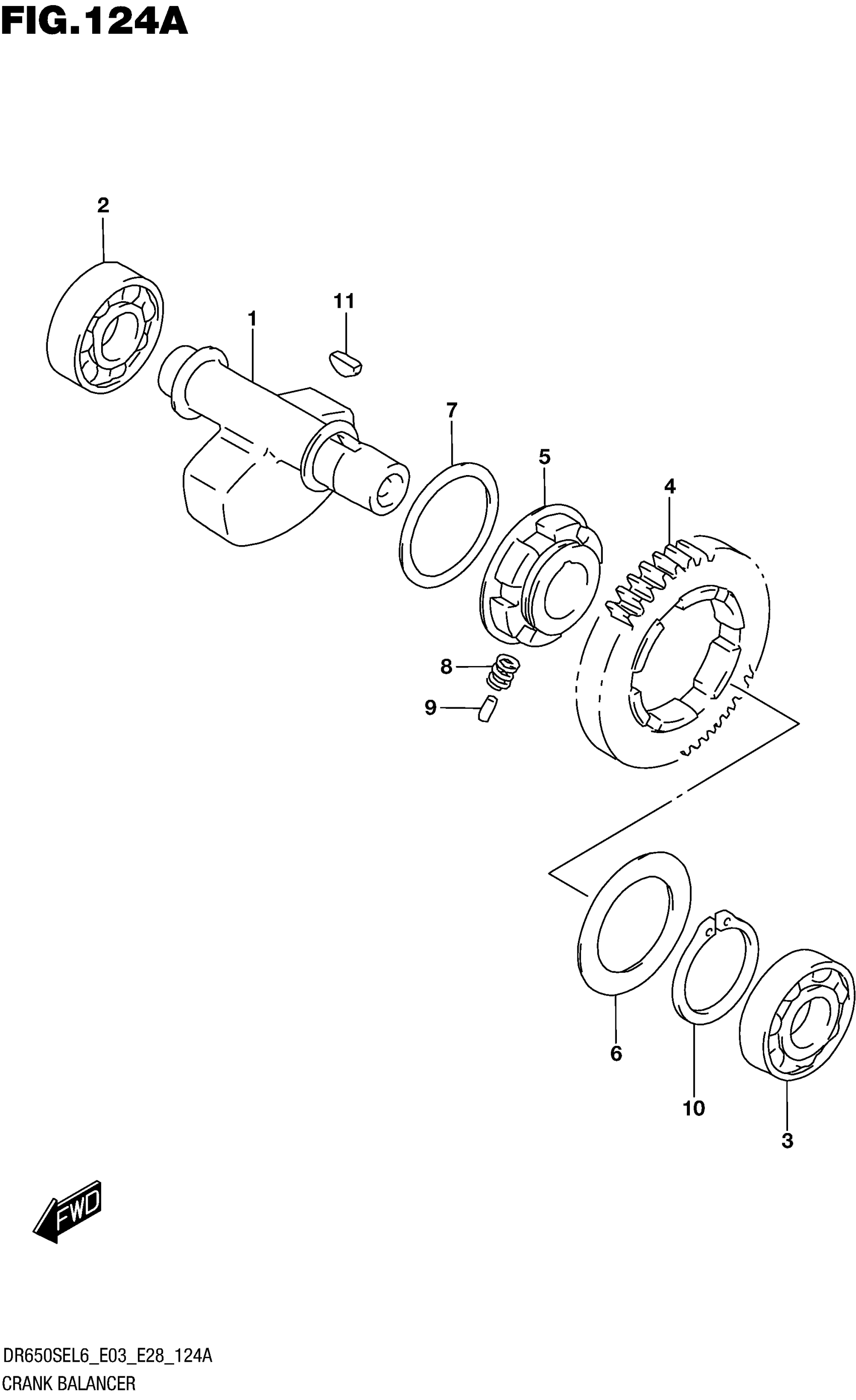

Suzuki DR650SEL6 (2016) CRANK BALANCER Diagram

#

Description
Price

1

BALANCER,CRANK

12651-32E00

Unavailable

2

BEARING (22X56X16) | RH

09262-22029

$64.59

3

BEARING (20X47X14) | LH

09262-20121

$33.92

4

GEAR, BALANCER DRIVEN (NT:43)

12666-32E00

Unavailable

5

RACE

12669-32E00

Unavailable

6

WASHER

09164-38003

Unavailable

7

WASHER

08211-38582

Unavailable

8

SPRING

09440-09031

$2.98

9

PIN (4.5X9.5)

09202-04017

$3.78

10

CLIP

08331-31383

$3.42

11

KEY

09420-04008

$3.42
