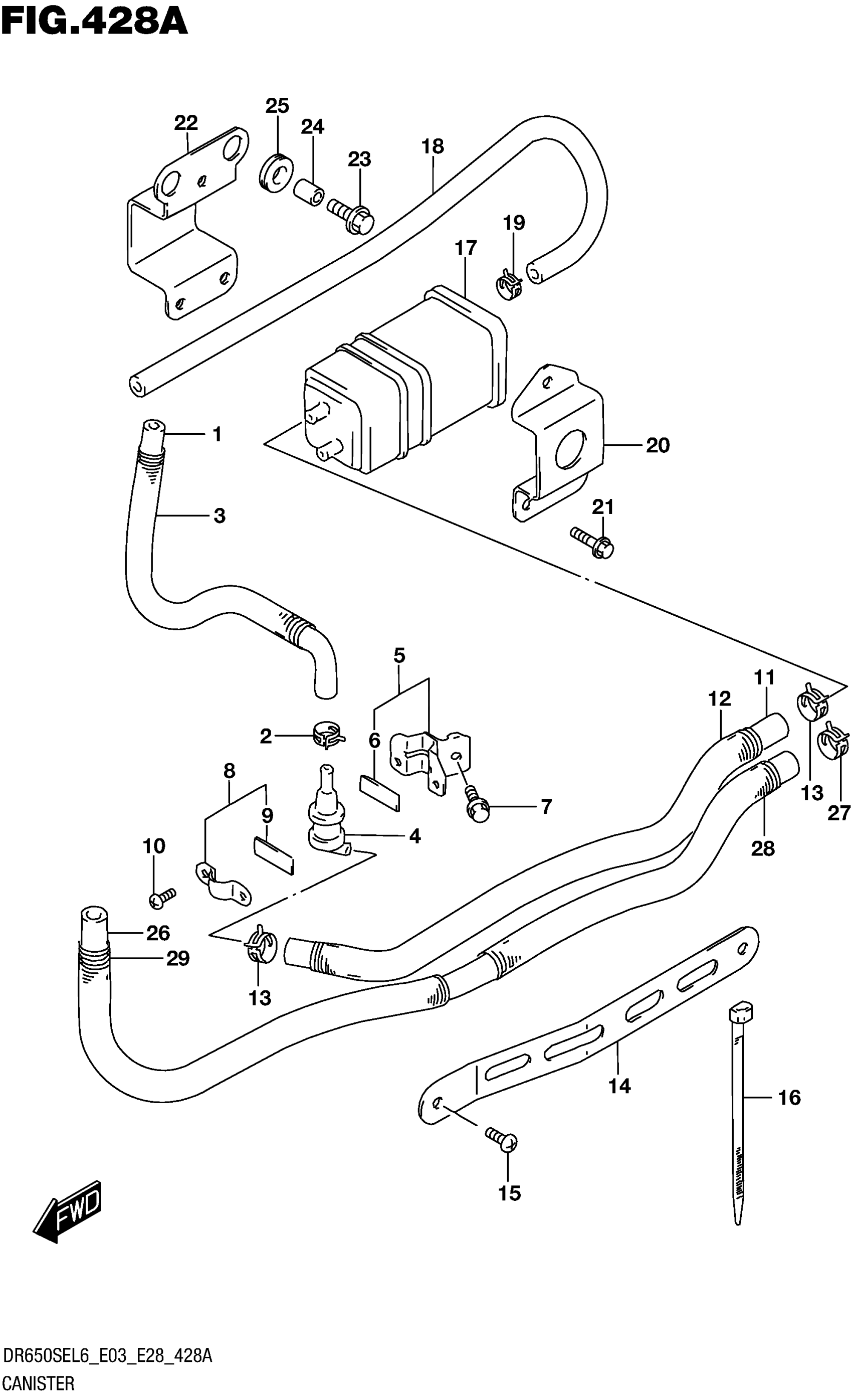

Suzuki DR650SEL6 (2016) CANISTER (DR650SEL6 E33) Diagram

#

Description
Price

1

HOSE, TANK & VALVE

44434-32EA0

Unavailable

2

CLIP

09401-11413

$2.26

3

SPRING

09440-13012

Unavailable

4

VALVE FUEL TANK BREATHER

44240-17C00

$64.68

5

PLATE,BRTHR VALVE

44890-32E00

Unavailable

6

CUSHION (10X30X2)

44894-24A00

$1.72

7

BOLT

01550-0612A

$1.97

8

PLATE,FUEL TANK BREATHER NO.2

44892-24A00

$4.52

9

CUSHION (10X30X2)

44894-24A00

$1.72

10

SCREW

02112-0408A

$1.49

11

HOSE, VALVE & CANISTER

44435-32EA0

Unavailable

12

SPRING

09440-13043

$6.04

13

CLIP

09401-11413

$2.26

14

PLATE,CANISTER HOSE

44945-32E00

Unavailable

15

SCREW

02142-0612A

$1.49

16

CLAMP (L:125)

09407-14403

$2.26

17

CANISTER

17210-14A00

$156.07

18

HOSE,6.5X11.5X6 | L:600->320 This part replaces 09355-70125-600.

44421-12FR0

$12.33

19

CLIP

09401-11415

$2.23

20

PLATE,CSTR UPPER

44921-32E00

Unavailable

21

BOLT

01550-0612A

$1.97

22

PLATE,CSTR LOWER

44930-32E00

Unavailable

23

BOLT (6X20)

09116-06167

$2.19

24

SPACER (6.5X10X9.4)

09180-06286

$2.50

25

CUSHION

09320-10015

$2.54

26

HOSE, CANISTER & CARB PURGE

44436-32EA0

Unavailable

27

CLIP

09401-11413

$2.26

28

SPRING

09440-13043

$6.04

29

SPRING

09440-13053

Unavailable
