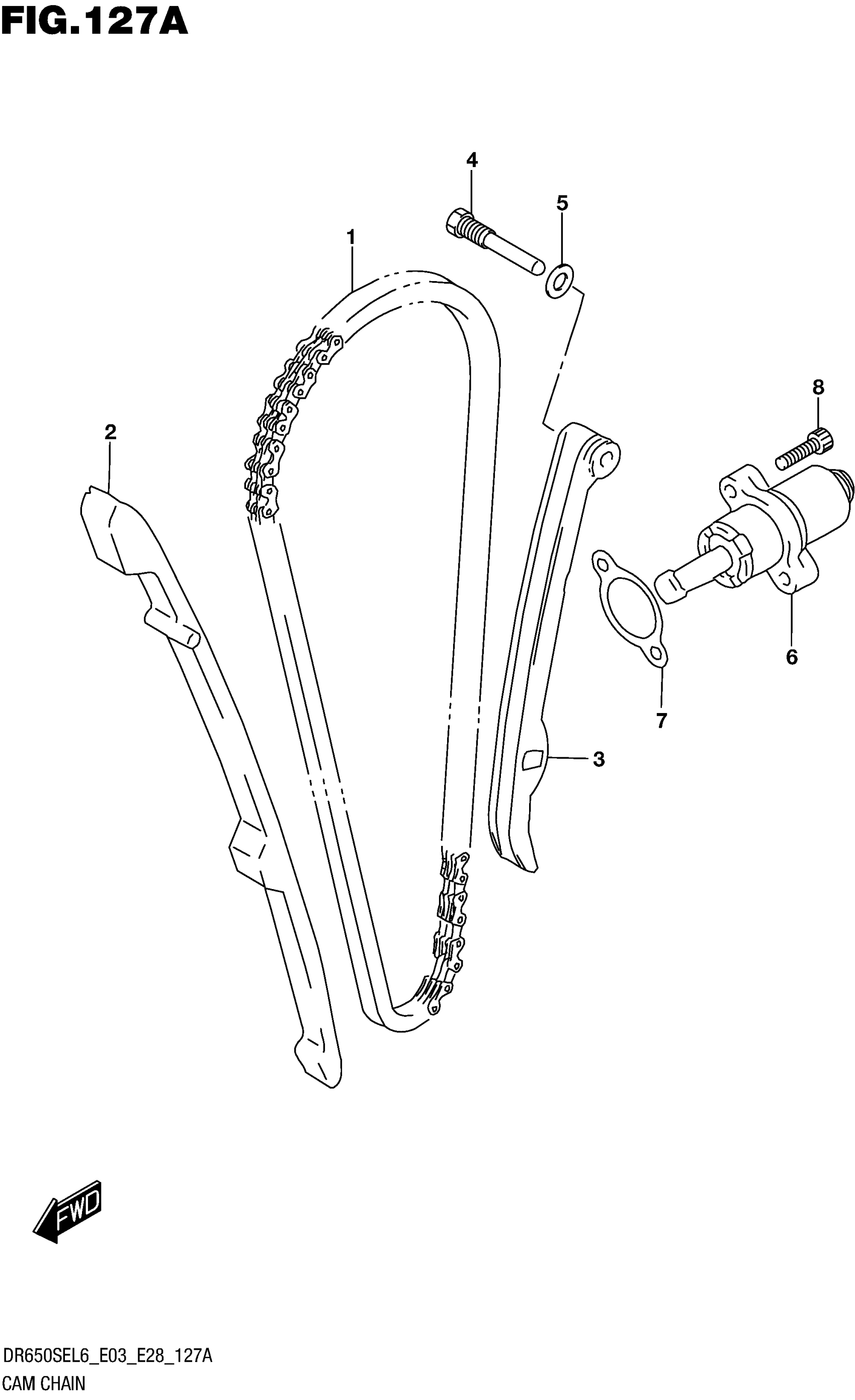

Suzuki DR650SEL6 (2016) CAM CHAIN Diagram

#

Description

Price

1

CHAIN,CAM SHAFT DRIVE (120LE)

12760-32E00

$164.02

2

GUIDE,CAM CHAIN This part replaces 12771-32E00.

12771-32E01

$44.12

3

TENSIONER,CAM CHAIN This part replaces 12811-32E00.

12811-32E01

$43.40

4

BOLT, CAM CHAIN TENSIONER

12812-32400

$3.71

5

GASKET (8.2X14X1)

09168-08016

$1.65

6

ADJUSTER ASSY, TENSIONER

12830-32E00

$113.78

7

.GASKET,TENSIONER ADJUSTER

12837-24A10

$3.25

8

BOLT (6X25)

07130-0625A

$2.62
