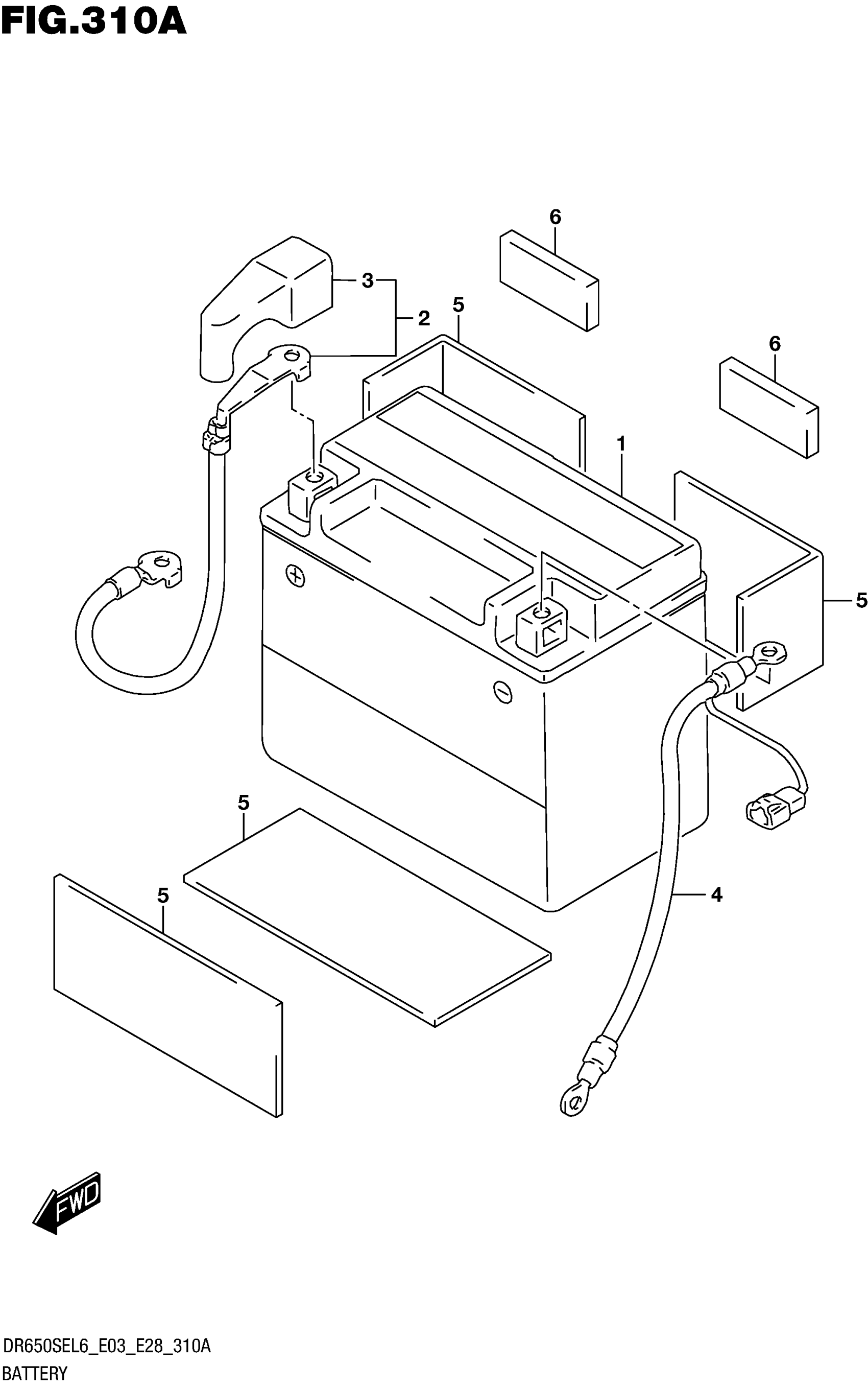

Suzuki DR650SEL6 (2016) BATTERY Diagram

#

Description

Price

1

BATTERY ASSY (12V,8AH) This part replaces 33610-32C10.

33610-33E20

Unavailable

2

WIRE,BATTERY PLUS

33820-32E00

$31.93

3

.CAP, BATTERY PLUS TERMINAL

33624-32E00

$7.20

4

WIRE,BATTERY MINUS

33860-32E00

$26.73

5

CUSHION (170X95X3.0) | CUT AS REQUIRED PROF

33651-37000

$4.48

5

PROTECTOR (170X95X3.0) | (115X50)(130X60)

33651-37000

$4.48

6

CUSHION, REAR FENDER REAR | CUT AS REQUIRED PROF This part replaces 33652-08420.

33651-37000

$4.48

6

CUSHION, REAR FENDER REAR | (20X45) This part replaces 33652-08420.

33651-37000

$4.48
