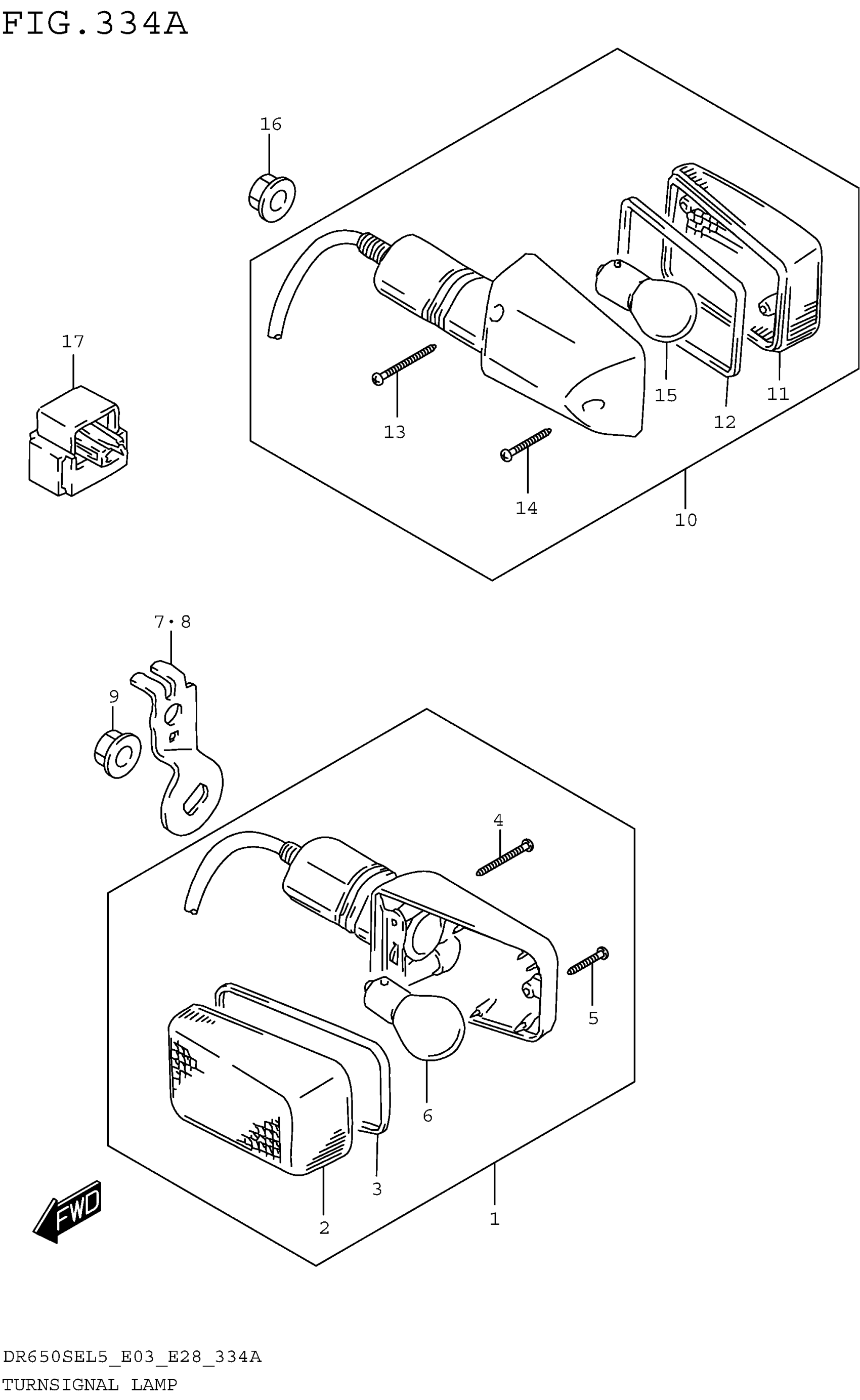

Suzuki DR650SEL5 (2015) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY,FRONT TURNSIGNAL

35601-29E30

$84.63

2

LENS

35612-17C20

$10.69

3

GASKET

35613-27A00

$4.52

4

TAPPING SCREW, 3X30

35623-27A00

$1.65

5

TAPPING SCREW, 3X20

35725-40511

$1.91

6

BULB (12V,21W)

09471-12045

$3.27

7

BRACKET,FRONT RH

35671-32E00

$10.67

8

BRACKET,FRONT LH

35681-32E00

$10.62

9

NUT

08316-1010A

$2.70

10

LAMP ASSY,REAR TURNSIGNAL

35603-29E90

$88.10

11

LENS

35652-17C20

$10.28

12

GASKET

35613-27A00

$4.52

13

TAPPING SCREW, 3X30

35623-27A00

$1.65

14

TAPPING SCREW, 3X20

35725-40511

$1.91

15

BULB (12V,21W)

09471-12045

$3.27

16

NUT

08316-1010A

$2.70

17

RELAY ASSY This part replaces 38610-26E00.

38610-26E01

$58.97
