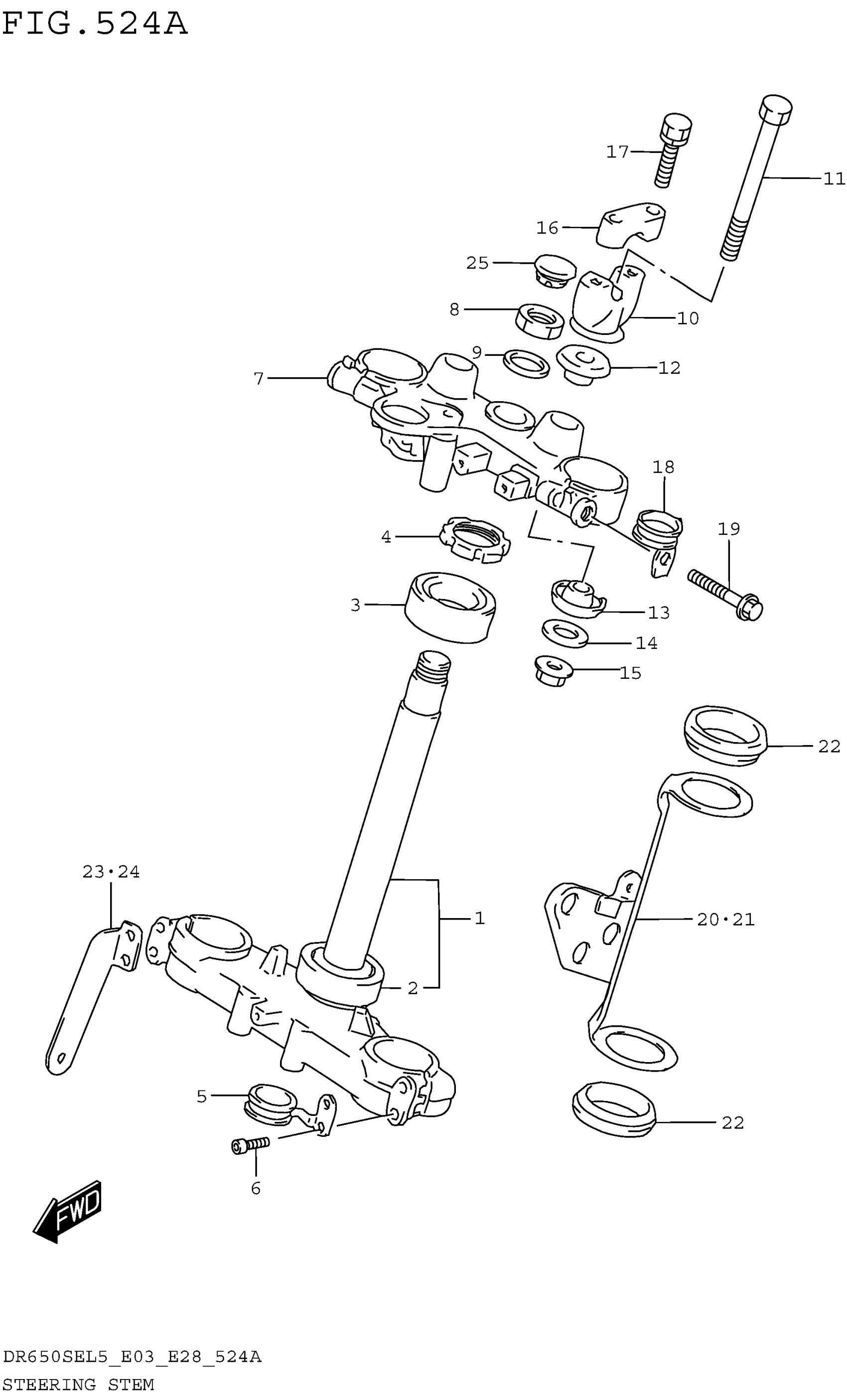

Suzuki DR650SEL5 (2015) STEERING STEM Diagram

#

Description
Price

1

BRACKET,UNDER This part replaces 51410-32E00.

51410-32E01

$638.57

2

.BEARING (30X52X16) This part replaces 09265-30014.

09265-30035

$46.72

3

.BEARING (30X52X16) This part replaces 09265-30014.

09265-30035

$46.72

4

NUT STEERING

51631-28E00

$28.88

5

GUIDE,BRAKE HOSE LOWER

51453-32E10

$29.27

6

BOLT

07130-08407

$3.14

7

HEAD,STEERING STEM

51311-32E00

$375.05

8

NUT

51353-32E00

$30.42

9

WASHER

51356-27C00

$6.75

10

HOLDER, HANDLE LOWER (BLACK)

56221-14330-291

$53.33

11

BOLT

56321-28C00

$8.28

12

RUBBER, UPPER

56241-14A00

$33.65

13

RUBBER, LOWER

56242-14200

$36.08

14

WASHER (10.5X28X2.3)

09160-10035

$1.78

15

NUT

08319-31107

$2.73

16

HOLDER, HANDLE UPPER (BLACK)

56211-29320-291

$15.51

17

BOLT

01570-0835A

$3.16

18

CLIP

51288-32E00

$29.83

19

BOLT

01550-1040B

Unavailable

20

COVER,FORK RH

51530-32E00

$104.75

21

COVER,FORK LH

51540-32E00

Unavailable

22

DAMPER,HEAD LAMP HSG BRKT This part replaces 51553-15D00.

51553-15D01

$5.00

23

BRACKET, SIDE RH

35956-44B01

$11.83

24

BRACKET, SIDE LH

35957-44B01

$11.83

25

CAP (OD:20) This part replaces 09250-12006.

09250-12016

$1.92
