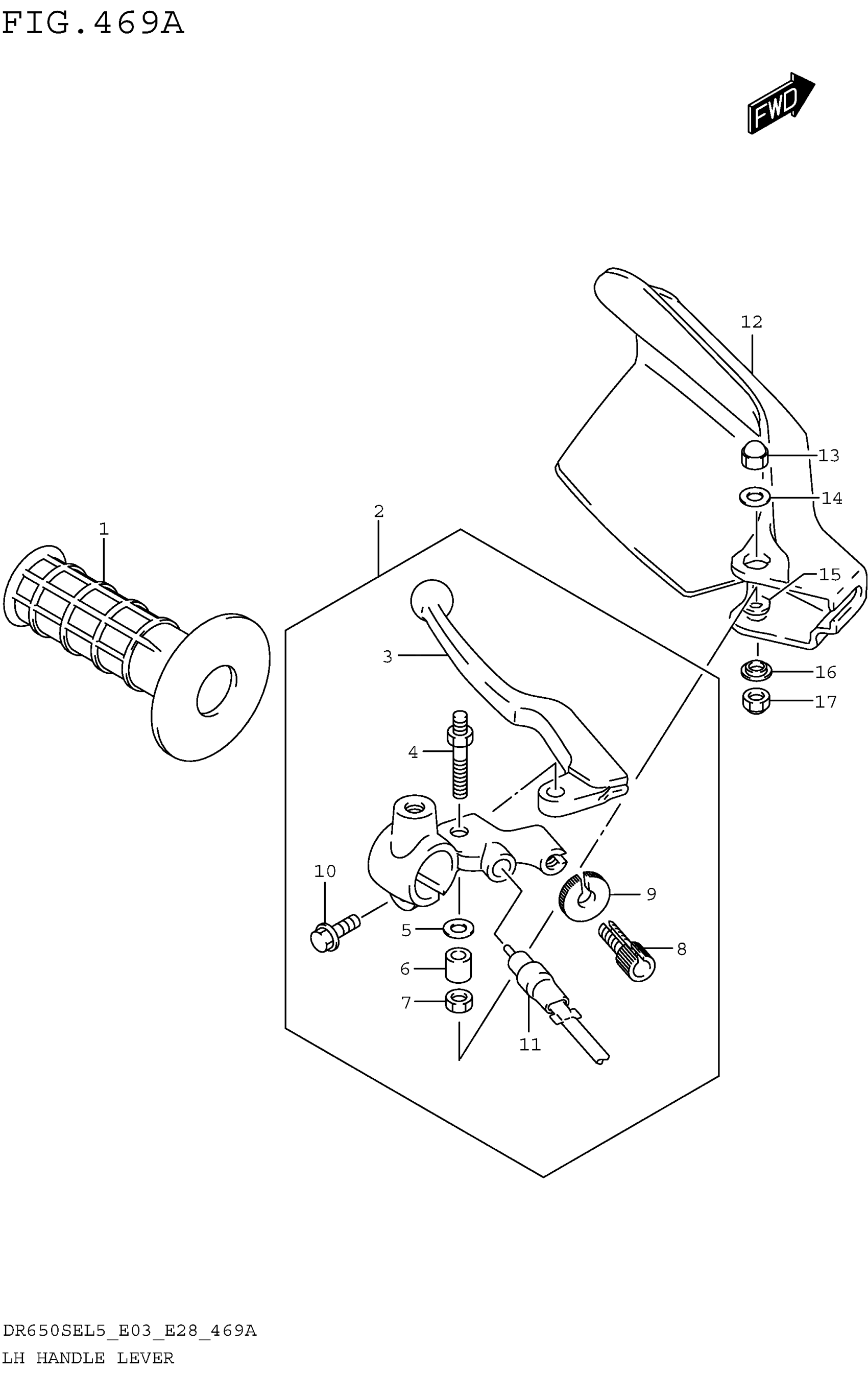

Suzuki DR650SEL5 (2015) LH HANDLE LEVER Diagram

#

Description
Price

1

GRIP L

57211-12D00

$16.70

2

LEVER ASSY,CLUTCH This part replaces 57500-12E30.

57500-12E31

$109.88

3

LEVER, CLUTCH

57421-12E30

$31.83

4

BOLT

57531-12E30

$32.97

5

WASHER

57533-12E30

$10.12

6

SPACER

57532-12E30

$21.90

7

NUT

08319-2106B

$2.32

8

.ADJUSTER, WIRE This part replaces 57441-45C00.

57441-45C01

$9.05

9

.NUT, LOCK This part replaces 57442-45C00.

57442-45C01

$8.41

10

..BOLT

01547-0620B

$2.45

11

SWITCH ASSY, CLUTCH

57560-13E02

$21.64

12

COVER,KNUCKLE LH (BLACK)

57541-31D20-YUD

$49.10

13

NUT

08313-1006B

$2.26

14

WASHER (6.5X20X1.6)

09160-06154

$1.98

15

WASHER (6.5X16X1.2)

09160-06019

$1.49

16

WASHER

09169-06055

$2.27

17

NUT

08319-2106A

$1.91
