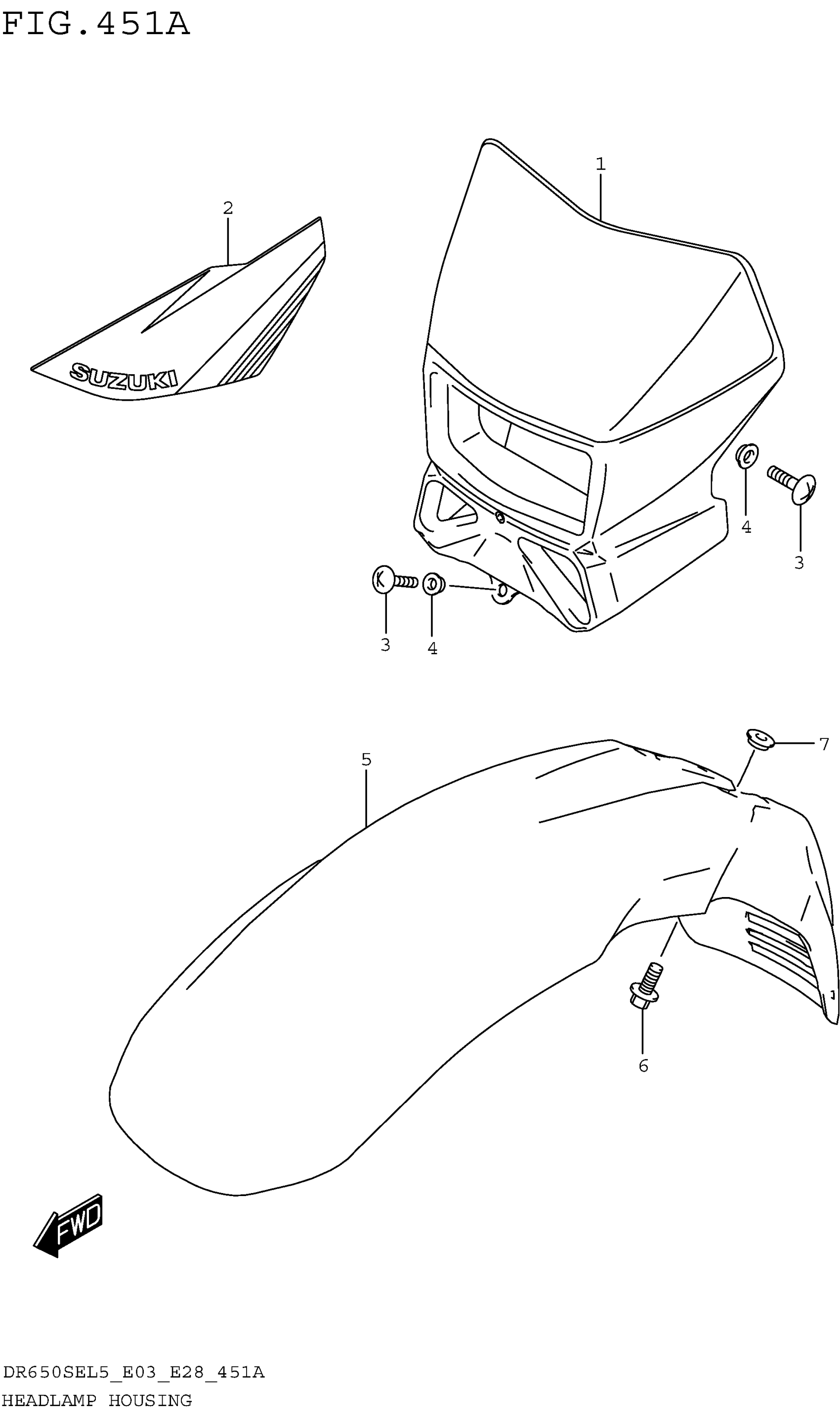

Suzuki DR650SEL5 (2015) HEADLAMP HOUSING Diagram

#

Description

Price

1

COVER, HEAD LAMP (GRAY)

51811-29F50-YUD

$126.58

2

TAPE,HEADLAMP H This part replaces 68725-29FS0-AZ1.

68725-29FS1-AZ1

$26.93

3

SCREW

02142-0612A

$1.49

4

WASHER

09169-06071

$2.50

5

FENDER,FRONT (WHITE)

53111-13E00-30H

$159.40

6

BOLT (6X16)

09116-06170

$2.50

7

WASHER

09169-06073

$3.42
