2015 Suzuki DR650SEL5 Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 2015 Suzuki DR650SEL5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

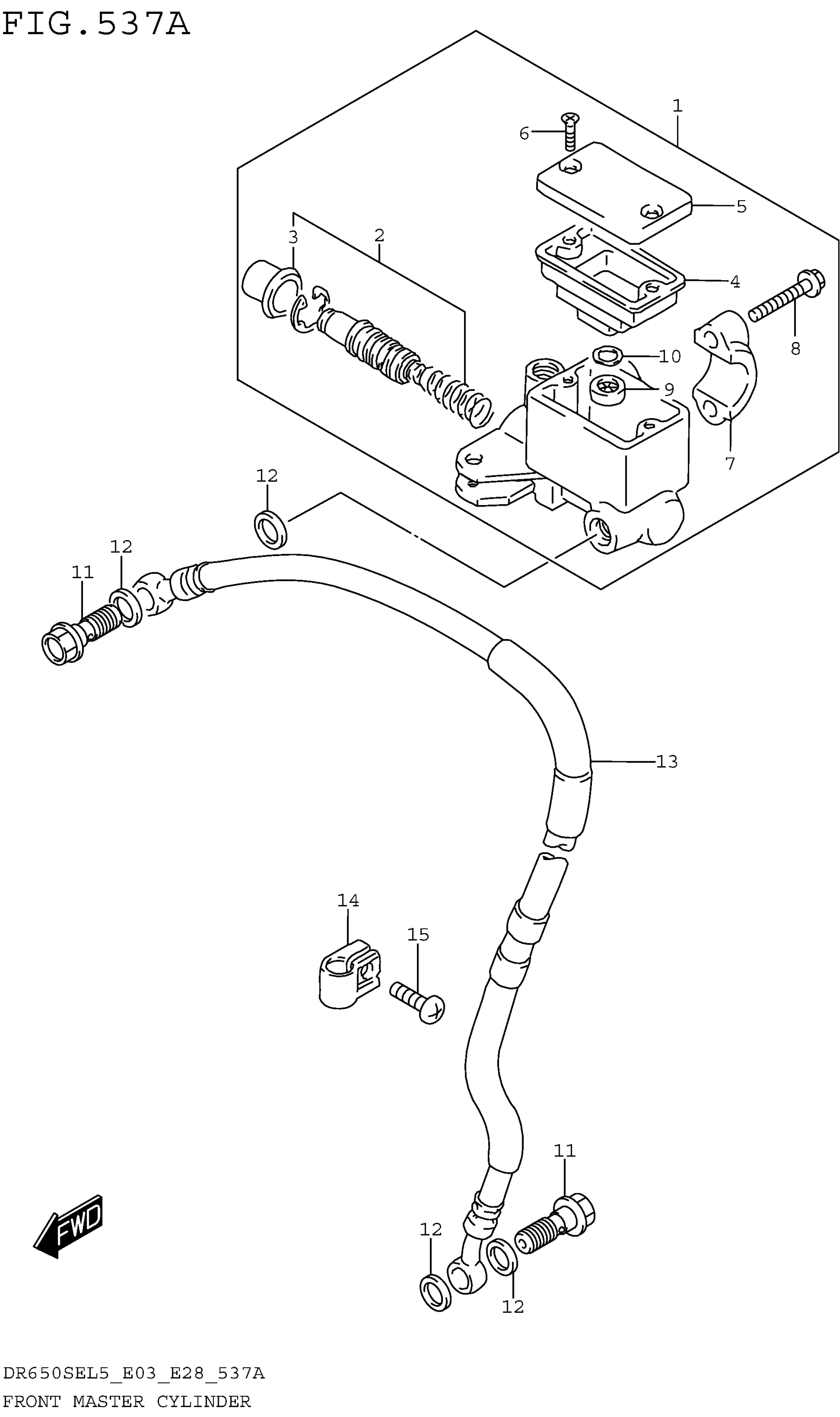

2015 Suzuki DR650SEL5 Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER ASSY, FRONT MASTER

59600-31D01

1
Out of stock

2

PISTON/CUP SET

59600-04810

1
Out of stock

3

BOOT

59666-44300

1
Out of stock

4

DIAPHRAGM

59667-44B00

1
Out of stock

5

CAP

69669-24A01

1
Out of stock

6

SCREW

69689-49300

2
Out of stock

7

.HOLDER

59671-36500

1
Out of stock

8

BOLT

59675-02FA0

2
Out of stock

9

SEPARATOR

59748-15400

1
Out of stock

10

PLATE

59749-15400

1
Out of stock

11

UNION

09360-10062

2
Out of stock

12

WASHER (10X15X1.5)

09161-10009

4
Out of stock

13

HOSE,FRONT BRAKE

59480-32E01

1
Out of stock

14

CLAMP BRAKE HOSE

58621-07A20

1

$4.17

In stock

15

SCREW

02142-0620B

1
Out of stock
