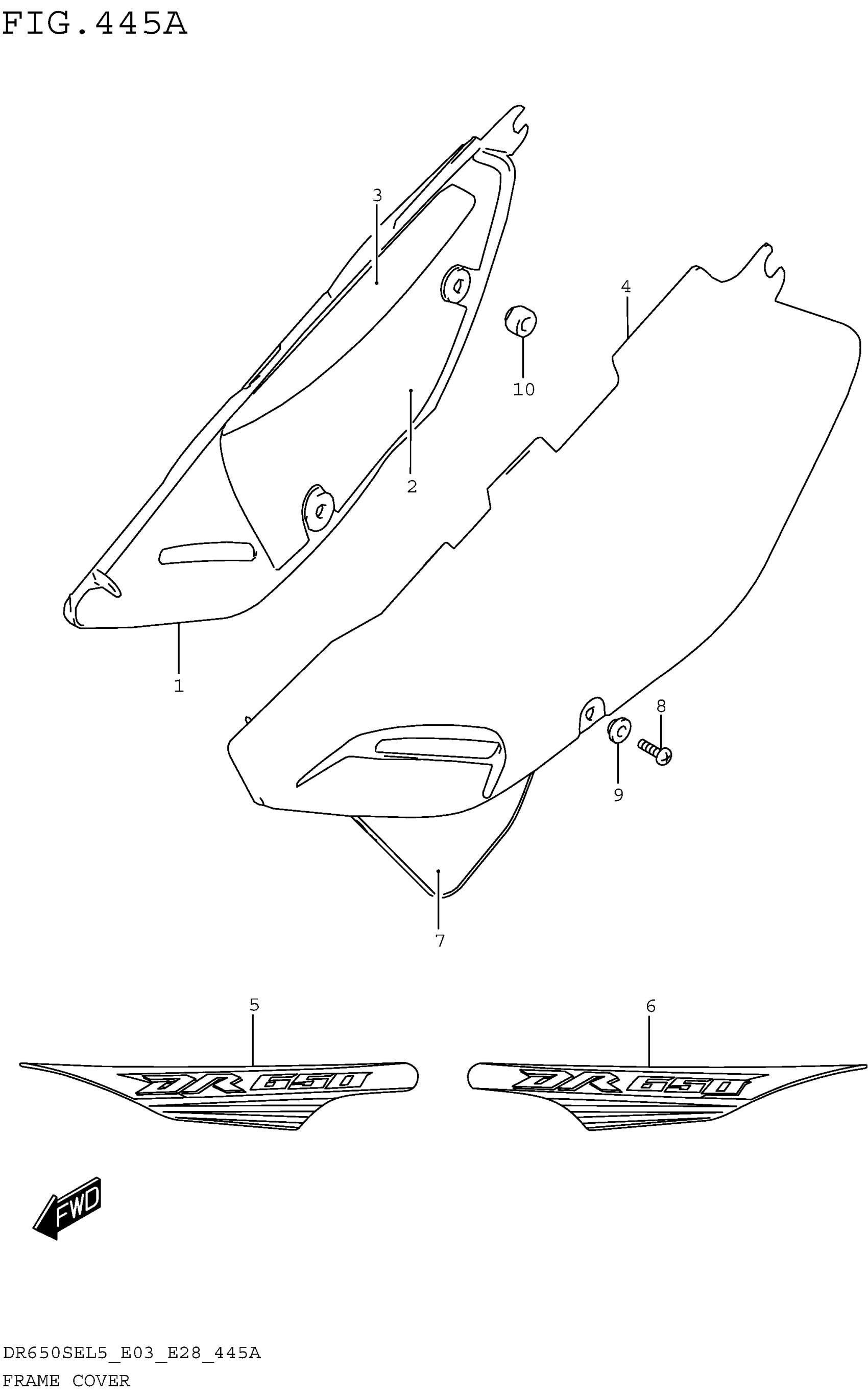

Suzuki DR650SEL5 (2015) FRAME COVER Diagram

#

Description

Price

1

COVER,FRAME RH (WHITE)

47111-32E10-30H

$137.28

2

SHIELD,FRAME COVER,R,NO.1

47166-32E00

$50.69

3

SHIELD,FRAME COVER,R,NO.2

47167-32E00

$23.65

4

COVER,FRAME LH (WHITE)

47211-32E10-30H

$137.28

5

TAPE,FRAME COVE This part replaces 68135-32E60-AZ1.

68135-32E61-AZ1

$24.55

6

TAPE,FRAME COVE This part replaces 68145-32E60-AZ1.

68145-32E61-AZ1

$18.12

7

TAPE, LOWER LH

68146-32E00

$15.08

8

SCREW

02142-0616A

$1.49

9

WASHER This part replaces 09169-06031.

09169-06041

$2.20

10

CUSHION

09321-10019

$4.90
