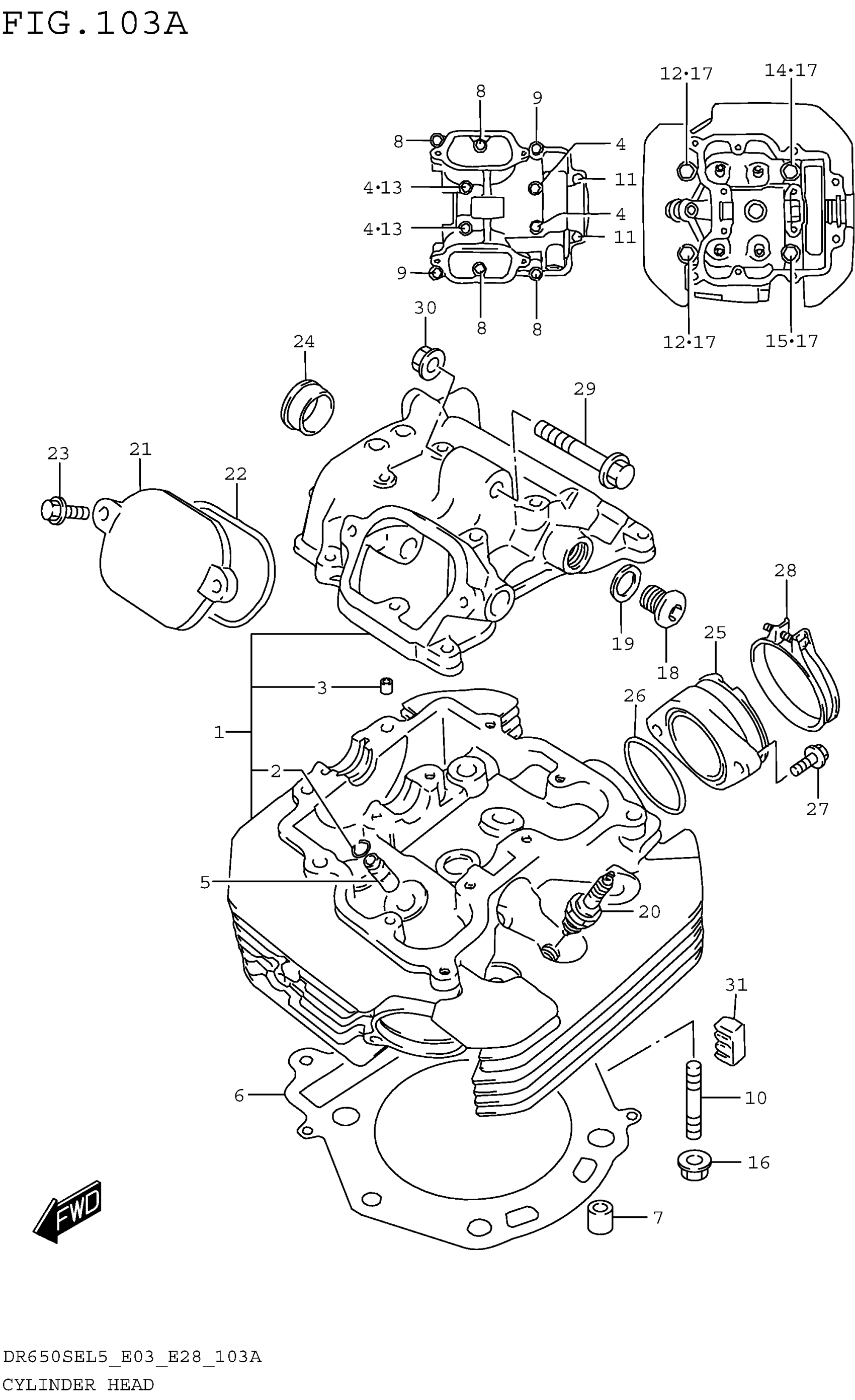

Suzuki DR650SEL5 (2015) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER This part replaces 11100-32E20.

11100-32E22

$1,009.68

2

.RING (10X85)

09381-10004

$1.50

3

PIN (8X11)

09206-08001

$1.78

4

BOLT (6X55)

09103-06102

$2.10

5

GUIDE, VALVE (OS:0.3) | OPT

11115-32E70

$33.35

6

GASKET, CYLINDER HEAD

11141-32E00

$43.16

7

PIN

04211-13189

$2.19

8

BOLT

01550-0625A

$1.97

9

BOLT

01550-0630A

$2.32

10

STUD BOLT

09108-08142

$3.18

11

BOLT (6X115)

09103-06167

$4.26

12

BOLT (10X180)

09103-10178

$14.74

13

GASKET (5.8X13X1.2)

09168-06023

$2.35

14

BOLT (10X190)

09103-10179

$15.32

15

BOLT (L:200)

09103-10180

$15.32

16

NUT

08316-1008A

$2.45

17

GASKET (10.5X22X2)

09168-10017

$3.04

18

PLUG, SHAFT This part replaces 09248-14012.

09248-14011

$2.98

19

GASKET (13.8X18.8X4.8)

09168-14002

$2.26

20

SPARK PLUG (CR10E) | NGK

09482-00460

$6.47

20

SPARK PLUG (U31ESR-N) | DENSO

09482-00461

$12.62

20

PLUG SPARK (CR9E) | OPT NGK

09482-00458

$6.47

20

SPARK PLUG (U27ESR-N) | OPT DENSO

09482-00459

$6.09

21

CAP,INSPECTION

11175-44B00

Unavailable

22

O RING

11177-44B01

$5.17

23

BOLT

01550-0620A

$1.97

24

PLUG (OD:30)

09241-25007

$6.17

25

PIPE,INTAKE

13110-32E00

$36.60

26

O RING (D:2.4,ID:45.7)

09280-46002

$10.49

27

SCREW (6X16)

09126-06014

$2.06

28

CLAMP

09402-58208

$5.36

29

BOLT (8X53)

09103-08332

$4.60

30

NUT

08319-3108A

$2.32

31

PAD,CYLINDER HEAD RUBBER

11151-32E00

$7.72
