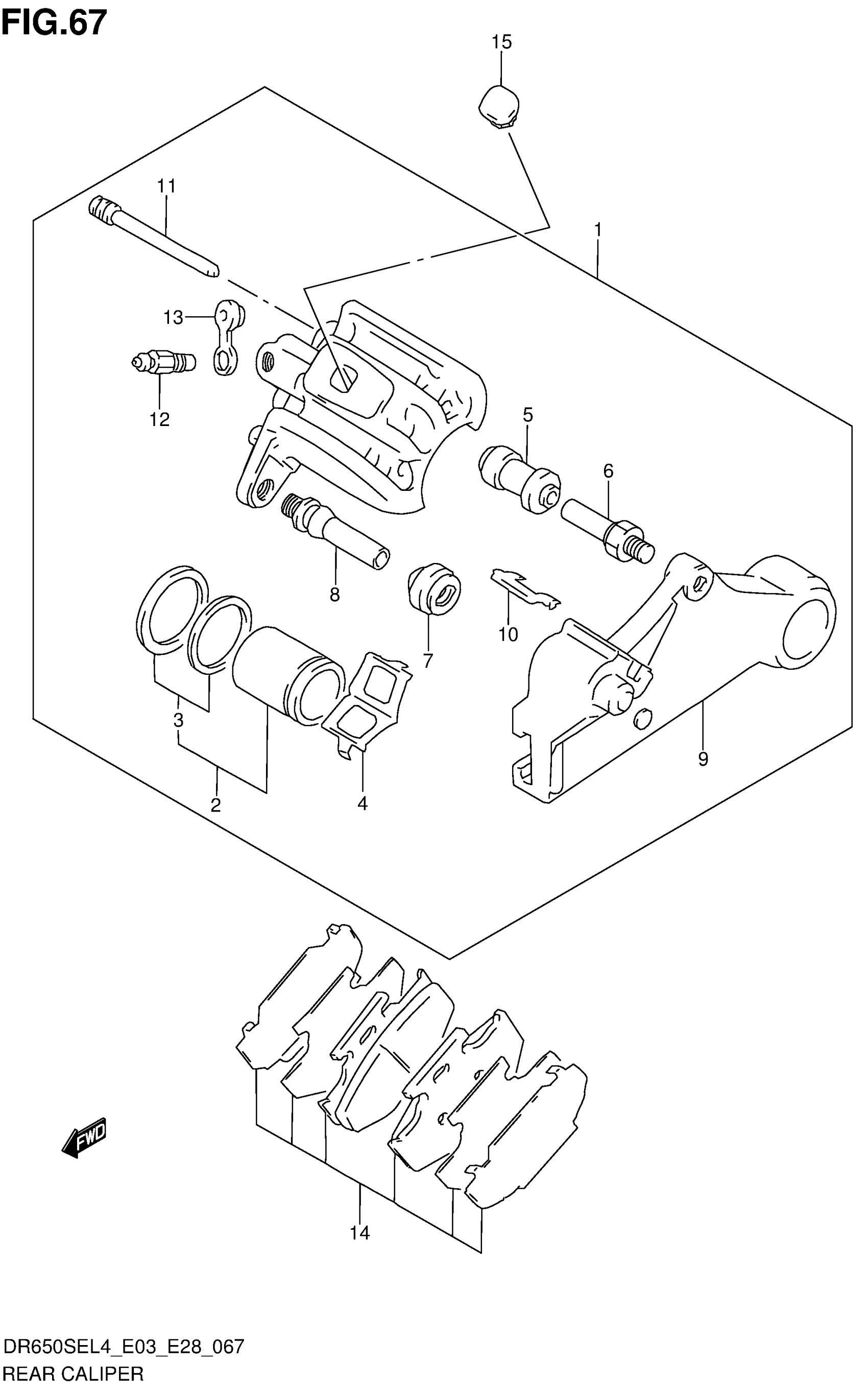

Suzuki DR650SEL4 (2014) REAR CALIPER Diagram

#

Description
Price

1

CALIPER ASSY,REAR

69100-32E00-999

$287.55

2

PISTON SET

69100-43830

$52.92

3

SEAL SET, PISTON

69100-13810

$9.61

4

SPRING

59315-27C10

$11.68

5

BOOT

59386-13A00

$7.95

6

PIN

59382-27C30

$9.07

7

BOOT

59303-14500

$5.52

8

PIN

59305-27C00

$23.48

9

BRACKET

69150-32E00

$151.08

10

RETAINER

69113-43D00

$8.83

11

.PIN HANGER

69345-43D00

$11.55

12

BLEEDER

59121-01A00

$8.73

13

CAP

59122-01A00

$4.34

14

PAD & SHIM SET

69100-32830

$59.36

15

COVER, CALIPER BODY

69171-14D00

Unavailable
