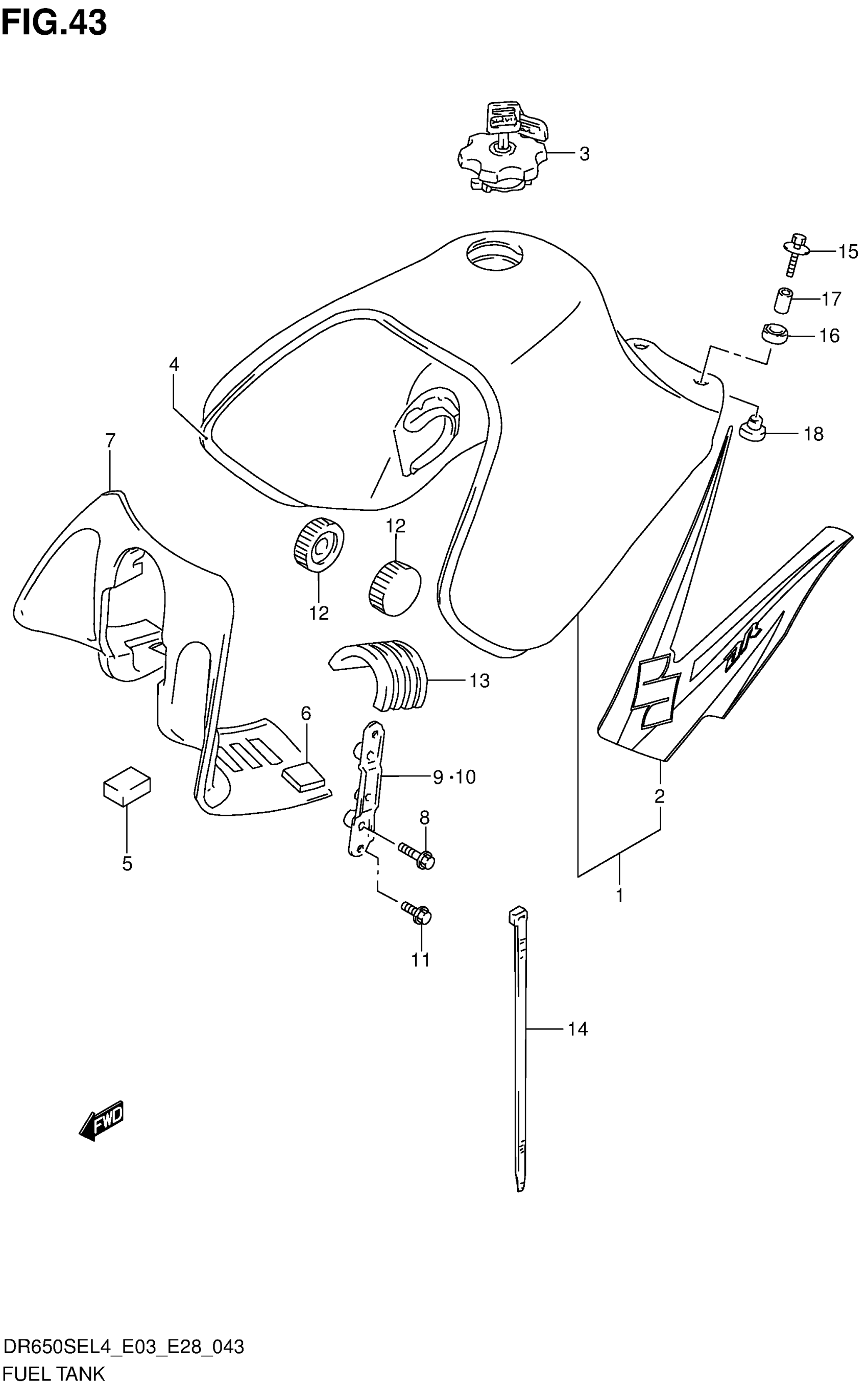

Suzuki DR650SEL4 (2014) FUEL TANK (DR650SEL4 E28) Diagram

#

Description
Price

1

TANK ASSY, FUEL (WHITE) | FOR 30H

44100-32ER0-5UX

Unavailable

1

TANK ASSY, FUEL (GRAY) | FOR YUD

44100-32ER0-YUD

Unavailable

2

TAPE SET | FOR 5UX

68110-32EC0-HLU

Unavailable

2

TAPE SET | FOR YUD

68110-32EC0-JJY

$197.90

3

CAP SET,FUEL TA This part replaces 44200-13830.

44200-13831

$130.18

4

MOLDING,FUEL TANK

68241-32E00

$56.05

5

CUSHION

51827-01A00

$6.17

6

CUSHION, TANK COVER

44831-17B00

$6.70

7

COVER,FUEL TANK,FRONT

44271-32E00

$57.77

8

BOLT (6X12)

09116-06210

$2.47

9

BRACKET, FRONT COVER RH

44280-32E00

Unavailable

10

BRACKET, FRONT COVER LH

44290-32E00

Unavailable

11

BOLT

01550-0625B

$2.42

12

CUSHION,FUEL TANK,FRONT

44511-12D00

$6.93

13

CUSHION, UPPER REAR

44541-13E00

$16.65

14

CLAMP (L:250)

09407-25402

$4.64

15

BOLT (6X30)

09116-06214

$2.50

16

CUSHION

09320-14022

$3.63

17

SPACER (6.5X9X18)

09180-06271

$2.35

18

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60
