Description

Price

1

COVER,FRAME RH (WHITE)

47111-32E10-30H

$137.28

1

NO DESCRIPTION AVAILABLE

4711132E10-YUD

Unavailable

2

SHIELD,FRAME COVER,R,NO.1

47166-32E00

$50.69

3

SHIELD,FRAME COVER,R,NO.2

47167-32E00

$23.65

4

COVER,FRAME LH (WHITE)

47211-32E10-30H

$137.28

4

COVER, FRAME LH (GRAY)

47211-32E10-YUD

$142.00

5

TAPE,FRAME COVE | FOR 30H This part replaces 68135-32E50-HLW.

68135-32E51-HLW

$26.57

5

TAPE,FRAME COVE | FOR YUD This part replaces 68135-32E50-JJZ.

68135-32E51-JJZ

$25.60

6

TAPE,FRAME COVE | FOR 30H This part replaces 68145-32E50-HLW.

68145-32E51-HLW

$26.57

6

TAPE,FRAME COVE | FOR YUD This part replaces 68145-32E50-JJZ.

68145-32E51-JJZ

$28.03

7

TAPE, NO.2, LH

68146-32E00

$15.08

8

SCREW

02142-0616A

$1.49

9

WASHER This part replaces 09169-06031.

09169-06041

$2.20

10

CUSHION, MUFFLER

09321-10019

$4.90

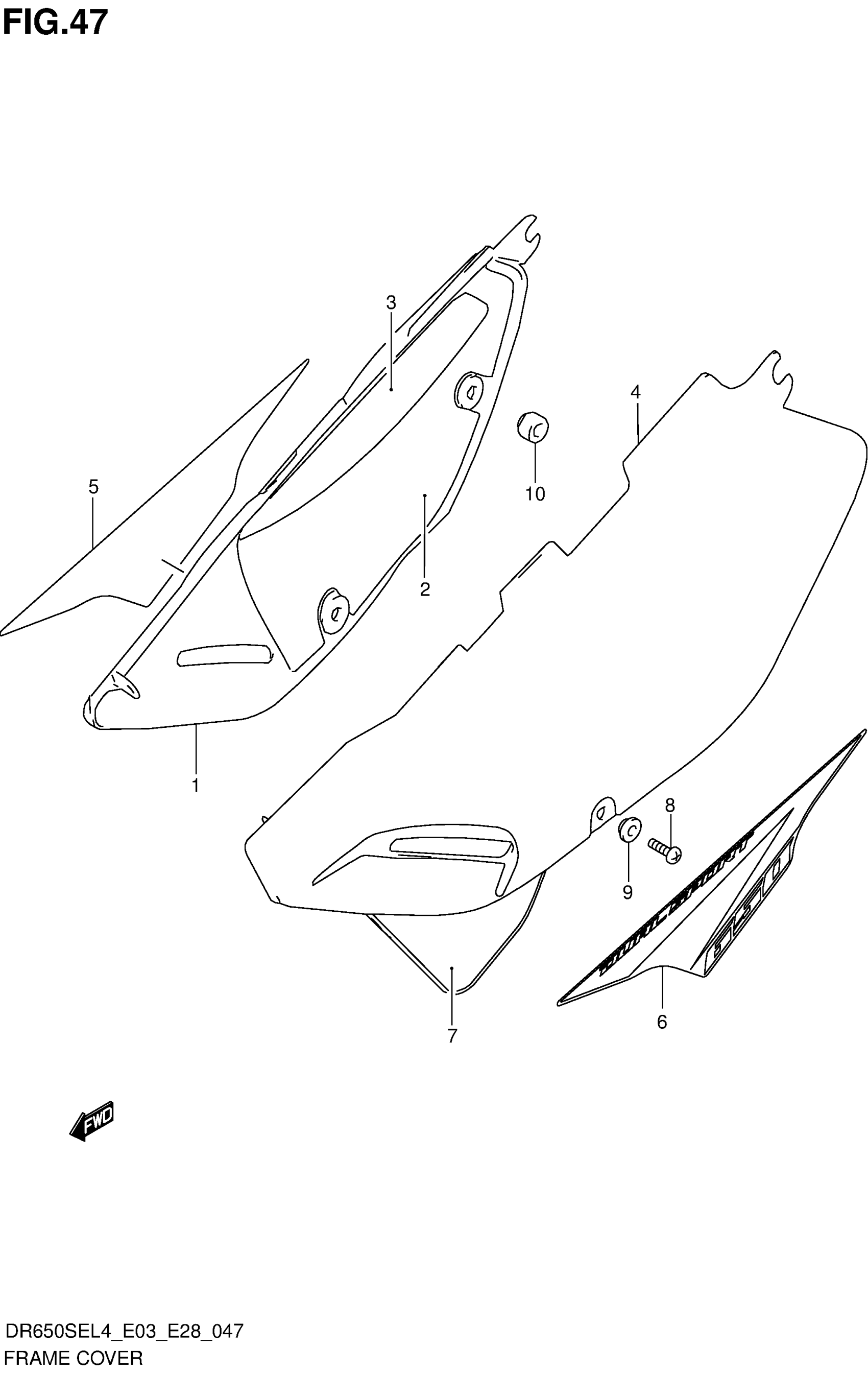

Suzuki DR650SEL4 (2014) FRAME COVER Diagram
