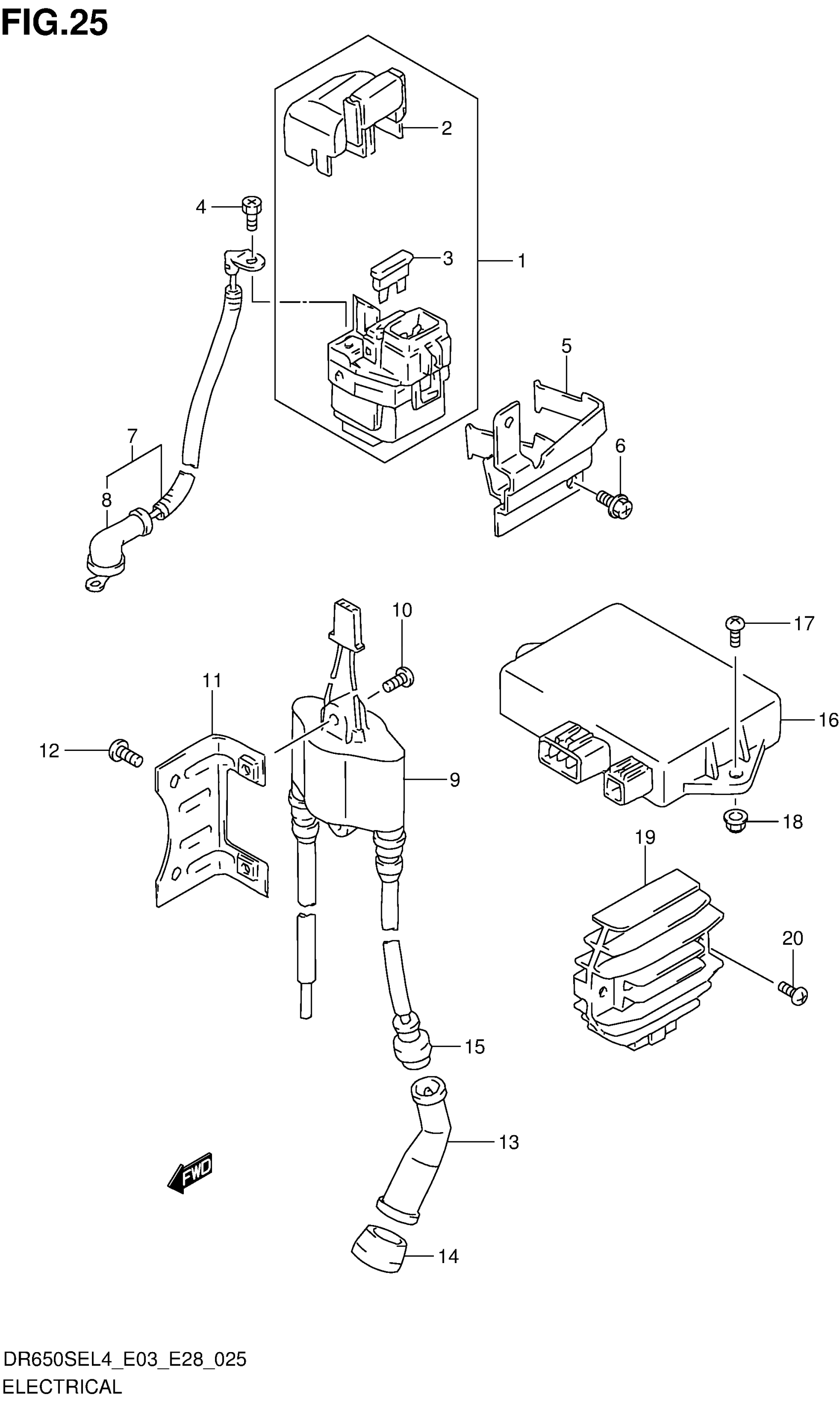

Suzuki DR650SEL4 (2014) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY, STARTING MOTOR

31800-26E00

$97.31

2

COVER ASSY

31861-26E00

$4.16

3

FUSE (30A)

09481-30101

$2.26

4

SCREW (6X8)

09128-06013

$1.49

5

BRACKET,STG MOT RLY

31890-32E00

Unavailable

6

SCREW

02162-0608B

$2.53

7

WIRE,STARTER MOTOR

33810-32E00

$22.46

8

CAP, STARTER MOTOR

31861-48B10

$6.55

9

COIL ASSY,IGNITION

33410-32E00

$167.20

10

SCREW

02142-0625B

$2.10

11

BRACKET,IGNITION COIL

33416-32E00

Unavailable

12

SCREW

02142-0610B

$2.15

13

CAP, SPARK PLUG OUTER

33510-43010

$24.99

14

SEAL, PLUG

33541-47D00

$7.83

15

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

16

CDI UNIT

32900-32E10

$988.23

17

SCREW

02162-0620B

$2.28

18

NUT

08319-3106B

$2.45

19

RECTIFIER ASSY

32800-32E00

$278.28

20

SCREW

02162-0620B

$2.28
