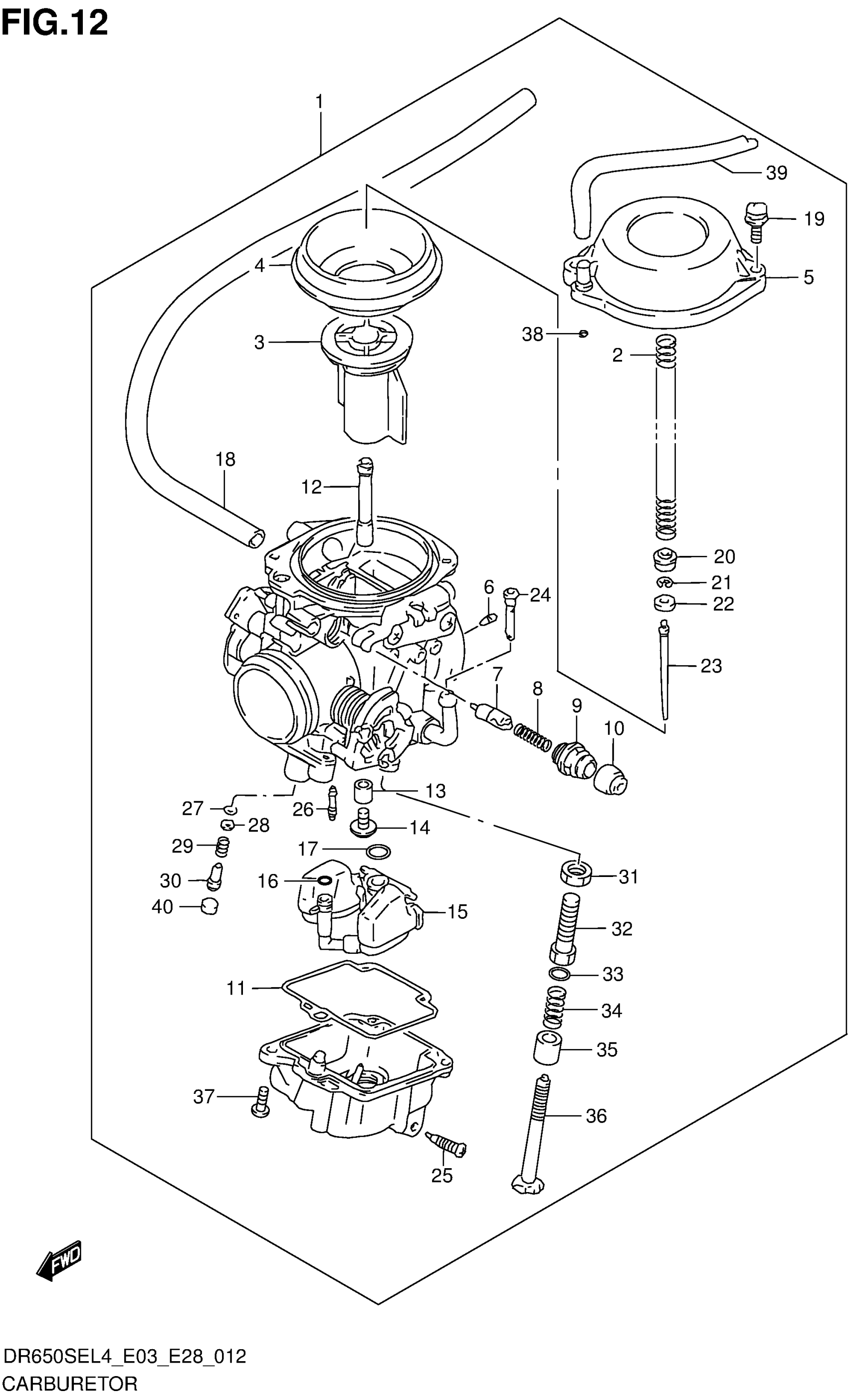

Suzuki DR650SEL4 (2014) CARBURETOR (DR650SEL4 E28) Diagram

#

Description
Price

1

CARBURETOR ASSY

13200-32E12

$1,082.97

2

SPRING

13417-17D00

$6.75

3

VALVE, PISTON

13501-32E00

$101.87

4

.DIAPHRAGM This part replaces 13507-07D01.

13507-07D02

$34.55

5

COVER, DIAPHRAGM

13502-41C00

$55.78

6

JET, PILOT AIR (1.0)

09493-20007

$15.43

7

PLUNGER ASSY

13411-12D00

$29.97

8

SPRING

13417-22010

$3.26

9

HOLDER, GUIDE

13418-43410

$6.61

10

.CAP This part replaces 13681-04010.

13681-04011

$4.51

11

GASKET, FLOAT CHAMBER

13258-44B00

$8.95

12

JET, NEEDLE (Y-5M)

09494-00884

$56.43

13

RING

13331-07D00

$7.48

14

.JET, MAIN (#140)

09491-28010

$12.38

15

FLOAT/NEEDLE VALVE ASSY

13250-12EH0

$127.30

16

.O RING

13374-46710

$4.09

17

O RING

13374-35C00

$5.48

18

.HOSE This part replaces 13683-32E00.

13683-32E01

$13.67

19

SCREW

02112-7516A

$2.42

20

RING

13331-12D00

$7.48

21

E RING

13394-31210

$4.37

22

RING

13387-07D00

$5.12

23

NEEDLE, JET (6F23-1)

13383-32E10

$20.82

24

FILTER

13236-12C00

$9.73

25

SCREW, DRAIN This part replaces 13247-13A00.

13247-02340

$4.56

26

.JET, PILOT (#42.5)

09492-42010

$8.42

27

O-RING This part replaces 13295-29900.

13295-29901

$3.97

28

WASHER

13291-29900

$1.87

29

.SPRING (NT:45)

13268-47070

$3.97

30

SCREW, PILOT (1,1/2)

13279-47070

$12.24

31

NUT This part replaces 13607-37010.

08310-00087

$1.83

32

ADJUSTER

13267-31D00

$38.62

33

WASHER

13615-43010

$3.67

34

SPRING

13271-33C00

$7.98

35

RING

13432-95210

$8.32

36

ADJUSTER

13267-31D10

$20.87

37

SCREW

13601-05148-XC0

$2.85

38

O RING

13278-02340

$1.91

39

HOSE(4.5X8.5X60 This part replaces 09355-45855-600.

09355-45001-600

$8.55

40

PLUG

13281-05A00

$4.21
