Description

Price

1

HUB,FRONT WHEEL

54111-31D01

$310.70

2

SPACER,FRONT HUB BEARING

54731-32E00

$18.50

3

BEARING

08123-60037

$21.77

4

OIL SEAL (23X35X6) | LH

09284-23001

$8.01

5

AXLE, FRONT

54711-05D01

$97.62

6

SPACER, AXLE, LH

54751-05D00

$19.55

7

BOX ASSY,SPEEDOMETER GEAR This part replaces 54600-05D00.

54600-05D01

$127.20

8

DISC,FRONT BRAKE

59220-32E00

$608.13

9

BOLT (8X20)

09106-08155

$3.76

10

TIRE,FRONT (90/90-21 54S) This part replaces 55110-32E00.

55110-32E01

$81.89

11

TUBE ASSY, WHEEL INNER

55200-32E01

$58.75

12

PROTECTOR WHL INR TUBE

55261-32E01

$5.64

13

RIM, FRONT WHEEL (1.85X21)

55311-44B00

$488.28

14

SPOKE SET,FRONT WHEEL

55320-31D00

$103.33

15

BALANCER, WHEEL (20G)

55412-41F00

$8.12

15

BALANCER WHEEL (30G)

55413-41F00

$7.50

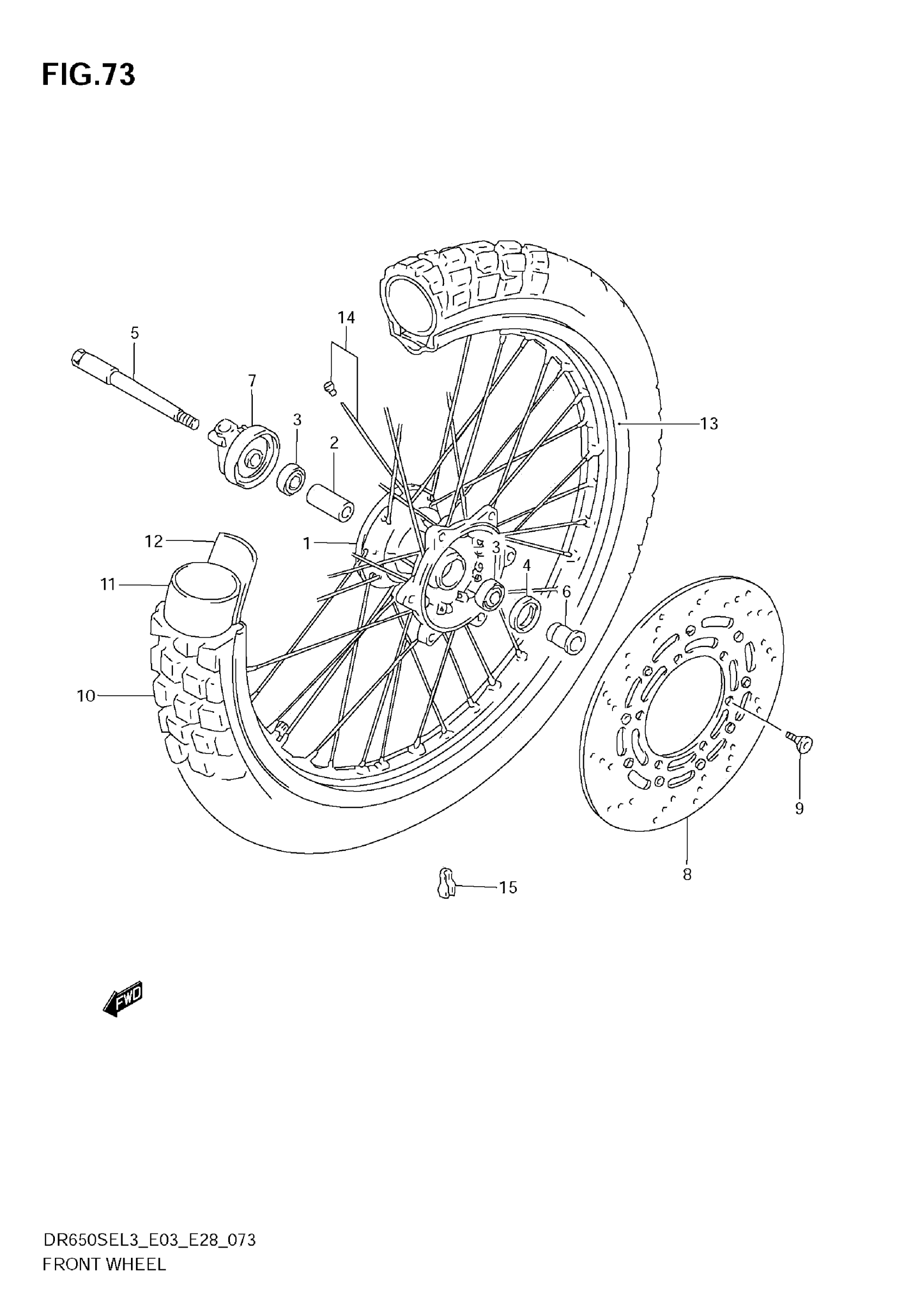

Suzuki DR650SEL3 (2013) FRONT WHEEL Diagram
