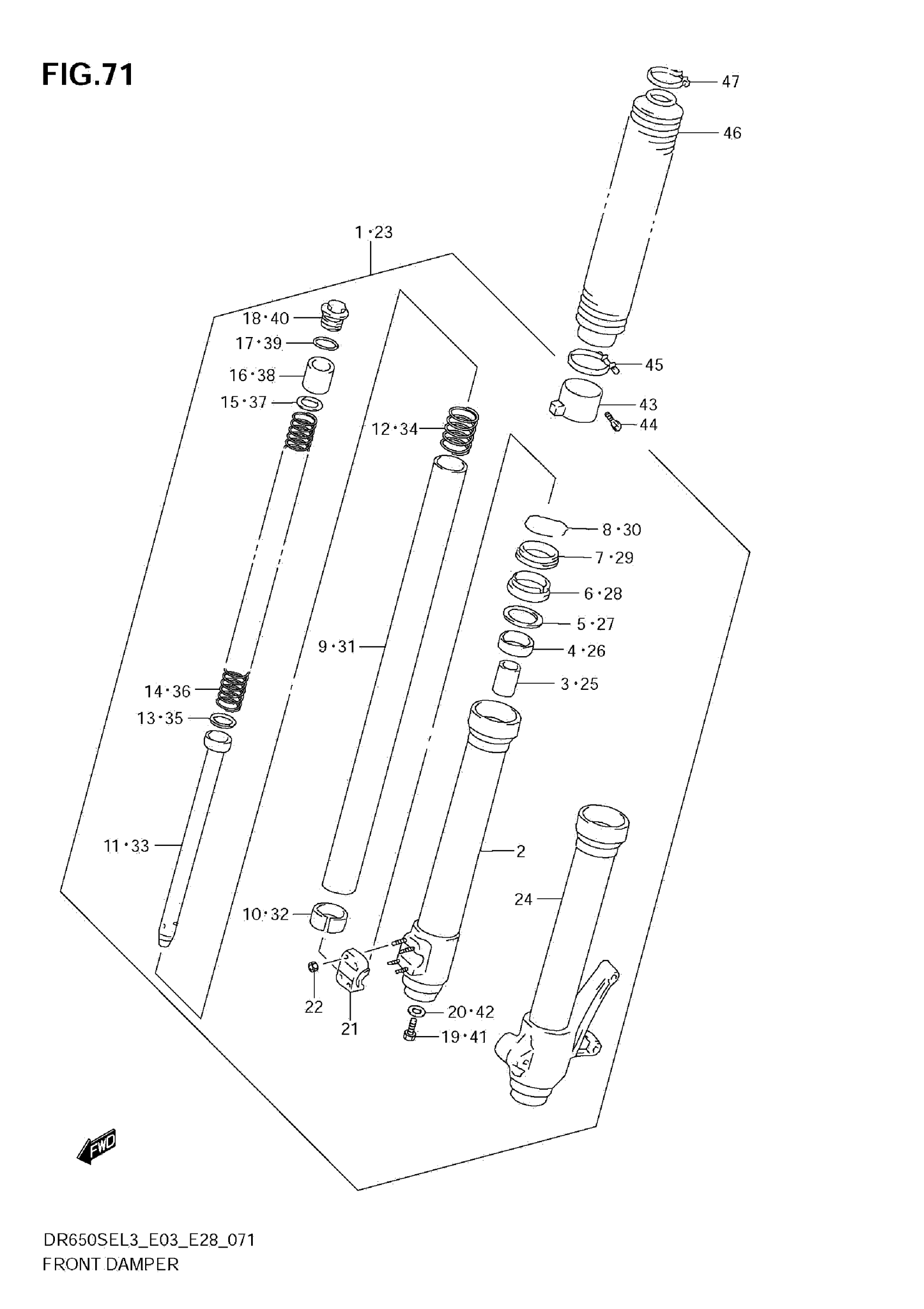

Suzuki DR650SEL3 (2013) FRONT DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-32E00

Unavailable

2

TUBE, OUTER RH

51130-32E00

$615.05

3

PIECE, OIL LOCK

51195-06C00

$16.76

4

METAL, SLIDE

51167-40C00

$16.13

5

WASHER

51158-14200

$5.05

6

OIL SEAL

51153-14330

$13.63

7

SEAL, DUST

51173-14330

$10.53

8

RING, SNAP

51156-14200

$5.05

9

TUBE, INNER

51110-32E00

$583.83

10

PISTON

51121-40C00

$21.09

11

CYLINDER

51190-32E00

Unavailable

12

SPRING

51177-14330

$10.32

13

RING

51196-31D00

$7.51

14

SPRING

51171-32E00

Unavailable

15

WASHER

51172-32E00

$5.70

16

SPACER

51176-32E00

$40.33

17

.O RING This part replaces 51117-14200.

51117-14201

$2.47

18

CAP

51351-31D00

$65.60

19

BOLT

51147-16510

$4.34

20

GASKET

51148-41310

$2.26

21

HOLDER, AXLE RH

51132-32E00

$63.30

22

NUT

08316-10067

$2.25

23

DAMPER ASSY, FRONT FORK LH

51104-32E00

Unavailable

24

TUBE, OUTER LH

51140-32E00

$615.05

25

PIECE, OIL LOCK

51195-06C00

$16.76

26

METAL, SLIDE

51167-40C00

$16.13

27

WASHER

51158-14200

$5.05

28

OIL SEAL

51153-14330

$13.63

29

SEAL, DUST

51173-14330

$10.53

30

RING, SNAP

51156-14200

$5.05

31

TUBE, INNER

51110-32E00

$583.83

32

PISTON

51121-40C00

$21.09

33

CYLINDER

51190-32E00

Unavailable

34

SPRING

51177-14330

$10.32

35

RING

51196-31D00

$7.51

36

SPRING

51171-32E00

Unavailable

37

WASHER

51172-32E00

$5.70

38

SPACER

51176-32E00

$40.33

39

.O RING This part replaces 51117-14200.

51117-14201

$2.47

40

CAP

51351-31D00

$65.60

41

BOLT

51147-16510

$4.34

42

GASKET

51148-41310

$2.26

43

GUIDE,BOOT This part replaces 51203-32E00.

51203-32E01

$40.00

44

BOLT

07130-05207

$3.03

45

BAND,BOOT,LOWER

51576-00B00

$12.48

46

BOOT,FRONT FORK This part replaces 51571-32E00-019.

51571-32E01

$64.43

47

BAND,BOOT

51575-32E00

$15.83
