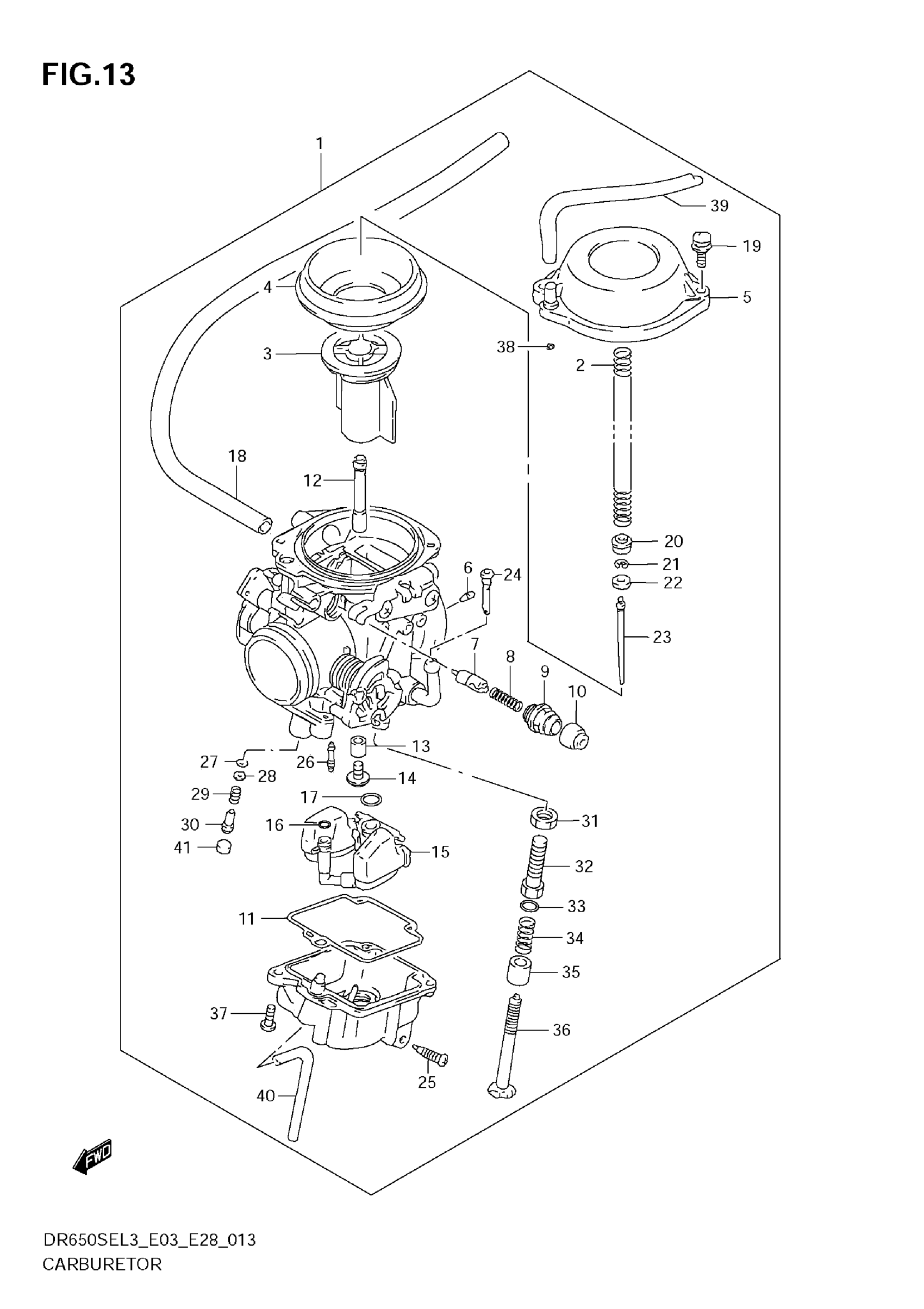

Suzuki DR650SEL3 (2013) CARBURETOR (DR650SEL3 E33) Diagram

#

Description
Price

1

CARBURETOR ASSY

13200-32E61

$1,029.70

2

SPRING

13417-17D00

$7.18

3

VALVE, PISTON

13501-32E00

$90.25

4

.DIAPHRAGM This part replaces 13507-07D01.

13507-07D02

$26.78

5

COVER, DIAPHRAGM

13502-41C00

$49.42

6

JET, PILOT AIR (1.0)

09493-20007

$14.20

7

PLUNGER ASSY

13411-12D00

$26.55

8

SPRING

13417-22010

$3.56

9

HOLDER, GUIDE

13418-43410

$7.22

10

.CAP This part replaces 13681-04010.

13681-04011

$4.93

11

GASKET, FLOAT CHAMBER

13258-44B00

$9.78

12

JET, NEEDLE (Y-5M)

09494-00884

$51.93

13

RING

13331-07D00

$6.63

14

.JET, MAIN (#140)

09491-28010

$9.69

15

FLOAT/NEEDLE VALVE ASSY

13250-12EH0

$116.02

16

.O RING

13374-46710

$4.48

17

O RING

13374-35C00

$5.99

18

.HOSE This part replaces 13683-32E00.

13683-32E01

$12.12

19

SCREW

02112-7516B

$2.25

20

RING

13331-12D00

$6.63

21

E RING

13394-31210

$4.64

22

RING

13387-07D00

$5.44

23

NEEDLE, JET (6F23-1)

13383-32E10

$15.68

24

FILTER

13236-12C00

$10.34

25

SCREW, DRAIN This part replaces 13247-13A00.

13247-02340

$4.99

26

.JET, PILOT (#42.5)

09492-42010

$9.32

27

O-RING This part replaces 13295-29900.

13295-29901

$4.34

28

WASHER

13291-29900

$1.98

29

.SPRING (NT:45)

13268-47070

$4.34

30

SCREW, PILOT (1,1/2)

13279-47070

$13.36

31

NUT This part replaces 13607-37010.

08310-00087

$2.13

32

ADJUSTER

13267-31D00

$34.22

33

WASHER

13615-43010

$3.25

34

SPRING

13271-33C00

$6.03

35

RING

13432-95210

$7.37

36

ADJUSTER

13267-31D10

$18.48

37

SCREW

13601-05148-XC0

$3.11

38

O RING

13278-02340

$1.91

39

HOSE(4.5X8.5X60 This part replaces 09355-45855-600.

09355-45001-600

$9.48

40

HOSE(3X5X450) This part replaces 13684-32E10.

13684-32E11

$8.98

41

PLUG

13281-05A00

$4.60
