Find the part on the Rear Swingingarm diagram for your 2011 Suzuki DR650SEL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

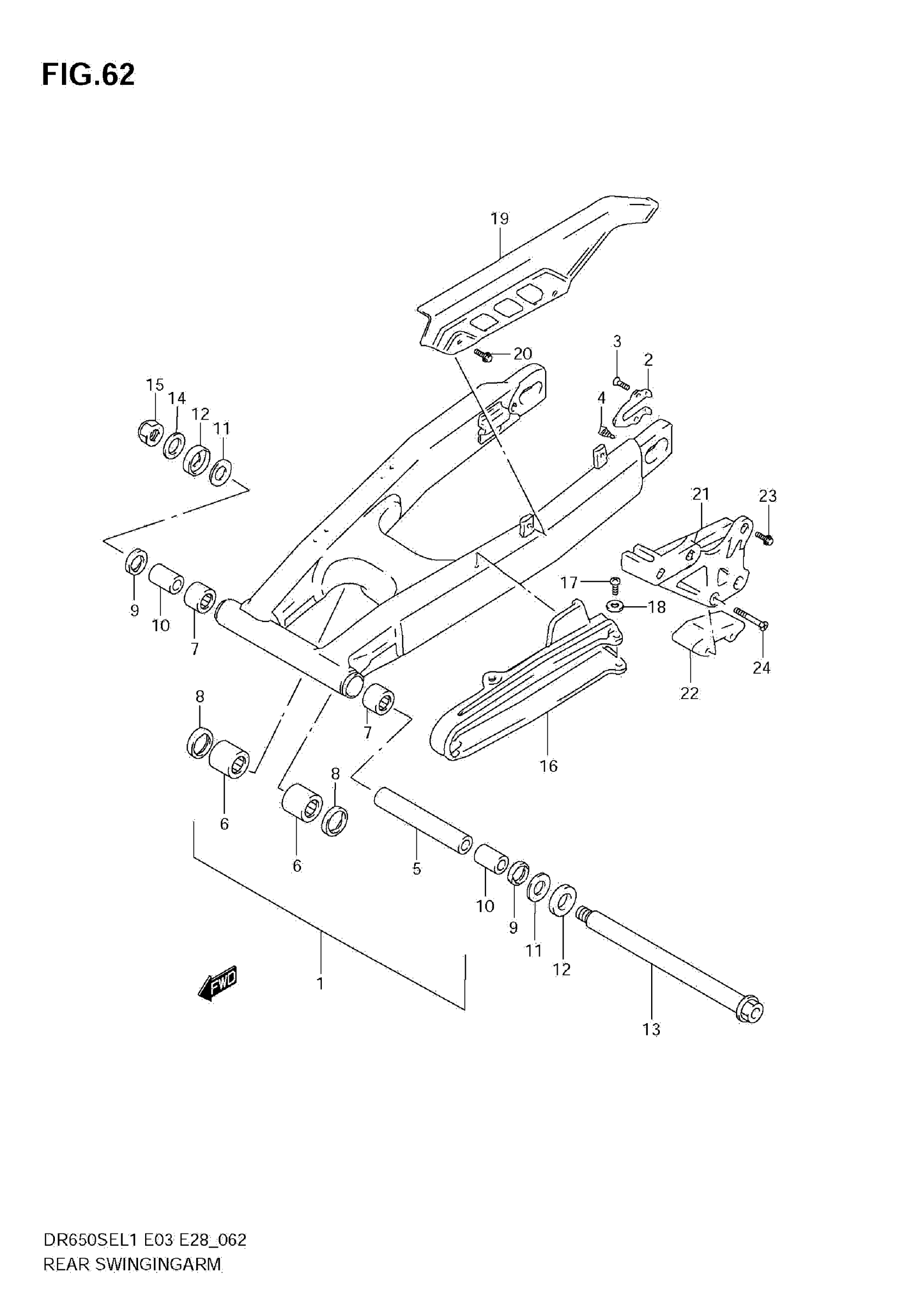

2011 Suzuki DR650SEL1 Rear Swingingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWINGING ARM ASSY, REAR This part replaces 61000-32E00.

61000-32E20

1
Out of stock

2

1

$24.33

In stock

3

SCREW (5X8)

09126-05009

2

$2.48

In stock

4

BOLT, STOPPER (10X17)

61431-13E00

2
Out of stock

5

SPACER, PIVOT

61282-32E00

1
Out of stock

6

BEARING (20X27X23.5)

09263-20071

2
Out of stock

7

BEARING (22X29X30)

09263-22017

2
Out of stock

8

OIL SEAL (20X27X5)

09283-20031

2
Out of stock

10

SPACER, PIVOT BEARING

61251-14D00

2
Out of stock

11

WASHER

08211-17341

2
Out of stock

12

COVER,DUST This part replaces 61262-28C10.

61262-28C11

2
Out of stock

13

AXLE,REAR

64711-08D00

1
Out of stock

14

WASHER

08322-0116B

1

$2.95

In stock

15

NUT

09159-16007

1
Out of stock

16

BUFFER,CHAIN TOUCH DEFENSE

61273-13E01

1
Out of stock

17

SCREW

02142-0612B

3
Out of stock

18

WASHER

09169-06057

3
Out of stock

19

CASE, CHAIN

61311-01A03

1
Out of stock

20

BOLT (6X10)

09116-06096

2
Out of stock

21

GUIDE, CHAIN

61340-15E00

1
Out of stock

22

DEFENSE, CHAIN GUIDE

61348-15E00

1
Out of stock

23

BOLT

01550-0616B

3
Out of stock

24

SCREW

02122-0650B

2
Out of stock
