2011 Suzuki DR650SEL1 Rear Cushion Lever Diagram

← All diagrams

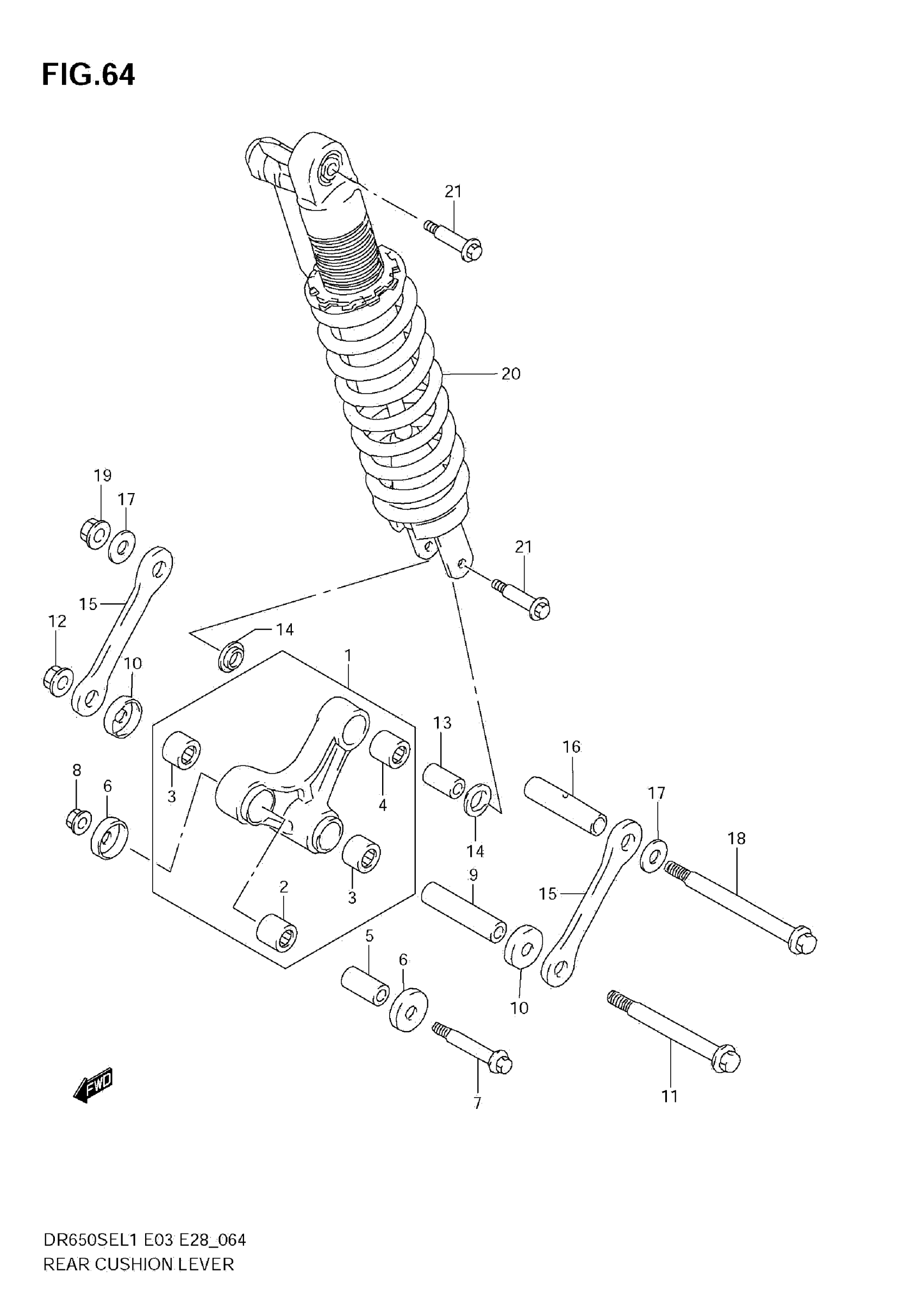

Find the part on the Rear Cushion Lever diagram for your 2011 Suzuki DR650SEL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Suzuki DR650SEL1 Rear Cushion Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER SET,REAR CUSHION This part replaces 62600-32840.

62600-32841

1
Out of stock

2

.BEARING (20X27X30) This part replaces 09263-20073.

09263-20121

1
Out of stock

3

BEARING (21X27X20)

09263-21012

2
Out of stock

4

BEARING (17X24X20)

09263-17027

1
Out of stock

5

SPACER, FRONT (12X20X34)

62317-27C10

1
Out of stock

6

SEAL, DUST This part replaces 62162-28E00.

62162-28E01

2
Out of stock

7

BOLT, FRONT (12X65)

62658-01C60

1
Out of stock

8

NUT

08319-3112A

1
Out of stock

9

SPACER,RR CUSHION LEVER CENTE

62626-13E00

1
Out of stock

10

SEAL,RR CUSHION LEVER CENTER

62682-13E00

2
Out of stock

11

BOLT, CENTER (14X109)

62621-27C20

1
Out of stock

12

NUT

08319-3114A

1
Out of stock

13

SPACER, REAR (10X17X30)

62684-40A10

1
Out of stock

14

SEAL, REAR DUST

62624-13E00

2
Out of stock

15

ROD,REAR CUSHION LEVER

62641-32E00

2
Out of stock

16

SPACER, ROD (14X20X74)

62626-14D00

1
Out of stock

17

WASHER

08211-14321

2
Out of stock

18

BOLT, ROD (14X112)

62621-17C00

1
Out of stock

19

NUT

08319-3114A

1
Out of stock

20

ABSORBER ASSY, REAR SHOCK (WHITE)

62100-32E01-28W

—
Out of stock

21

BOLT (10X48)

62648-14500

2
Out of stock
