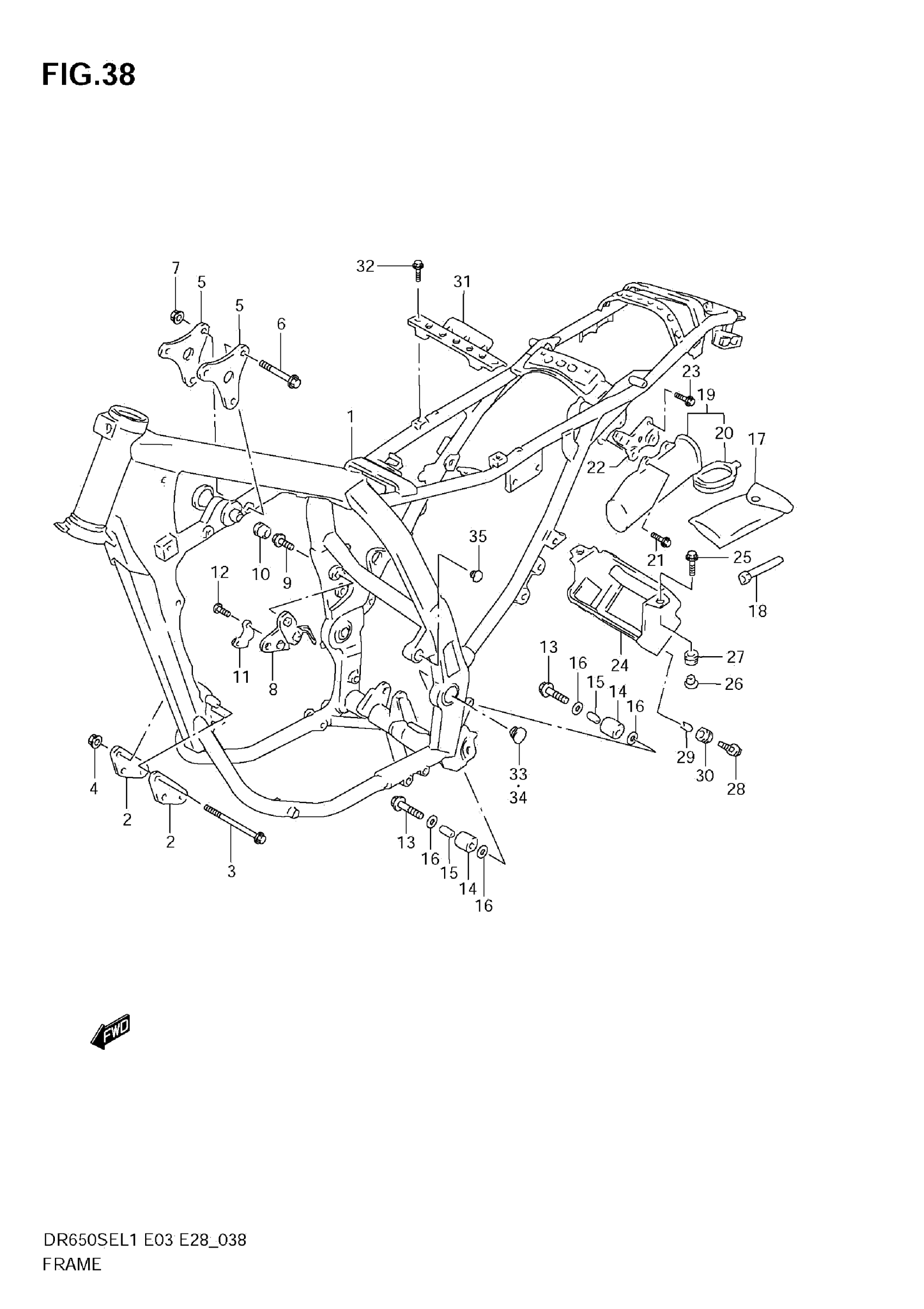

Suzuki DR650SEL1 (2011) FRAME (E33) Diagram

#

Description
Price

1

FRAME (GRAY)

41100-32E20-YPT

Unavailable

2

PLATE, ENG MTG, FRONT

41911-32E00

$18.17

3

BOLT (8X100)

09103-08139

$7.90

4

NUT

08319-3108A

$2.32

5

PLATE, ENG MTG, UPPER

41991-32E00

$36.25

6

.BOLT (8X55)

09103-08339

$3.49

7

NUT

08319-3108A

$2.32

8

PLATE,ENG MTG,REAR RH (BLACK)

41930-32E00-019

Unavailable

9

BOLT

01550-0820B

$2.83

10

PLUG

09250-20012

$9.00

11

BRACKET,STOP SWITCH

43251-32E00

Unavailable

12

SCREW

02162-0616B

$2.03

13

BOLT (8X38)

09103-08178

$4.69

14

ROLLER CHAIN CONTROL UPR

43911-13E00

$21.84

15

SPACER This part replaces 09180-08119.

09180-08156

$6.70

16

WASHER

08211-08201

$2.03

17

TOOL ASSY This part replaces 09800-21034.

09800-21084

$41.57

18

BOX SPANNER 16

09816-00100

Unavailable

19

HOLDER,TOOL

41550-32E00

$72.82

20

CAP

41552-37210

$9.78

21

BOLT (6X16)

09116-06006

$1.86

22

BRACKET,TOOL HOLDER

47440-32E00

$17.03

23

BOLT

01550-0616B

$2.48

24

HOLDER,BATTERY

41540-32E00

Unavailable

25

BOLT (6X20)

09116-06167

$2.19

26

WASHER

09169-06065

$4.32

27

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97

28

BOLT (6X16)

09116-06213

$3.15

29

SPACER (6.1X9X7.5)

09180-06038

$1.98

30

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97

31

PLATE,BATTERY FITTING

41561-32E00

$22.60

32

BOLT

01550-0610B

$2.42

33

PLUG,FRAME PIVOR RH

43585-32E00

$4.55

34

PLUG,FRAME PIVOR LH

43595-32E00

$4.55

35

PLUG,FRAME BOSS

43586-32E00

$4.88
