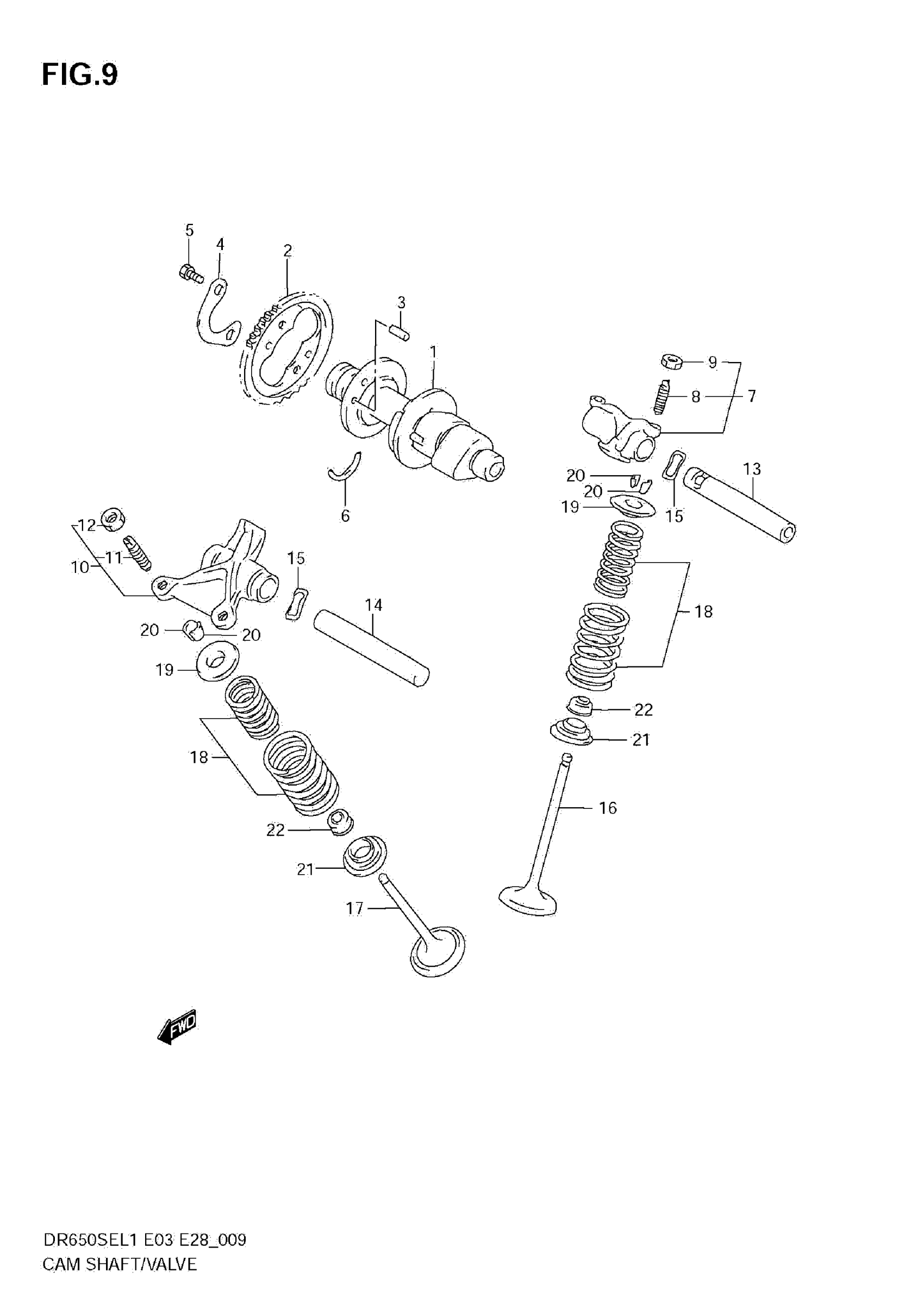

Suzuki DR650SEL1 (2011) CAM SHAFT/VALVE Diagram

#

Description
Price

1

CAMSHAFT

12710-32E01

$444.48

2

SPROCKET | NT:38

12741-32E00

$51.17

3

PIN

09261-05005

$1.49

4

WASHER,SPROCKET

12747-44B00

$2.72

5

BOLT (6X10.5)

09100-06166

$3.03

6

C-RING

09390-22002

$2.27

7

ARM,VALVE ROCKER,IN

12840-32E00

$100.02

8

SCREW

12842-38A00

$6.17

9

.NUT, ADJUSTING SCREW

12843-32400

$2.79

10

ARM,VALVE ROCKER,EX

12850-32E00

$100.02

11

SCREW

12842-38A00

$6.17

12

.NUT, ADJUSTING SCREW

12843-32400

$2.79

13

SHAFT,VALVE ROCKER ARM,IN

12861-14D50

$30.93

14

SHAFT, ROCKER ARM EX

12871-14D50

$28.27

15

WASHER

09164-12018

$1.49

16

VALVE, INTAKE

12911-19B00

$39.48

17

VALVE, EXHAUST

12912-42A00

$63.46

18

SPRING SET, VALVE

12920-32E00

$16.87

19

RETAINER

12931-33201

$8.28

20

COTTER, VALVE

12932-24400

$1.94

21

SEAT,VALVE SPRING

12933-81400

$5.17

22

OIL SEAL (5.5X11X8.2)

09289-05015

$6.70
