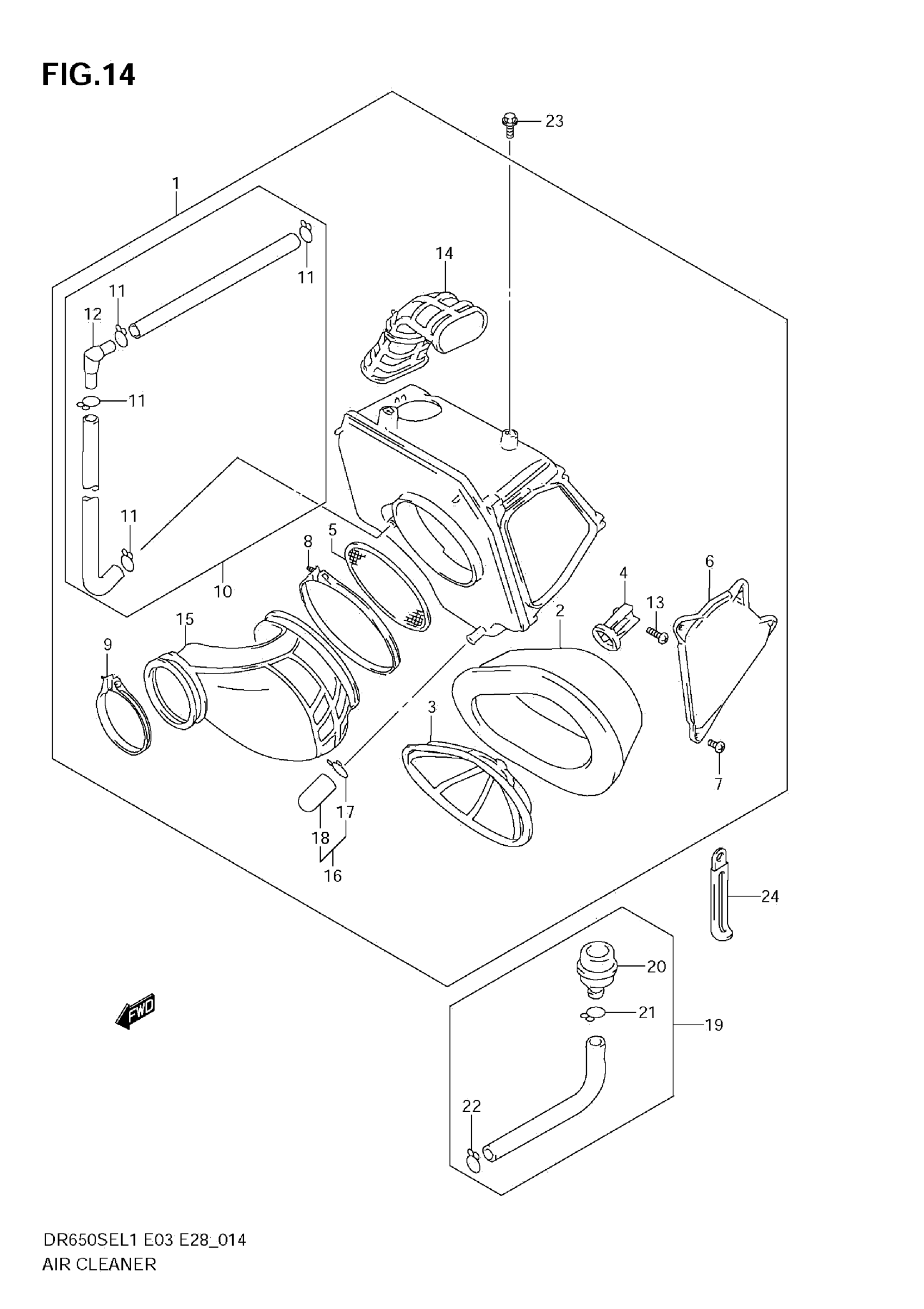

Suzuki DR650SEL1 (2011) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY,AIR

13700-32E00

$431.67

2

FILTER

13780-32E00

$46.54

3

HOLDER

13791-32E00

$21.79

4

STOPPER

13792-32E00

$7.72

5

TRAP, FRAME

13810-14D02

$11.63

6

CAP

13740-32E00

$30.11

7

SCREW

02142-0512A

$1.49

8

.CLAMP, OUTLET TUBE

13826-14D01

$9.32

9

CLAMP

09402-64203

$6.58

10

TUBE ASSY, BREATHER

13850-32E00

$35.11

11

CLIP

09401-14301

$2.35

12

JOINT

13858-14D20

$7.22

13

SCREW

02142-0620A

$1.49

14

TUBE, INLET

13891-32E00

$53.92

15

TUBE, OUTLET

13881-32E00

$96.22

16

PLUG ASSY, DRAIN

13856-19B03

$10.95

17

CLIP

09401-14101

$2.34

18

.PLUG

13859-41B10

$7.38

19

CLEANER ASSY,AIR,NO.2

13800-32E00

$56.93

20

FILTER

18780-32E00

$29.28

21

CLIP

09401-16401

$3.14

22

CLIP

09401-14301

$2.35

23

BOLT

01550-0612B

$2.39

24

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74
