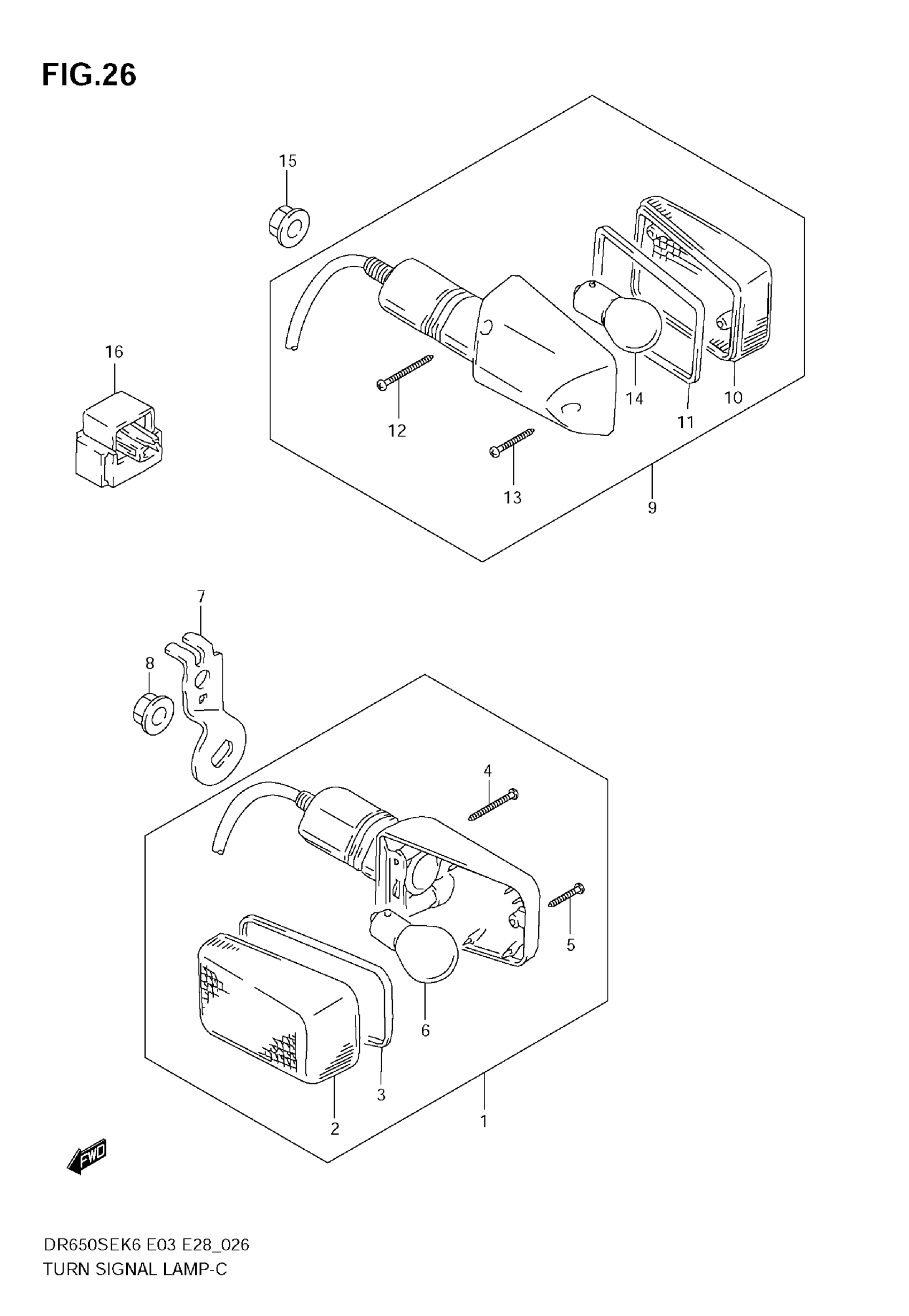

Suzuki DR650SE (2009) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY,FRONT TURNSIGNAL | Includes Item(s) 2 - 6

35601-29E30

$112.35

2

LENS

35612-17C20

$10.23

3

GASKET

35613-27A00

$4.46

4

TAPPING SCREW, 3X30

35623-27A00

$1.87

5

TAPPING SCREW, 3X20

35725-40511

$1.86

6

BULB (12V,21W)

09471-12045

$3.06

7

BRACKET,FRONT RH

35671-32E00

$12.03

7

BRACKET,FRONT LH

35681-32E00

$11.98

8

NUT

08316-1010B

$2.74

9

LAMP ASSY,REAR TURNSIGNAL | Includes Item(s) 10 - 14

35603-29E90

$83.07

10

LENS

35652-17C20

$10.12

11

GASKET

35613-27A00

$4.46

12

TAPPING SCREW, 3X30

35623-27A00

$1.87

13

TAPPING SCREW, 3X20

35725-40511

$1.86

14

BULB (12V,21W)

09471-12045

$3.06

15

NUT

08316-1010B

$2.74

16

RELAY ASSY This part replaces 38610-26E00.

38610-26E01

$66.55
