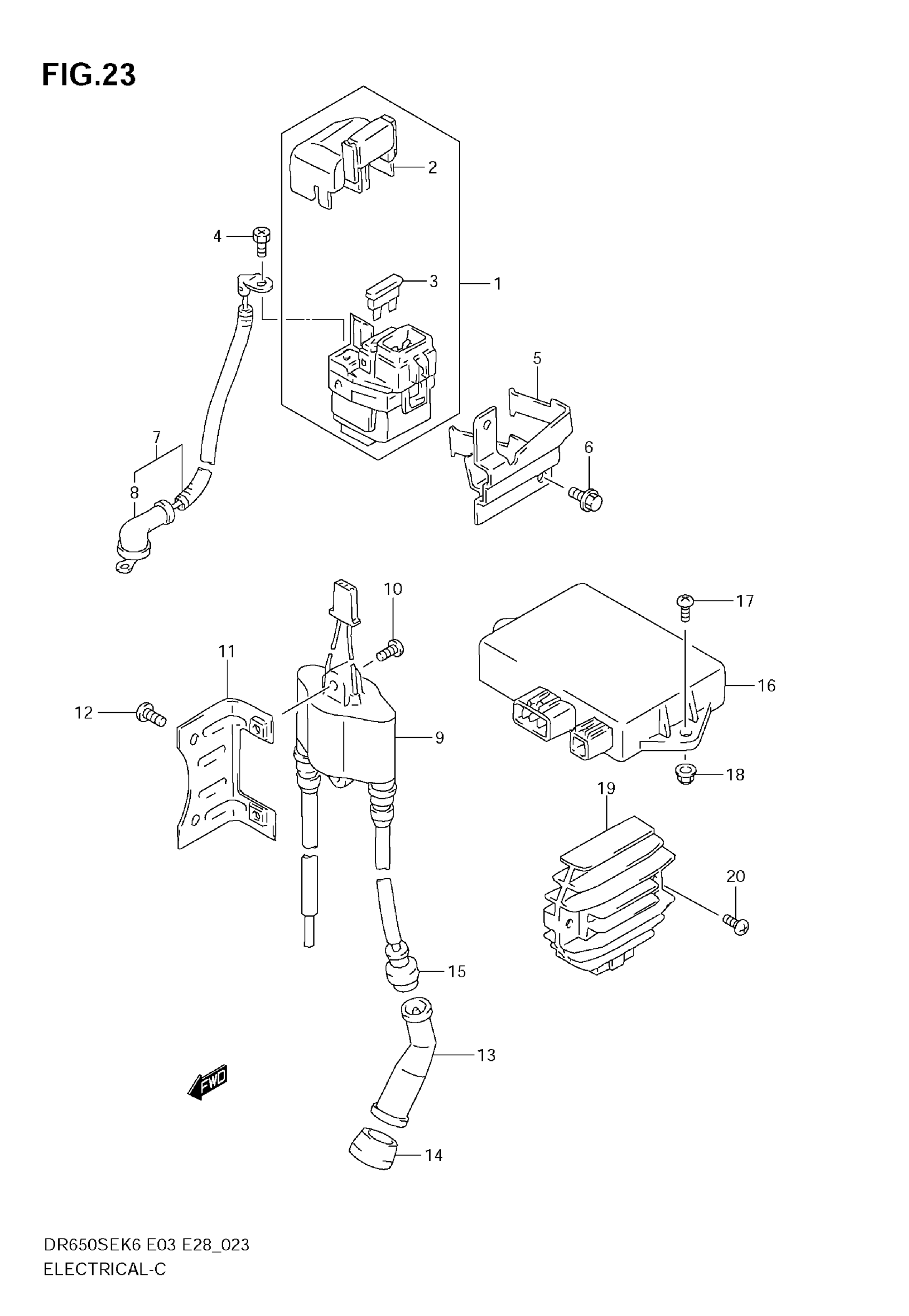

Suzuki DR650SE (2009) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY, STARTING MOTOR | Includes Item(s) 2 - 3

31800-26E00

$89.07

2

COVER ASSY

31861-26E00

$3.92

3

FUSE (30A)

09481-30101

$2.28

4

BOLT (6X8)

09128-06013

$1.24

5

BRACKET,STG MOT RLY

31890-32E00

Unavailable

6

BOLT, STARTING MOTOR | MODEL K6/K7

09103-06078

$1.95

6

BOLT, STARTING MOTOR | MODEL K8/K9

02162-0608B

$2.77

7

WIRE,STARTER MOTOR | Includes Item(s) 8

33810-32E00

$25.35

8

CAP, STARTER MOTOR

31861-48B10

$7.40

9

COIL ASSY,IGNITION

33410-32E00

$155.96

10

SCREW, IGNITION COIL

02142-0625B

$2.28

11

BRACKET,IGNITION COIL

33416-32E00

Unavailable

12

SCREW, BRACKET

02142-0610B

$2.35

13

CAP, SPARK PLUG OUTER

33510-43010

$22.88

14

SEAL, PLUG

33541-47D00

$7.16

15

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$3.97

16

CDI UNIT

32900-32E10

$1,078.95

17

BOLT

02162-0620B

$2.19

18

NUT

08319-3106B

$2.47

19

RECTIFIER ASSY

32800-32E00

$309.67

20

BOLT

02162-0620B

$2.19
