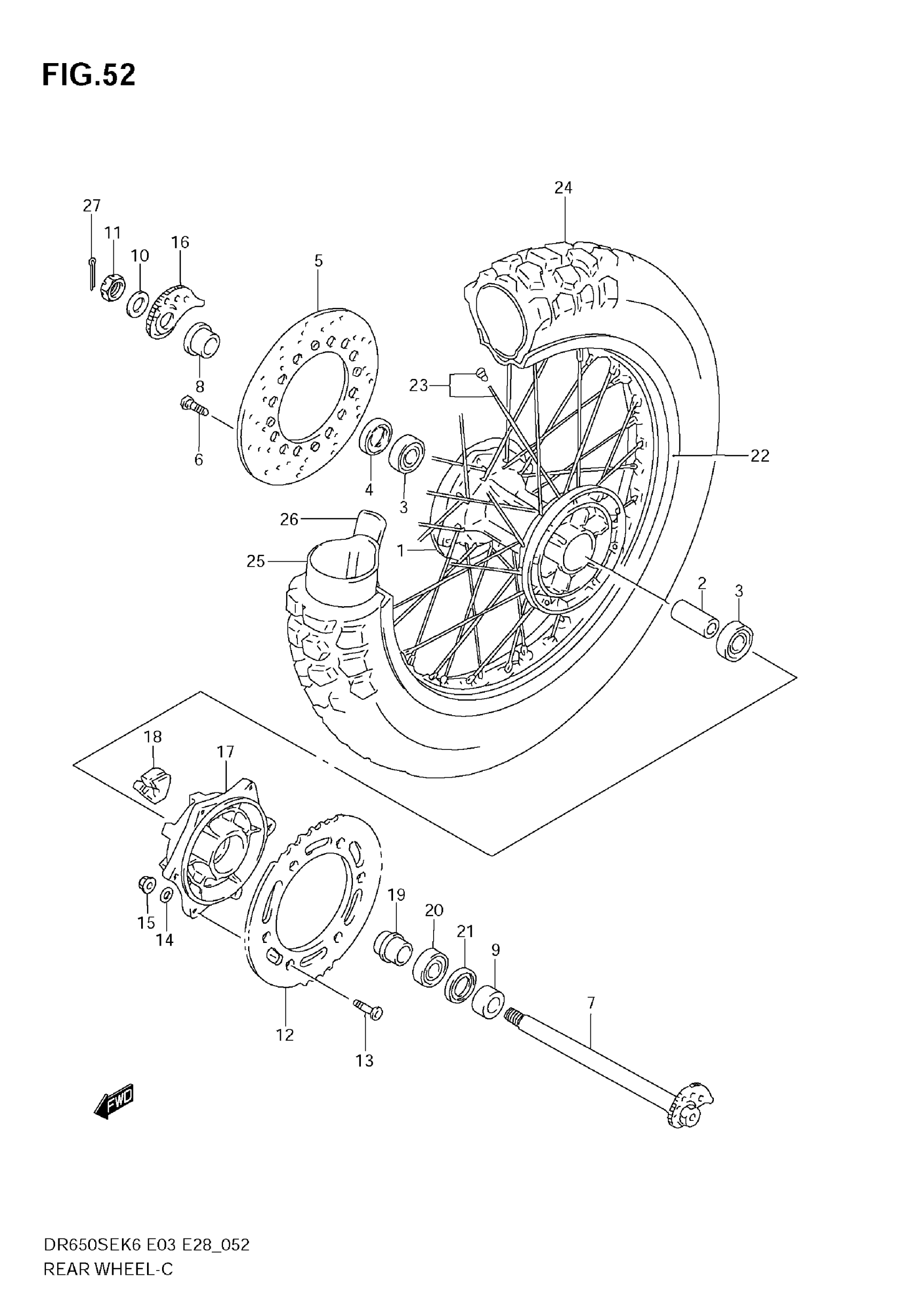

Suzuki DR650SE (2009) REAR WHEEL (MODEL K6/K7) Diagram

#

Description
Price

1

HUB,REAR WHEEL

64111-15D10

$535.48

2

SPACER, HUB BEARING

64731-15D00

$21.00

3

BEARING This part replaces 08123-62047.

08123-6204B

$15.93

4

OIL SEAL (26X47X5)

09283-26019

$10.63

5

DISC, REAR BRAKE

69211-32E01

$345.75

6

BOLT, DISC

09106-08155

$3.44

7

AXLE, REAR

64710-32E10

$157.03

8

SPACER, RH

64741-05D00

$16.79

9

SPACER, LH

64751-15D00

$21.57

10

WASHER

09160-19022

$4.42

11

NUT

08314-4018A

$4.19

12

SPROCKET, REAR (NT:42)

64511-32E00

$92.57

13

BOLT (8X30.5)

09120-08010

$2.39

14

WASHER

08322-0108B

$2.37

15

NUT

08319-3108A

$2.31

16

ADJUSTER, CHAIN, RH

61410-32E00

$24.82

17

DRUM,REAR SPROCKET MOUNTING

64611-15D01

$200.33

18

ABSORBER,REAR HUB SHOCK

64651-32E00

$11.25

19

RETAINER, SPROCKET DRUM

64733-15D00

$28.34

20

BEARING (25X52X15)

09262-25061

$29.88

21

OIL SEAL (34X52X6)

09283-34003

$8.50

22

RIM, REAR WHEEL (MT2.50X17)

65311-32E01

$543.37

23

SPOKE SET,REAR WHEEL

65320-32E00

$111.05

24

TIRE,REAR This part replaces 65110-32E00.

65110-32E01

$87.47

25

TUBE ASSY, WHEEL INNER

65200-32E00

$71.13

26

PROTECTOR,WHEEL INNER TUBE This part replaces 65261-32E00.

65261-32E01

$9.25

27

PIN, COTTER

04111-4030A

$1.37
