Description

Price

1

CYLINDER ASSY,REAR MASTER | Includes Item(s) 2 - 9

69600-32E00

$312.98

2

.PISTON/CUP SET This part replaces 69600-04820.

69600-04821

$32.27

3

.BOOT

69691-00A00

$5.30

4

YOKE

69692-13E00

$16.65

5

ROD, PUSH

69670-27A30

$26.23

6

NUT

69693-05A00

$1.96

7

CONNECTOR

69672-00B20

$7.01

8

O RING

69686-34200

$2.93

9

CIRCLIP

69674-00B20

$3.97

10

SCREW(6X16) This part replaces 09139-06067.

09139-06237

$2.38

11

PIN

09200-08048

$2.92

12

WASHER

09160-08090

$2.39

13

COTTER PIN

04111-2015A

$1.49

14

TANK ASSY, REAR RESERVOIR | Includes Item(s) 15 - 17

69740-03D00

$75.90

15

DIAPHRAGM

69667-00B20

$15.68

16

PLATE

69668-00B20

$7.67

17

CAP

69669-03D00

$22.65

18

BOLT

01550-0616B

$2.48

19

GUARD,RSVR TANK CAP

69743-14D10

$6.88

20

HOSE,RESERVOIR TANK

69730-32E00

$49.22

21

CLAMP, HOSE

09401-12404

$2.34

22

HOSE,REAR BRAKE This part replaces 69480-32E01.

69480-32E02

$64.22

23

BOLT, UNION (10X1.25X22)

09360-10062

$6.43

24

WASHER (10X15X1.5)

09161-10009

$1.84

25

GUIDE RR BRAKE (HOLE 1-5.5) This part replaces 61196-27C30.

61196-27C50

$6.17

26

SCREW

02142-0510B

$1.78

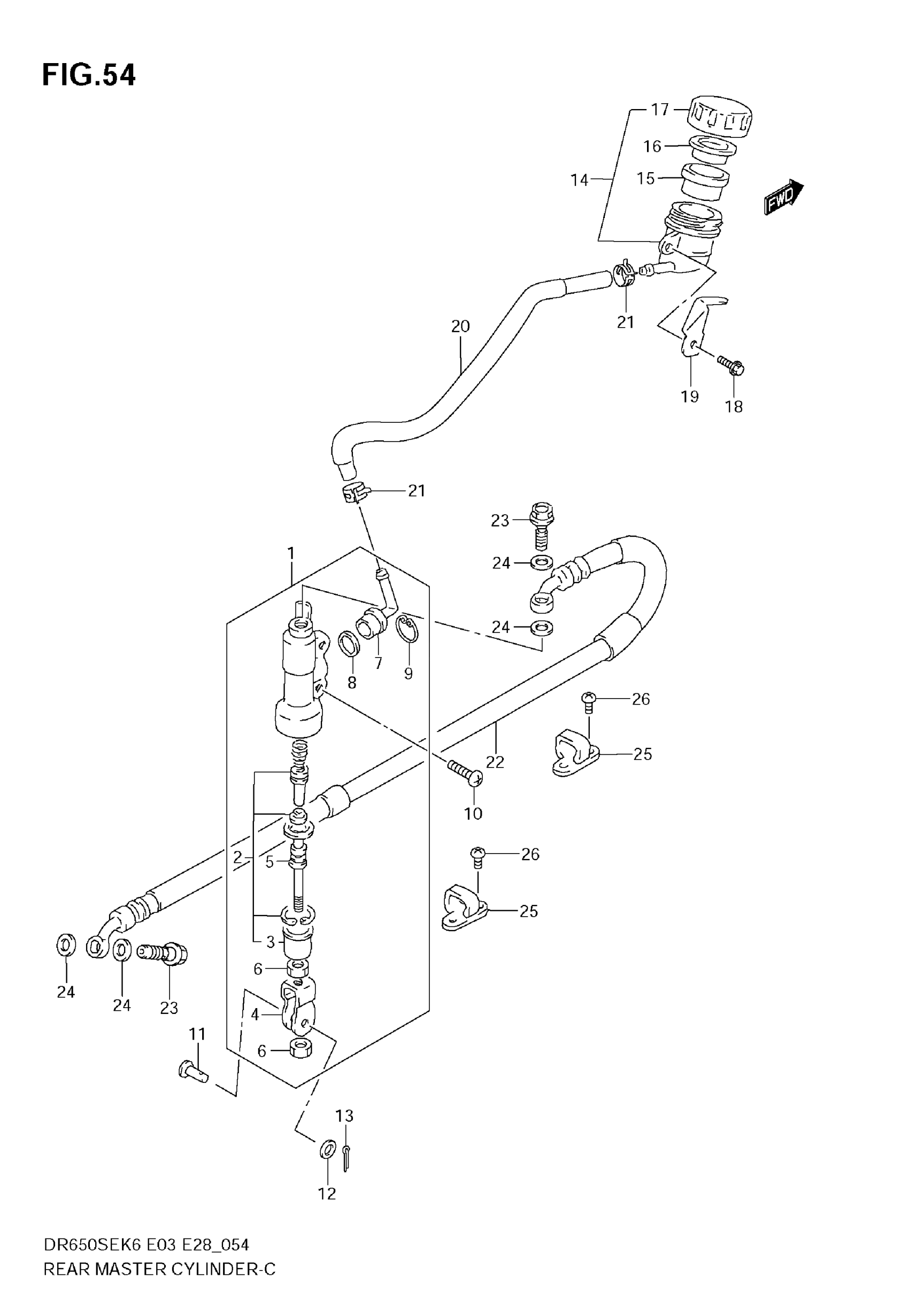

Suzuki DR650SE (2009) REAR MASTER CYLINDER Diagram
