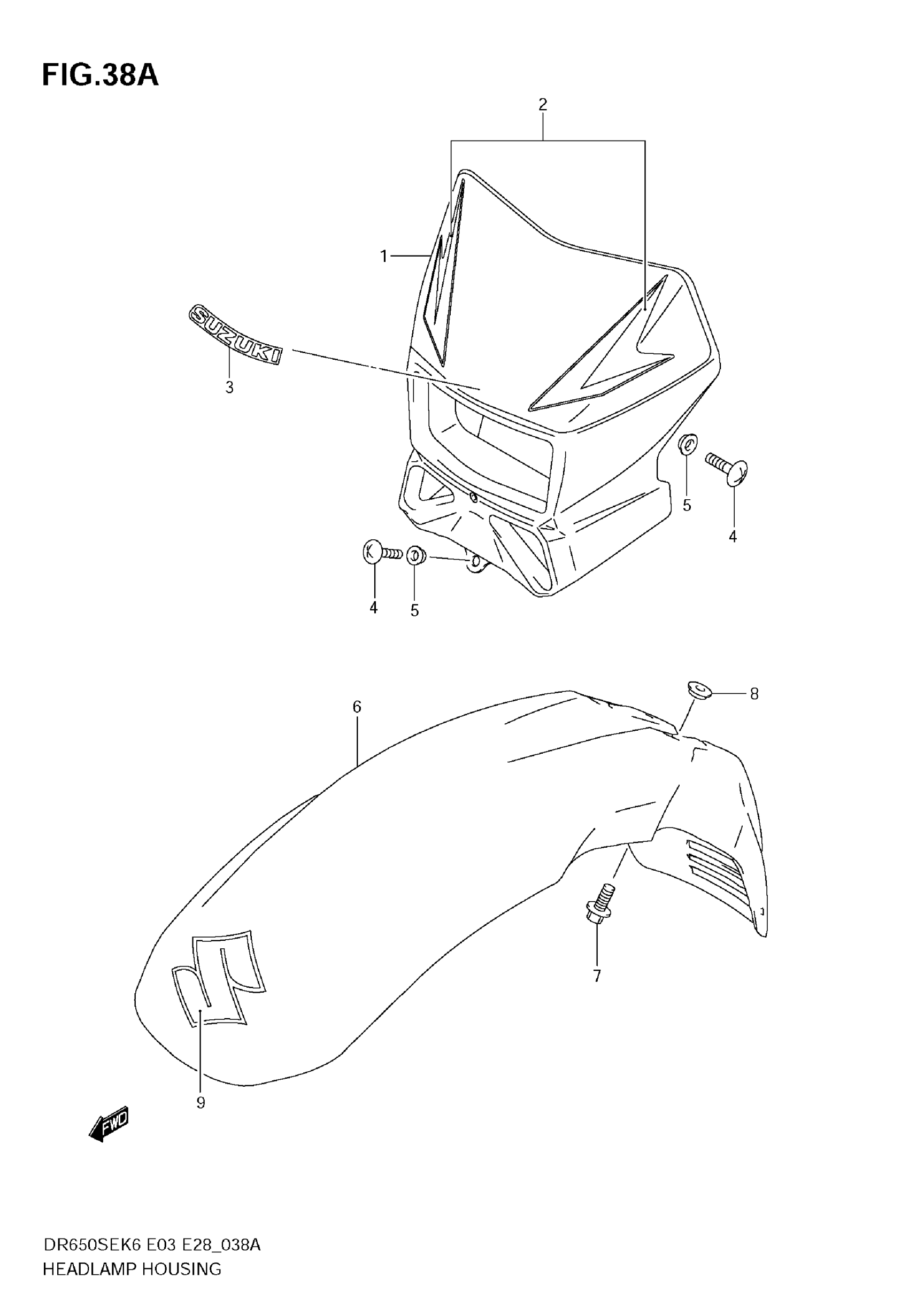

Suzuki DR650SE (2009) HEADLAMP HOUSING (MODEL K9) Diagram

#

Description

Price

1

COVER, HEAD LAMP (BLACK)

51811-29F50-019

$96.47

1

COVER HEADLAMP (WHITE)

51811-29F50-30H

$116.87

2

TAPE SET | FOR 019

68720-32E00-GJF

Unavailable

2

TAPE SET,HEADLA | FOR 30H This part replaces 68720-32E00-GJE.

68720-32E01-GJE

$33.55

3

EMBLEM,"SUZUKI" This part replaces 68281-01H00-YD8.

68281-01H01-YD8

$11.35

4

SCREW, COVER SIDE

02142-0612A

$1.49

5

WASHER, COVER SIDE

09169-06071

$2.50

6

FENDER,FRONT (BLACK)

53111-13E00-019

$130.23

6

FENDER,FRONT (WHITE)

53111-13E00-30H

$159.40

7

BOLT

09116-06170

$2.50

8

WASHER

09169-06073

$3.42

9

EMBLEM,S(SILVER This part replaces 68151-07G10-YD8.

68151-07G11-YD8

$11.60
