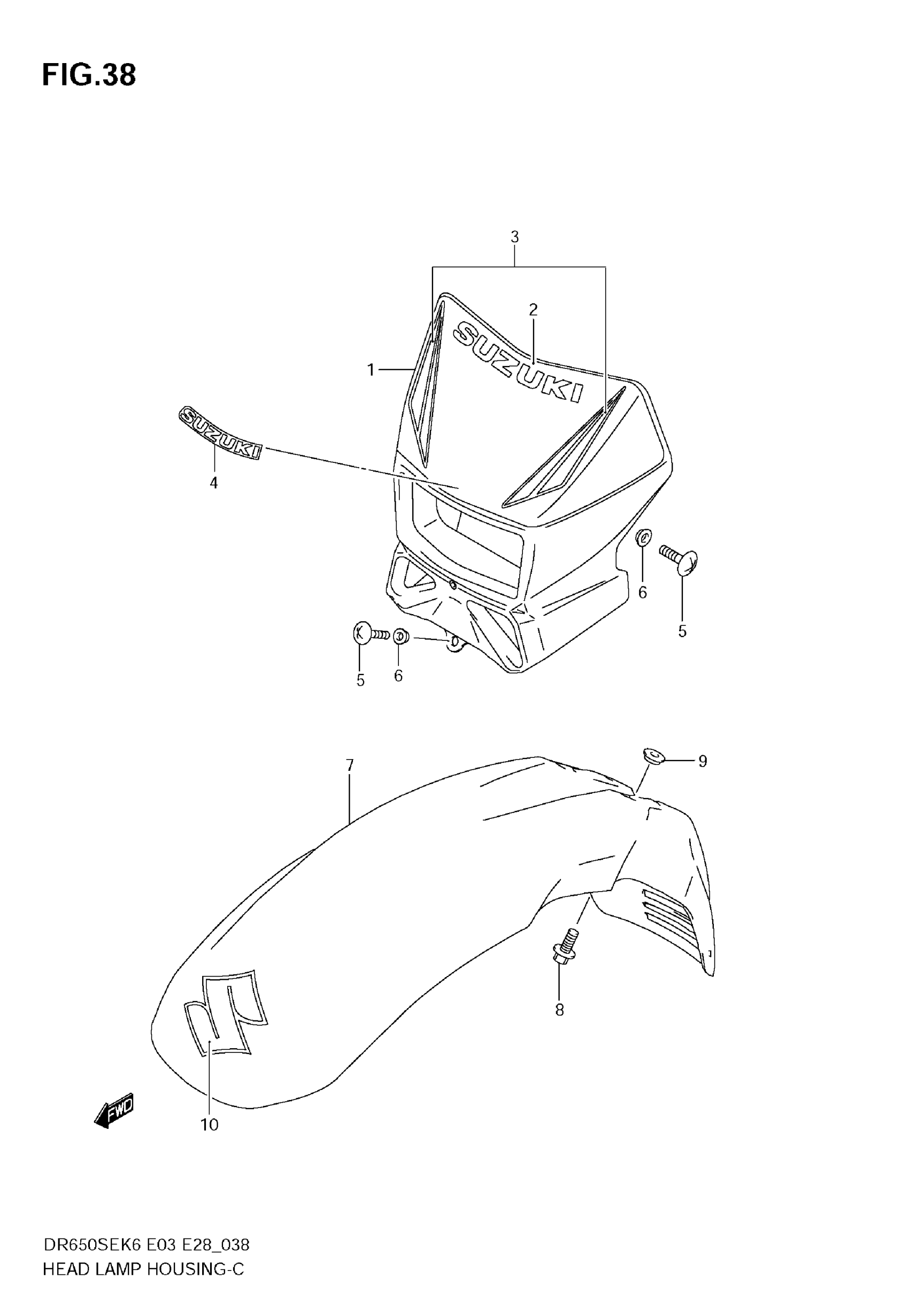

Suzuki DR650SE (2009) HEADLAMP HOUSING (MODEL K6/K7/K8) Diagram

#

Description
Price

1

COVER, HEAD LAMP (BLUE) | MODEL K6 FOR N9J

51811-29F10-YJ4

$121.43

1

COVER, HEADLAMP (YELLOW) | MODEL K6 FOR YU1 This part replaces 51811-29F10-YU1.

51811-29F50-YU1

$116.87

1

COVER, HEAD LAMP (BLUE) | MODEL K7 FOR NJ9 MODEL K8 FOR YKY

51811-29F50-YLW

$121.43

1

COVER, HEAD LAMP (BLACK) | MODEL K7/K8 FOR 019

51811-29F50-019

$96.47

2

TAPE | MODEL K6 FOR YJ4

68725-29F30-8YM

$76.20

2

TAPE | MODEL K6 FOR YU1

68725-29F30-CLM

Unavailable

2

TAPE | MODEL K7

68725-29F30-8YM

$76.20

3

TAPE SET | MODEL K8 FOR 019

68720-29F70-CNS

Unavailable

3

TAPE SET | MODEL K8 FOR YKY

68720-29F70-EVN

Unavailable

4

EMBLEM,"SUZUKI" | MODEL K8 This part replaces 68281-01H00-YD8.

68281-01H01-YD8

$11.35

5

SCREW, COVER SIDE

02142-0612B

$2.05

6

WASHER, COVER SIDE

09169-06071

$2.50

7

FENDER, FRONT (BLUE) | MODEL K6 FOR N9J

53111-13E00-YJ4

Unavailable

7

FENDER, FRONT (YELLOW) | MODEL K6 FOR YU1

53111-13E00-YU1

$135.22

7

FENDER, FRONT (BLUE) | MODEL K7 FOR N9J MODEL K8

53111-13E00-YLW

Unavailable

7

FENDER,FRONT (BLACK) | MODEL K7/K8 FOR 019

53111-13E00-019

$130.23

8

BOLT

09116-06170

$2.50

9

WASHER

09169-06073

$3.42

10

EMLBEM "S" | MODEL K6/K7 This part replaces 68151-07G10-YCF.

68151-07G11-YCF

$15.95

10

EMBLEM,S(SILVER | MODEL K8 This part replaces 68151-07G10-YD8.

68151-07G11-YD8

$11.60
