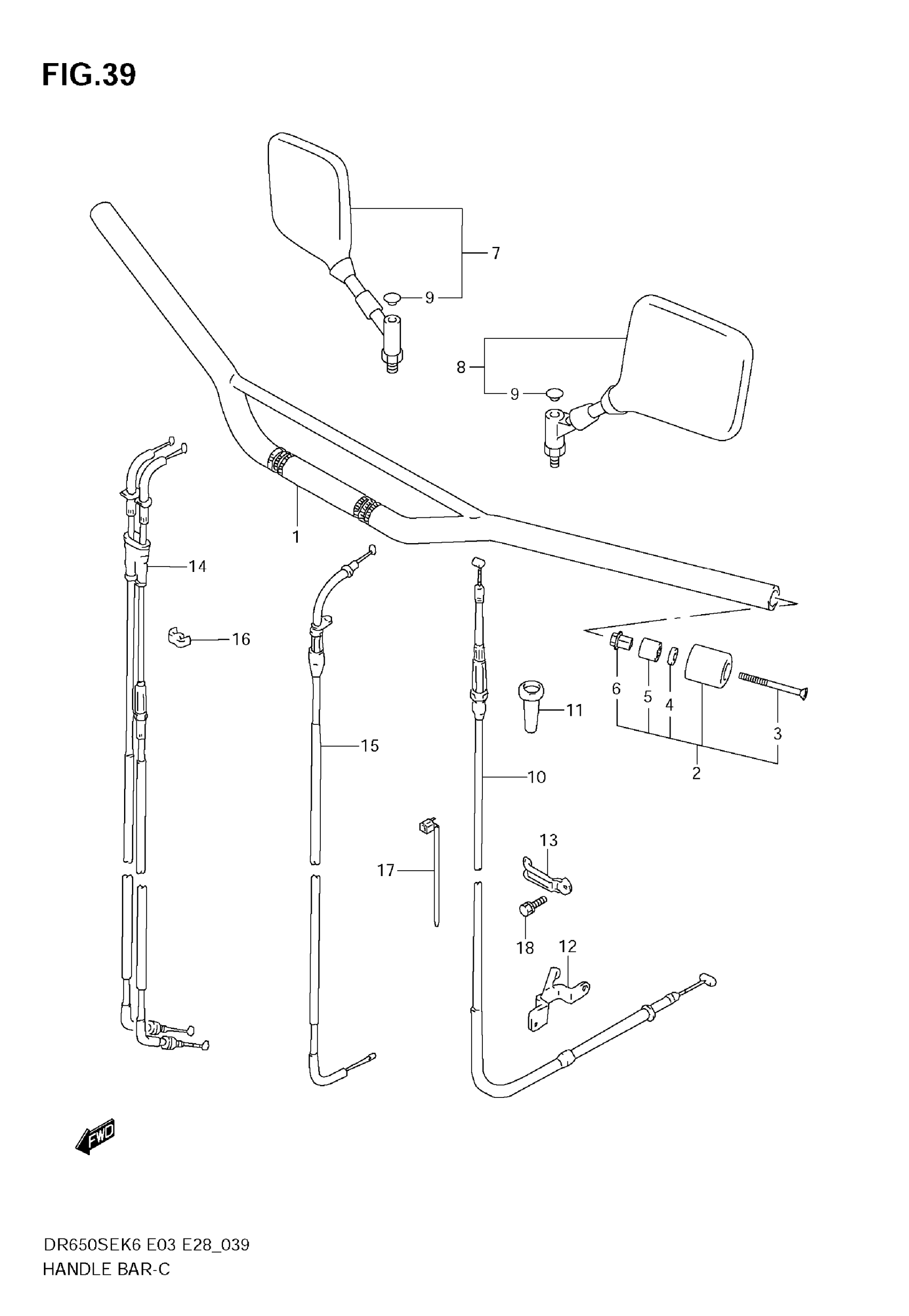

Suzuki DR650SE (2009) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR (BLACK)

56110-32E00-291

$147.54

2

BALANCER SET,HN | MODEL K6 This part replaces 56200-16820.

56200-16823

$32.93

2

BALANCER SET HANDLEBAR | MODEL K7/K8/K9; Includes Item(s) 3 - 6 This part replaces 56200-29831.

56200-29832

$29.00

3

SCREW

02122-0660B

$3.04

4

WASHER

09160-06131

$2.50

5

.EXPANDER,HANDLE BALANCER | MODEL K6 This part replaces 56272-10G00.

56272-10G01

$4.72

5

.EXPANDER HANDLE BALANCER | MODEL K7/K8/K9

56272-10G20

$5.98

6

NUT

56273-10G10

$8.65

7

MIRROR ASSY RR VIEW R | MODEL K6 This part replaces 56500-06G10.

56500-06G30

$156.05

7

MIRROR ASSY RR VIEW R | MODEL K7/K8/K9

56500-06G30

$156.05

8

MIRROR ASSY RR VIEW L | MODEL K6 This part replaces 56600-06G10.

56600-06G30

$156.05

8

MIRROR ASSY RR VIEW L | MODEL K7/K8/K9; Includes Item(s) 9

56600-06G30

$156.05

9

CAP This part replaces 56524-28600.

56524-28601

$4.63

10

CABLE ASSY,CLUTCH

58200-32E01

$38.37

11

BOOT, CLUTCH CABLE This part replaces 58273-31000.

58273-31001

$2.22

12

STOPPER,CLUTCH CABLE

58634-32E00

$15.00

13

CLAMP This part replaces 09403-09307.

09403-09328

$1.77

14

CABLE ASSY,THROTTLE

58300-32E00

$81.84

15

CABLE,STARTER

58410-32E00

$37.77

16

CLIP

09408-00066

$2.07

17

CLAMP

09407-25401

$4.66

18

BOLT, CLAMP

01550-0612B

$2.39
