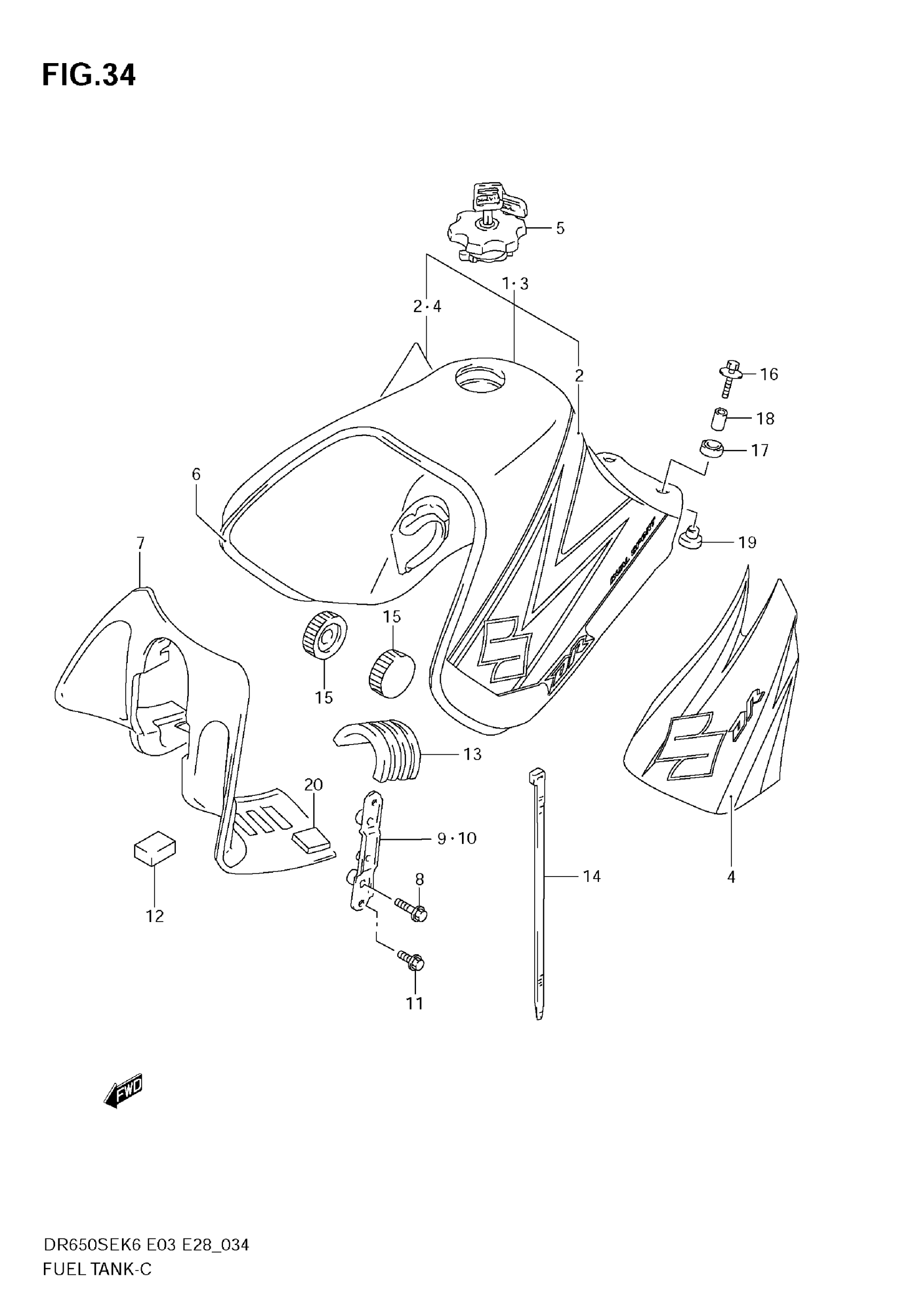

Suzuki DR650SE (2009) FUEL TANK (MODEL K6/K7) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLUE) | MODEL K6 FOR N9J

44100-32EK0-YC2

Unavailable

1

TANK ASSY, FUEL (YELLOW) | MODEL K6 FOR YU1

44100-32EK0-YU1

Unavailable

1

TANK ASSY, FUEL (BLUE) | MODEL K6 E33 FOR N9J

44100-32EL0-YC2

Unavailable

1

TANK ASSY, FUEL (YELLOW) | MODEL K6 E33 FOR YU1; Includes Item(s) 2 - 2

44100-32EL0-YU1

Unavailable

2

TAPE SET, FUEL TANK | MODEL K6 FOR YC2

68110-32E90-CLK

Unavailable

2

TAPE SET, FUEL TANK | MODEL K6 FOR YU1

68110-32E90-CET

Unavailable

3

TANK ASSY, FUEL (BLUE) | MODEL K7 FOR N9J

44100-32EM0-YC2

Unavailable

3

TANK ASSY, FUEL (BLACK) | MODEL K7 FOR 019

44100-32EM0-019

Unavailable

3

TANK ASSY, FUEL (BLUE) | MODEL K7 E33 FOR N9J

44100-32EN0-YC2

Unavailable

3

TANK ASSY, FUEL (BLACK) | MODEL K7 E33 FOR 019; Includes Item(s) 4 - 4

44100-32EN0-019

Unavailable

4

TAPE SET, FUEL TANK | MODEL K7 FOR YC2

68110-32EA0-DVM

Unavailable

4

TAPE SET, FUEL TANK | MODEL K7 FOR 019

68110-32EA0-DWR

Unavailable

5

CAP SET,FUEL TA This part replaces 44200-13830.

44200-13831

$130.18

5

CAP SET,FUEL TA | E33 This part replaces 44200-05820.

44200-05822

$74.48

6

MOLDING,FUEL TANK

68241-32E00

$56.05

7

COVER,FUEL TANK,FRONT

44271-32E00

$57.77

8

BOLT, FRONT COVER

09116-06210

$2.47

9

BRACKET, FRONT COVER RH

44280-32E00

Unavailable

10

BRACKET, FRONT COVER LH

44290-32E00

Unavailable

11

BOLT, BRACKET

01550-0625A

$1.97

12

CUSHION

51827-01A00

$6.17

13

CUSHION, UPPER REAR

44541-13E00

$16.65

14

CLAMP

09407-25402

$4.64

15

CUSHION,FUEL TANK,FRONT

44511-12D00

$6.93

16

BOLT, REAR

09116-06214

$2.50

17

CUSHION, UPPER

09320-14022

$3.63

18

SPACER

09180-06271

$2.35

19

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

20

CUSHION, TANK COVER

44831-17B00

$6.70
