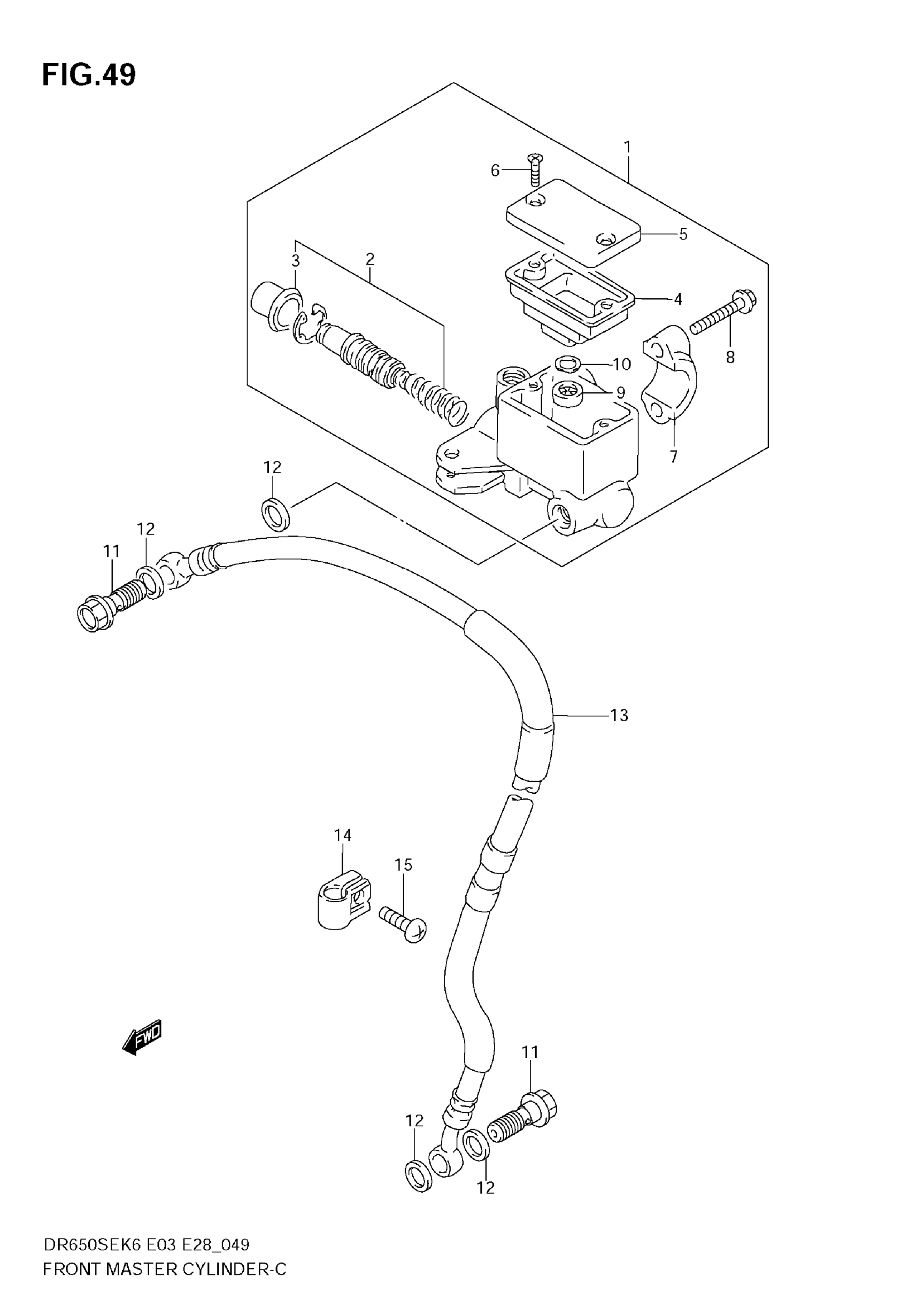

Suzuki DR650SE (2009) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER | Includes Item(s) 2 - 10

59600-31D01

$234.57

2

PISTON/CUP SET

59600-04810

$41.38

3

BOOT

59666-44300

$5.30

4

DIAPHRAGM

59667-44B00

$8.95

5

CAP

69669-24A01

$14.23

6

SCREW

69689-49300

$1.81

7

.HOLDER

59671-36500

$11.50

8

BOLT

59675-02FA0

$3.49

9

SEPARATOR

59748-15400

$8.83

10

PLATE

59749-15400

$2.80

11

BOLT (10X1.25X22)

09360-10062

$5.81

12

WASHER (10X15X1.5)

09161-10009

$1.83

13

HOSE,FRONT BRAKE

59480-32E01

$168.98

14

CLAMP BRAKE HOSE This part replaces 58621-07A10.

58621-07A20

$3.83

15

SCREW

02142-0620B

$1.81
