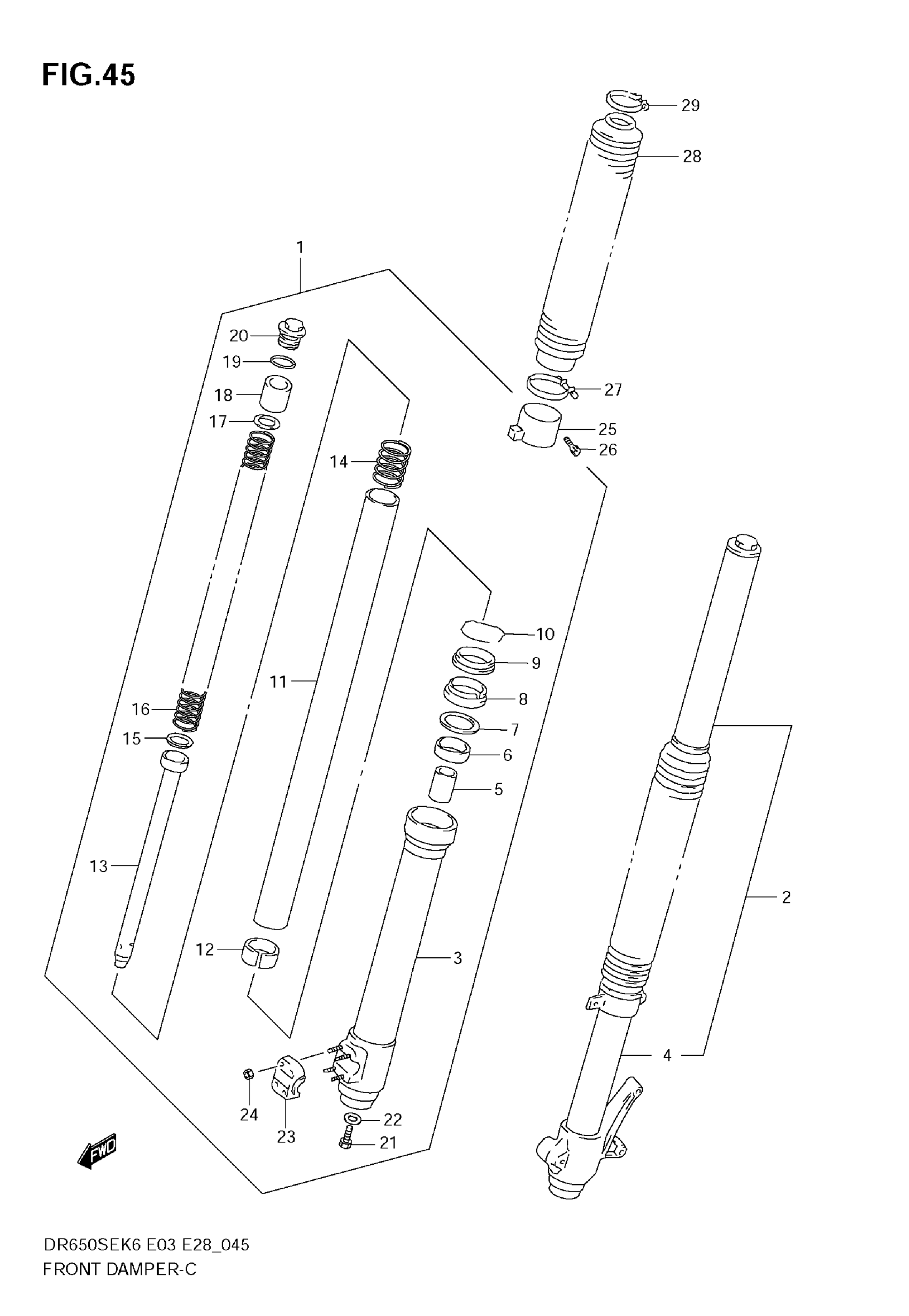

Suzuki DR650SE (2009) FRONT DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-32E00

Unavailable

2

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 3 - 24

51104-32E00

Unavailable

3

TUBE, OUTER RH

51130-32E00

$615.05

4

TUBE, OUTER LH

51140-32E00

$615.05

5

PIECE, OIL LOCK

51195-06C00

$16.76

6

METAL, SLIDE

51167-40C00

$16.13

7

WASHER

51158-14200

$5.05

8

SEAL, OIL

51153-14330

$13.63

9

SEAL, DUST

51173-14330

$10.53

10

RING, SNAP

51156-14200

$5.05

11

TUBE, INNER

51110-32E00

$583.83

12

PISTON

51121-40C00

$21.09

13

CYLINDER

51190-32E00

Unavailable

14

SPRING

51177-14330

$10.32

15

RING

51196-31D00

$7.51

16

SPRING

51171-32E00

Unavailable

17

WASHER

51172-32E00

$5.70

18

SPACER

51176-32E00

$40.33

19

.O RING This part replaces 51117-14200.

51117-14201

$2.47

20

CAP

51351-31D00

$65.60

21

BOLT

51147-16510

$4.34

22

GASKET

51148-41310

$2.26

23

HOLDER, AXLE RH

51132-32E00

$63.30

24

NUT

08316-10067

$2.25

25

GUIDE,BOOT This part replaces 51203-32E00.

51203-32E01

$40.00

26

BOLT

07130-05207

$3.03

27

BAND,BOOT,LOWER

51576-00B00

$12.48

28

BOOT,FRONT FORK This part replaces 51571-32E00-019.

51571-32E01

$64.43

29

BAND,BOOT

51575-32E00

$15.83
