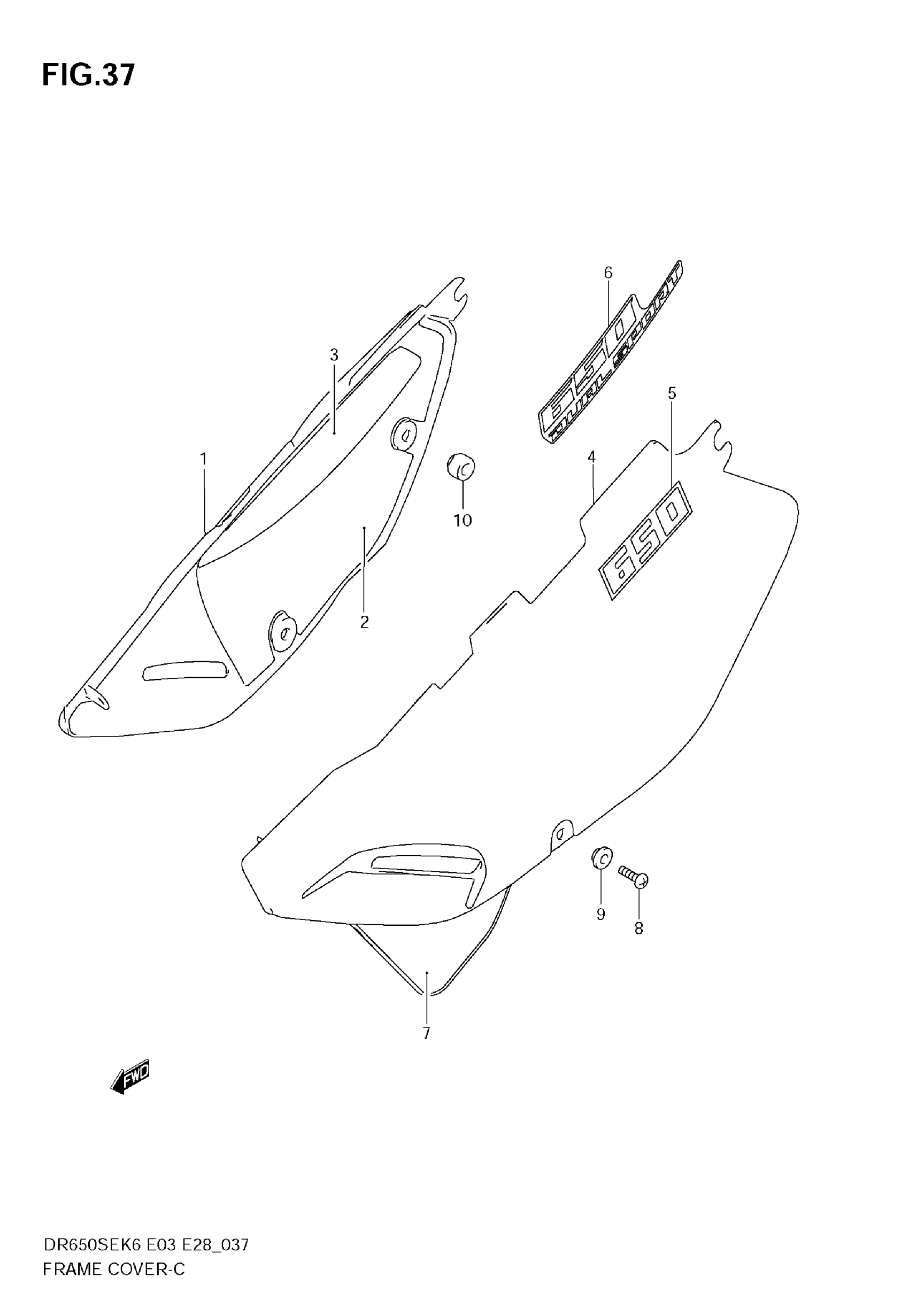

Suzuki DR650SE (2009) FRAME COVER (MODEL K6/K7) Diagram

#

Description

Price

1

COVER,FRAME RH (WHITE) | MODEL K6 This part replaces 47111-32E00-30H.

47111-32E10-30H

$137.28

1

COVER,FRAME RH (WHITE) | MODEL K7

47111-32E10-30H

$137.28

2

SHIELD,FRAME COVER,R,NO.1

47166-32E00

$50.69

3

SHIELD,FRAME COVER,R,NO.2

47167-32E00

$23.65

4

COVER,FRAME LH (WHITE) | MODEL K6 This part replaces 47211-32E00-30H.

47211-32E10-30H

$137.28

4

COVER,FRAME LH (WHITE) | MODEL K7

47211-32E10-30H

$137.28

5

EMBLEM | MODEL K6 FOR N9J

68131-32E20-8YM

$16.78

5

EMBLEM | MODEL K6 FOR YU1

68131-32E20-CLM

Unavailable

6

EMBLEM | MODEL K7

68131-32E30-DVN

$17.90

7

TAPE, NO.2, LH

68146-32E00

$15.08

8

SCREW

02142-06167

$1.49

9

WASHER This part replaces 09169-06028.

09169-06041

$2.20

10

CUSHION, MUFFLER

09321-10019

$4.90
