Description

Price

1

CRANKSHAFT SET | Includes Item(s) 2 - 7

12000-32820

$1,105.70

2

ROD, CONNECTING

12161-32E00

$157.58

3

PIN, CRANK

12211-32E00

$86.03

4

BEARING (37X47X25)

09263-37004-0C0

$53.23

5

WASHER

09160-37006

$10.58

6

CRANKSHAFT SET, RH

12221-32810

Unavailable

7

CRANKSHAFT, LH

12261-32E00

Unavailable

8

BEARING, RH (40X80X18)

09262-40008

$68.27

9

BEARING, LH

09262-45011

$88.02

10

OIL SEAL (16X30X6)

09282-16002

$9.60

11

PLATE, RH

12548-37400

$6.37

12

SCREW

02112-0508B

$1.86

13

NUT,CRANKSHAFT BRG LH

12664-04F00

$48.38

14

GEAR, PRIMARY DRIVE (NT:28)

21111-32E00

$76.63

15

NUT

09140-20013

$4.26

16

LOCK WASHER

09164-20003

$3.85

17

KEY, GEAR

09420-05007

$4.60

18

PISTON

12111-32E00-0F0

$99.08

19

RING SET,PISTON

12140-32E10

$50.63

20

PIN, PISTON

12151-14A01

$23.40

21

CIRCLIP

09381-23003

$1.49

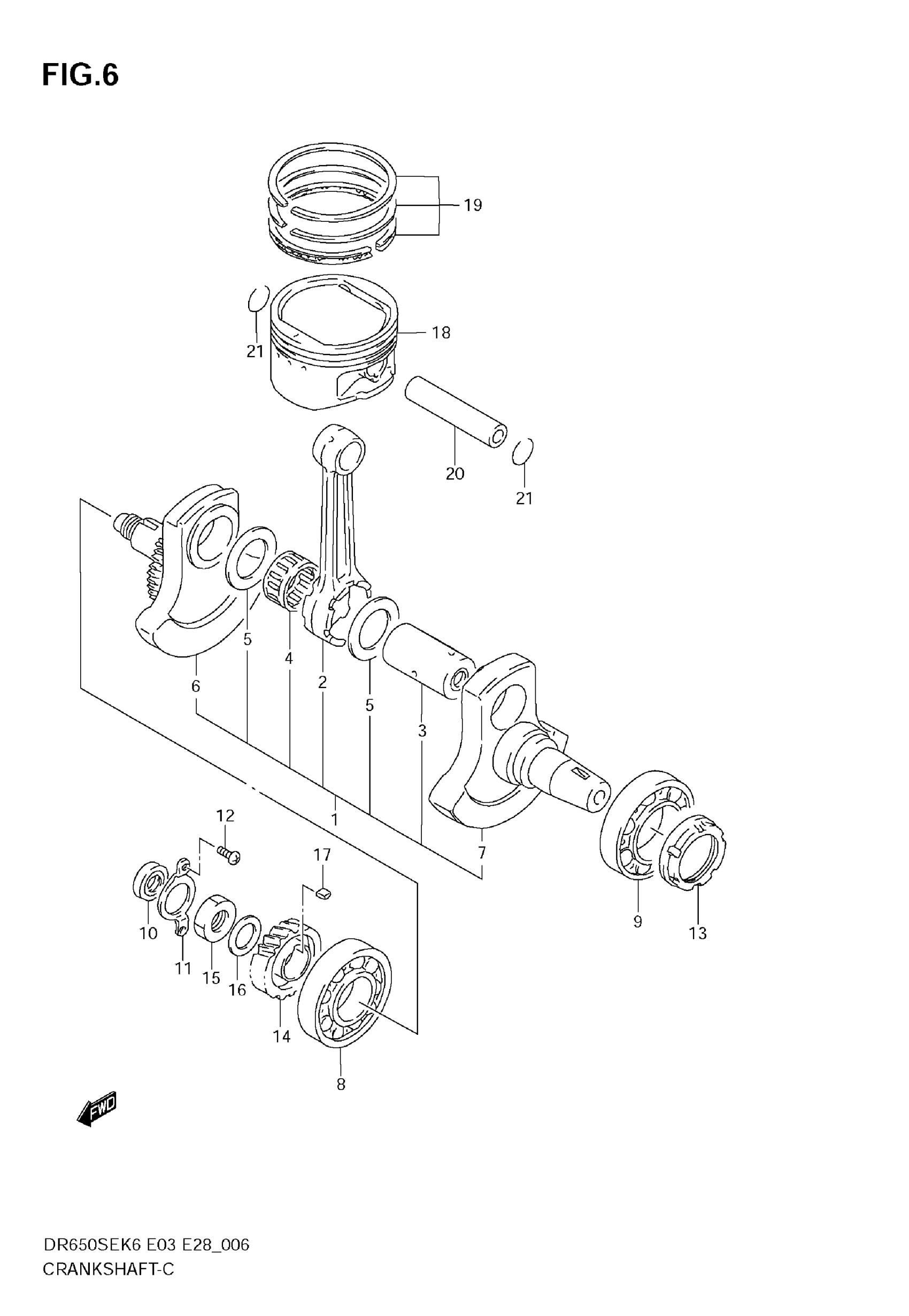

Suzuki DR650SE (2009) CRANKSHAFT Diagram
