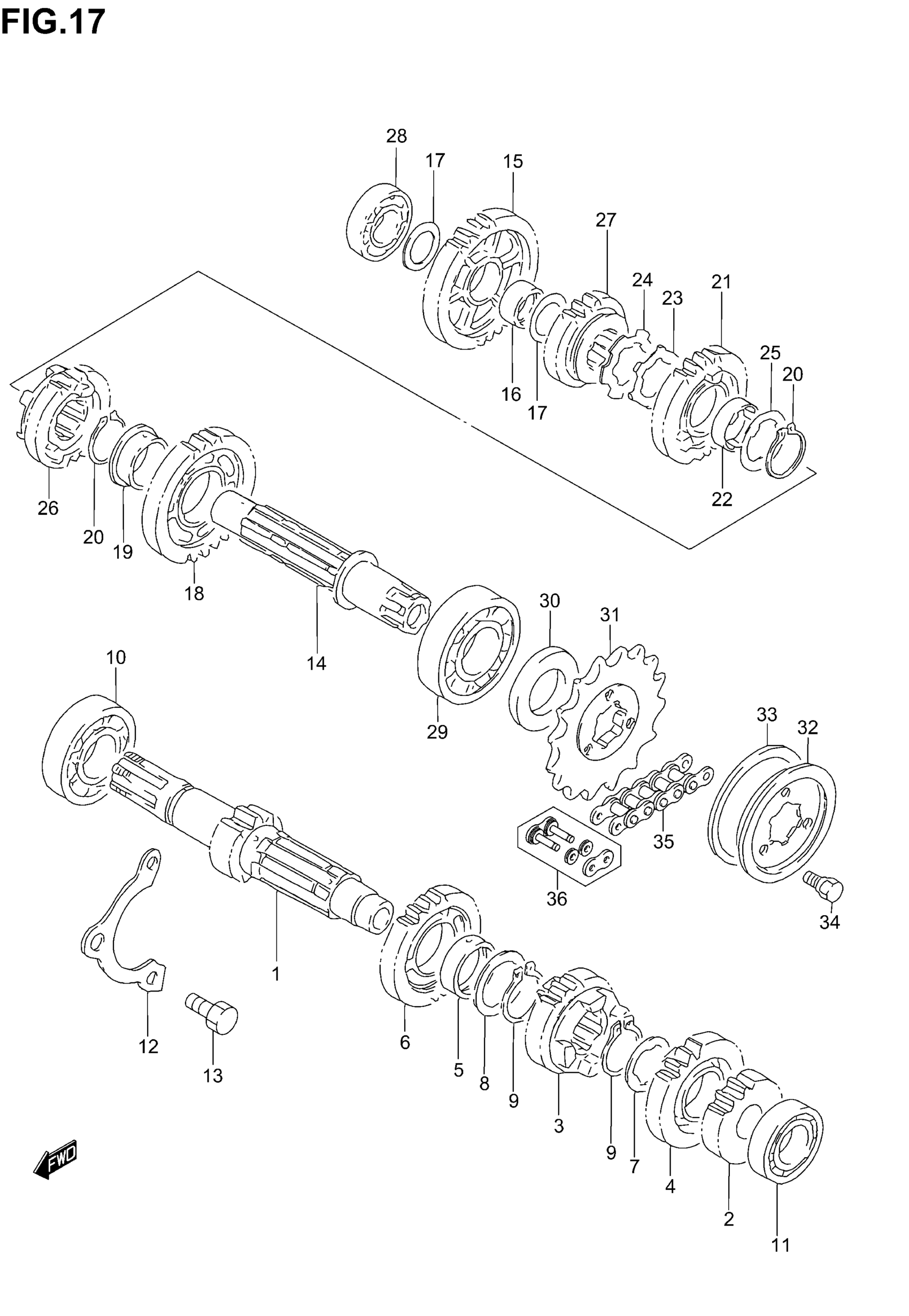

Suzuki DR650SE (2005) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT (NT:12)

24120-14810

$268.15

2

GEAR, 2ND DRIVE (NT:16)

24221-14A10

$115.77

3

GEAR, 3RD DRIVE This part replaces 24231-12D20.

24231-12D21

$119.72

4

GEAR, 4TH DRIVE (NT:21)

24241-14A10

$115.77

5

BUSH, 5TH

24252-19F00

$17.12

6

GEAR, 5TH DRIVE (NT:23)

24251-14A10

$111.52

7

WASHER LOCK (25.1X31X1.0)

09167-25012

$3.70

8

WASHER (25X34X1.0)

09181-25167

$3.12

9

SNAP RING

09380-25003

$3.04

10

BEARING, RH (22X56X16)

09262-22028

$77.48

11

BEARING, CNTR SHAFT LH This part replaces 09262-17045.

09262-17046

$38.05

12

RETAINER,CNTR SHAFT BRG

24741-14A00

$9.17

13

PLUG, DRAIN This part replaces 01500-08163.

01500-0816B

$2.50

14

DRIVE SHAFT

24130-14A10

$202.92

15

GEAR, 1ST DRIVEN (NT:29)

24311-14A01

$113.18

16

BUSH

09300-20032

$17.50

17

WASHER (20X30X1.0)

09181-20195

$2.60

18

GEAR, 2ND DRIVEN (NT:26)

24321-14A10

$115.77

19

BUSH

09301-25002

$18.35

20

SNAP RING

09380-25003

$3.04

21

GEAR, 3RD DRIVEN (NT:26)

24331-14A20

$119.72

22

BUSH

24332-24510

$18.67

23

WASHER

09169-25001

$2.70

24

WASHER,LOCK (25.1X41X1.5)

09167-25013

$3.30

25

WASHER

09167-25016

$3.72

26

GEAR, 4TH DRIVEN (NT:21)

24341-14A10

$96.59

27

GEAR, 5TH DRIVEN (NT:19)

24351-14A10

$111.52

28

BEARING, RH (20X42X12)

09262-20059

$25.60

29

BEARING (25X62X17) This part replaces 09262-25083.

09262-25125

$59.09

30

OIL SEAL, LH (25X44X7)

09283-25096

$10.62

31

SPROCKET (NT:15)

27511-31D00

$37.27

32

PLATE (YELLOW)

27512-44B00

$6.49

33

DAMPER

27517-37400

$14.20

34

BOLT

09111-06039

$6.02

35

CHAIN, DRIVE This part replaces 27600-32C10-110.

27600-32C90-110

$231.82

36

.JOINT SET, CHAIN | OPT This part replaces 27620-32C10.

27620-32C90

$15.42
