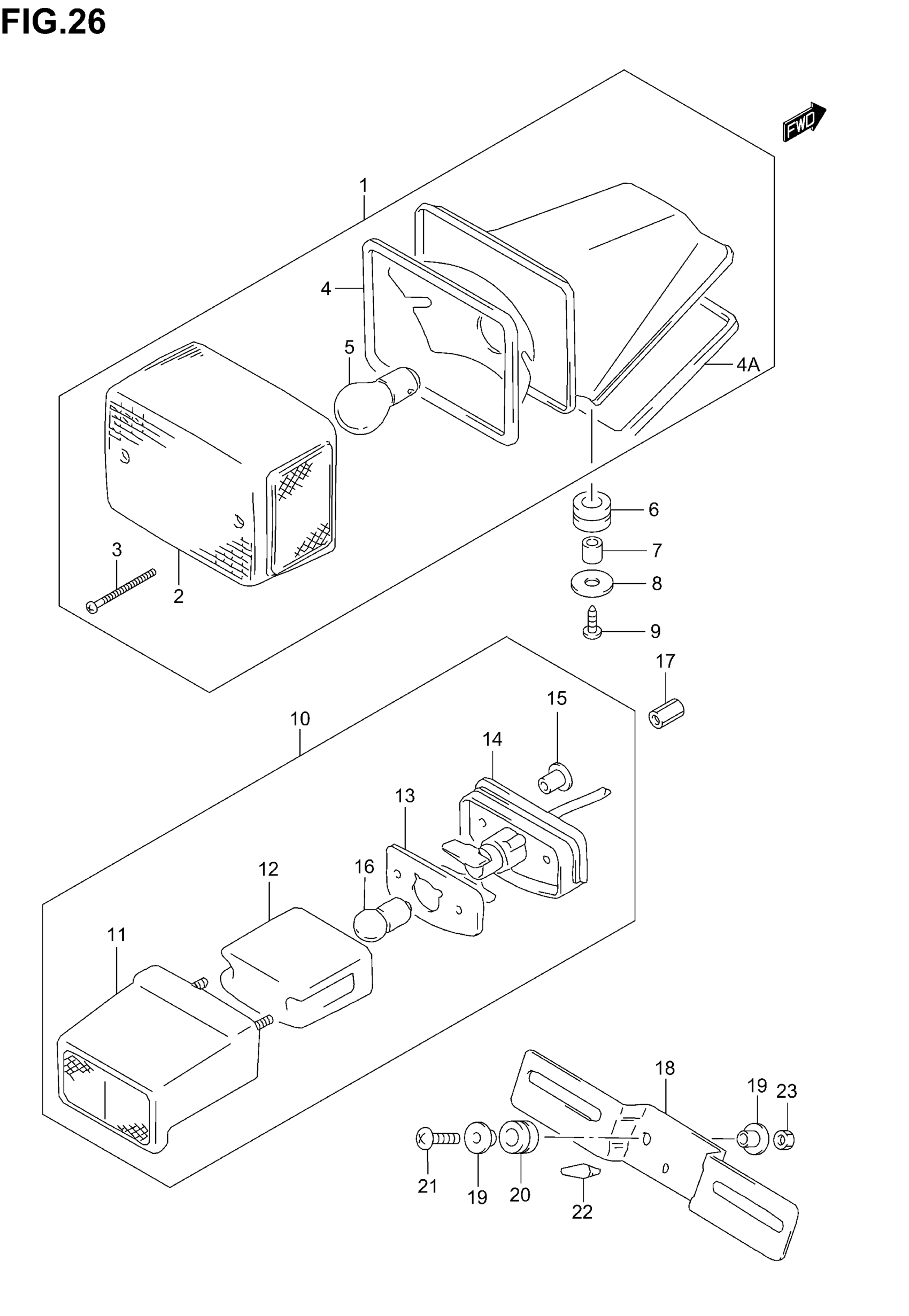

Suzuki DR650SE (2005) TAIL LAMP Diagram

#

Description
Price

1

LAMP ASSY,REAR COMB | Includes Item(s) 2 - 5

35710-32E30

$153.40

2

LENS

35712-14D30

$62.32

3

SCREW (4X45)

09125-04501

$3.16

4

.GASKET LENS | FOR LENS

35713-14D30

$7.88

4A

GASKET | FOR BASE

35717-32E30

$5.73

5

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.73

6

CUSHION

09320-09016

$1.97

7

SPACER (6.1X8X9.5)

09180-06248

$2.12

8

.WASHER (6.5X20X1.6)

09160-06088

$1.65

9

SCREW This part replaces 02142-06253.

02142-0625A

$1.49

10

LAMP ASSY,LICENSE | Includes Item(s) 11 - 16

35910-32E30

$177.13

11

COVER, LENS

35917-17C00

$77.50

12

LENS

35912-38A30

$20.45

13

GASKET

35913-38A30

$3.37

14

CUSHION

35761-24B31

Unavailable

15

SPACER

35766-24B30

$3.37

16

BULB (12V5W) This part replaces 09471-12140.

09471-12058

$2.33

17

NUT, LICENSE LAMP

09140-04006

$4.86

18

BRACKET,LICENSE PLATE

35927-26E30

$14.20

19

WASHER

09169-06073

$3.42

20

CUSHION

09320-09016

$1.97

21

SCREW This part replaces 02142-06253.

02142-0625A

$1.49

22

CUSHION

09321-06023

$2.50

23

NUT This part replaces 08310-00063.

08310-0006A

$1.84
