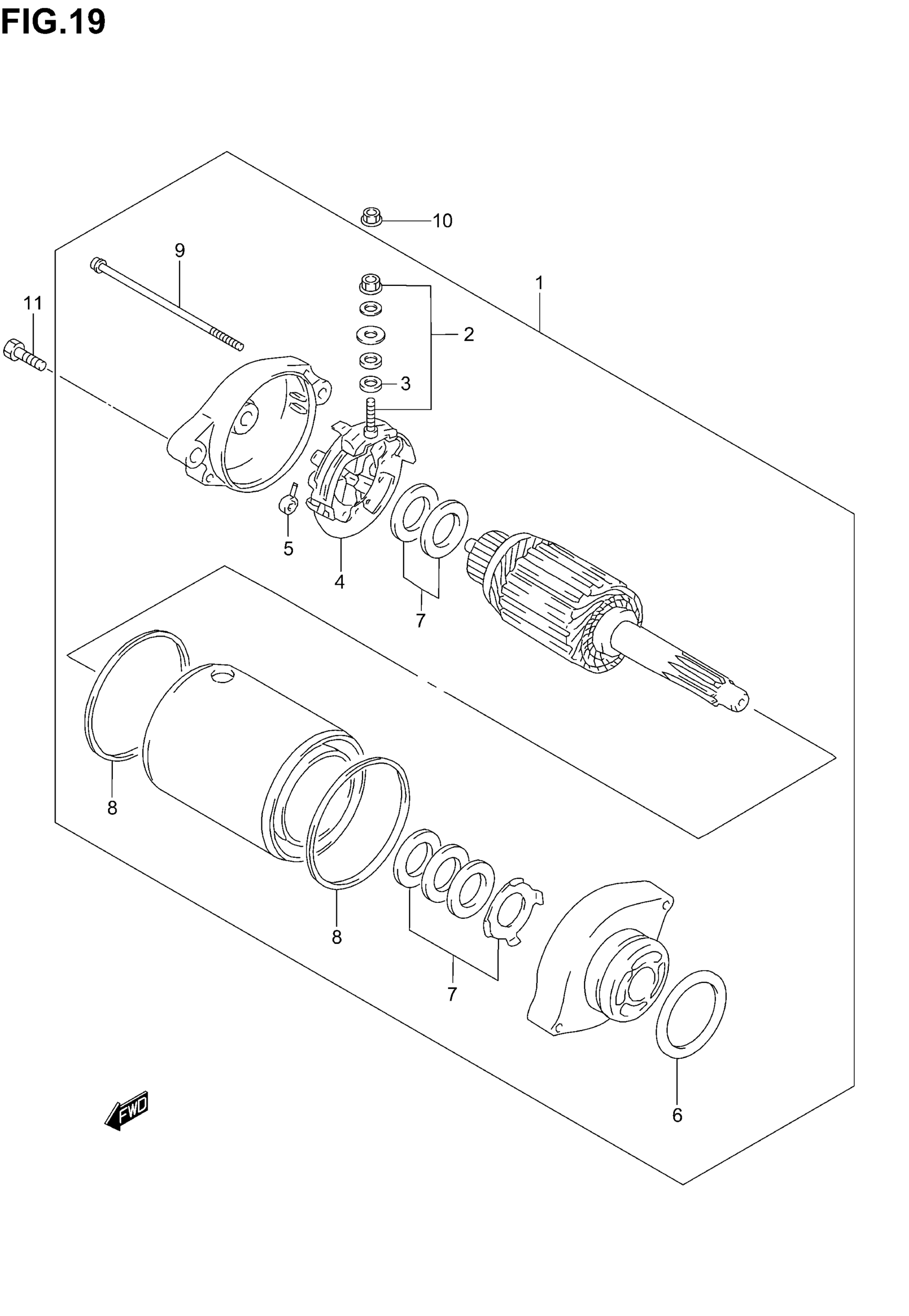

Suzuki DR650SE (2005) STARTING MOTOR Diagram

#

Description

Price

1

MOTOR ASSY,STARTING | Includes Item(s) 2 - 9

31100-32E01

$593.55

2

TERMINAL SET, BRUSH

31130-38B00

$69.35

3

O RING

31143-49040

$3.71

4

HOLDER SET, BRUSH

31132-38B00

$69.35

5

SPRING, BRUSH

31135-38B00

$5.40

6

O RING

31156-48B00

$12.02

7

WASHER SET

31170-32E00

Unavailable

8

O RING This part replaces 31264-31300.

31264-32E00

$6.68

9

BOLT

31280-26D00

$20.45

10

NUT This part replaces 08361-35068.

08361-3506A

$1.80

11

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

$2.73
