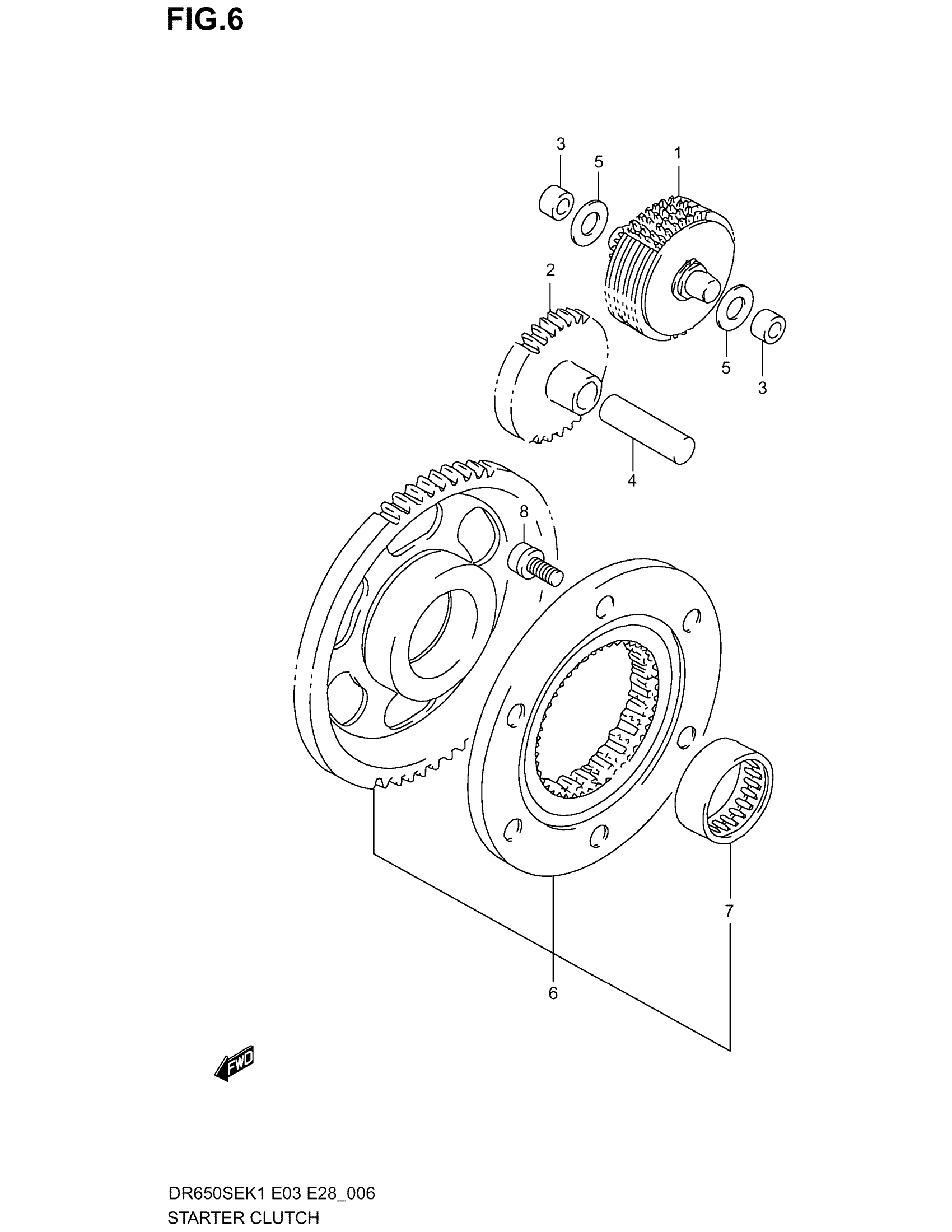

Suzuki DR650SE (2005) STARTER CLUTCH Diagram

#

Description

Price

1

LIMITER ASSY, STARTER IDLE GEAR (NT:44) This part replaces 12600-12D00.

12600-12D01

$262.28

2

GEAR, STARTER IDLE NO.2 (NT:27)

12612-12D01

$83.65

3

BUSH LIMITER GEAR SHAFT

12618-31D01

$22.62

4

PIN This part replaces 09202-12002.

09206-12006

$9.43

5

WASHER

08211-10221

$2.28

6

CLUTCH SET, STARTER | Includes Item(s) 7

12600-09860

$347.67

7

BEARING (31X39X17.8)

09263-31009

$47.00

8

BOLT This part replaces 07130-08203.

07130-0820B

$3.49
