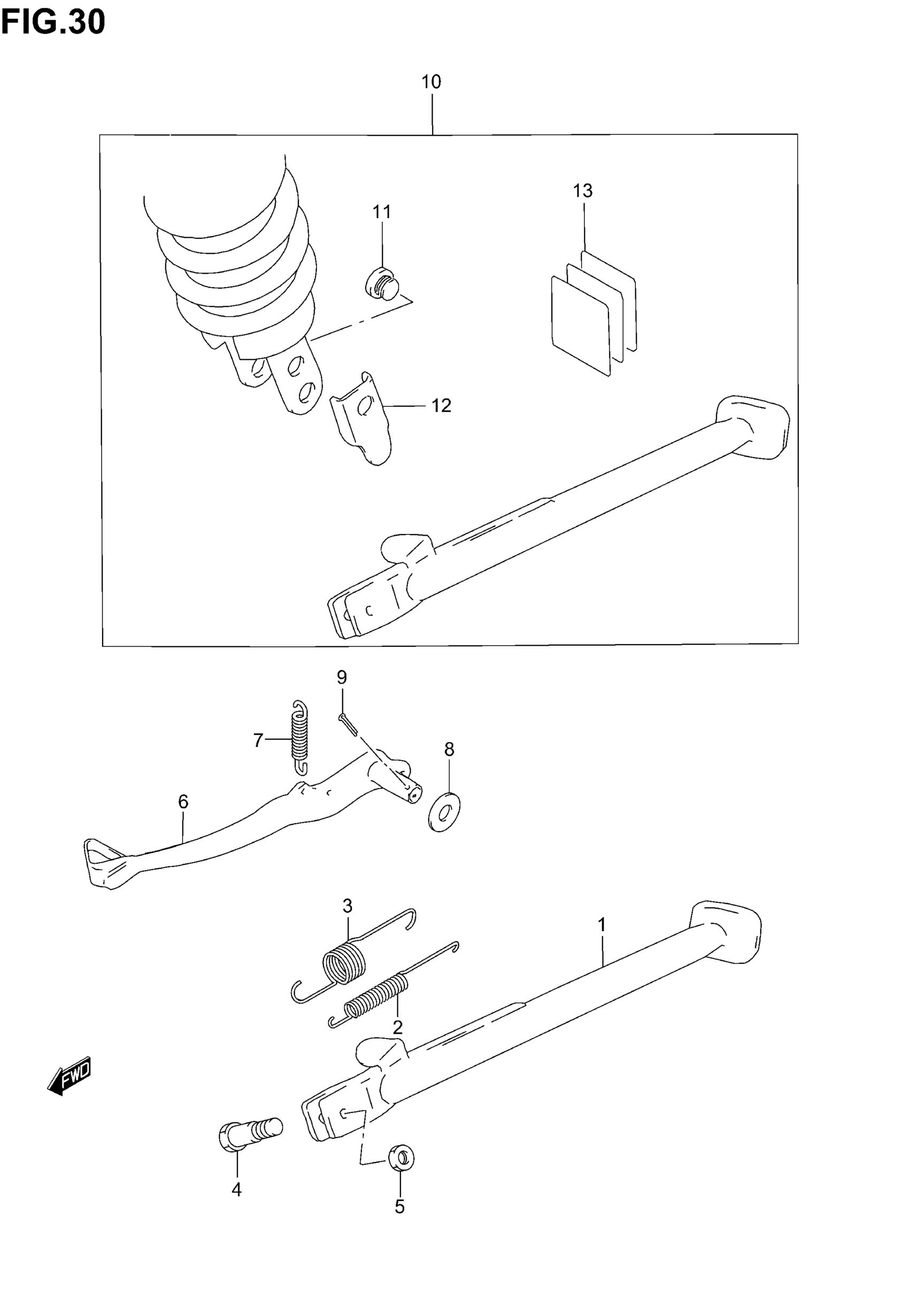

Find the part on the Stand - Rear Brake diagram for your 2005 Suzuki DR650SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki DR650SE Stand - Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND, PROP

42310-32E20

1
Out of stock

2

SPRING, INNER

09443-12045

1
Out of stock

3

SPRING, OUTER

09443-19010

1

$6.41

In stock

4

BOLT

09111-10047

1
Out of stock

5

NUT

09159-10097

1
Out of stock

6

PEDAL,BRAKE

43110-32E00

1
Out of stock

7

SPRING, RETURN

09443-11030

1
Out of stock

8

WASHER

09160-15049

1
Out of stock

9

PIN This part replaces 04111-30308.

04111-3030A

1
Out of stock

10

STAND SET, PROP (L0W) | OPT,MODEL K1; Includes Item(s) 11 - 13

42300-32820

1
Out of stock

11

PLUG (10X5) | OPT,MODEL K1

09248-10006

1
Out of stock

12

PLATE | OPT,MODEL K1

62184-32E00

1
Out of stock

13

LABEL SET, WARNING | OPT,MODEL K1

68380-32E10

1
Out of stock
