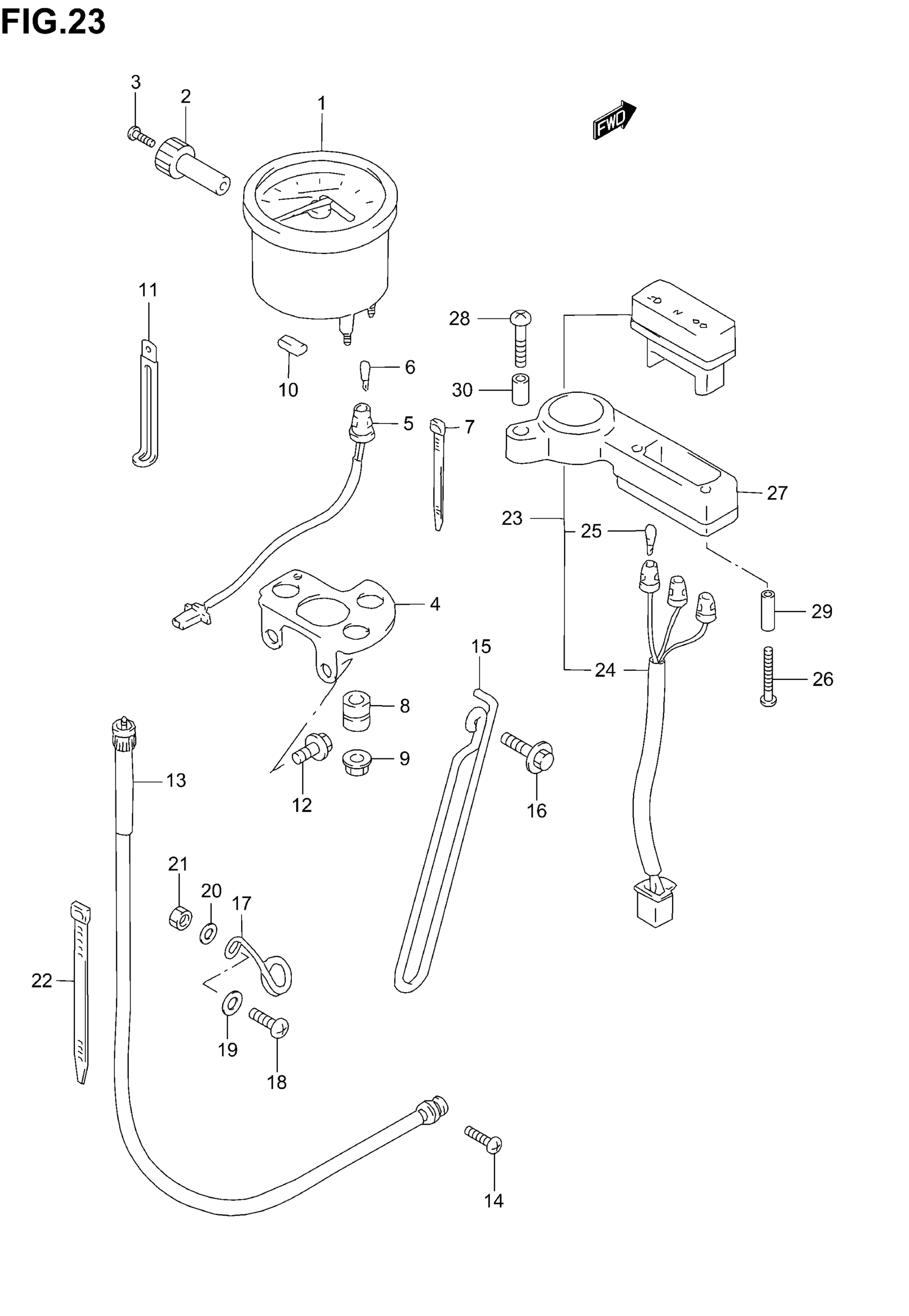

Suzuki DR650SE (2005) SPEEDOMETER Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO)

34120-32E02

$489.68

1

SPEEDOMETER (KILO) | E28

34120-32E12

Unavailable

2

KNOB, TRIP

34124-44B30

$10.80

3

SCREW, TRIP KNOB

34184-12D00

$2.93

4

BRACKET,METER

34950-32E10

$37.53

5

SOCKET

34170-15D21

$21.12

6

.BULB (12V1.7W)

09471-12108

$3.42

7

CLAMP

34954-42A90

Unavailable

8

CUSHION

34189-30921

$3.41

9

NUT (M6)

09159-06076

$2.81

10

CUSHION

34161-03D00

Unavailable

11

CLAMP (L:97)

09404-10417

$2.72

12

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

13

CABLE ASSY SPEEDOMETER

34910-32E00

$41.17

14

.SCREW This part replaces 02112-05163.

02112-0516A

$1.49

15

GUIDE METER CABLE NO.2

34938-14D30

$10.63

16

BOLT (6X20)

09116-06167

$2.19

17

GUIDE, CABLE NO.1

34938-14D21

$8.65

18

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

19

WASHER (6.5X16X1.2)

09160-06109

$1.49

20

WASHER (6.3X16X1) This part replaces 09169-06054.

09169-06053

$1.49

21

NUT This part replaces 08310-00063.

08310-0006A

$1.84

22

CLAMP (L:125)

09407-14403

$2.26

23

BOX ASSY, PILOT LAMP | MODEL K1/K2

36380-32E20

Unavailable

23

BOX ASSY,PILOT LAMP | MODEL K3/K4/K5

36380-32E10

$175.98

23

BOX ASSY,PILOT LAMP | MODEL K1/K2/K3/K4/K5 E28; Includes Item(s) 24 - 25

36380-32E10

$175.98

24

SOCKET, PILOT BOX

36394-32E00

$44.48

25

BULB (13.5V,2W)

09471-12118

$2.46

26

SCREW This part replaces 03511-14353.

03511-1435B

$2.58

27

HOLDER,PILOT BOX

36382-32E00

$19.07

28

SCREW, PILOT BOX HOLDER

09139-06029

$5.36

29

SPACER (4.5X6.5X25)

09180-04024

$5.00

30

SPACER (6.1X8X15.5)

09180-06251

$2.44
